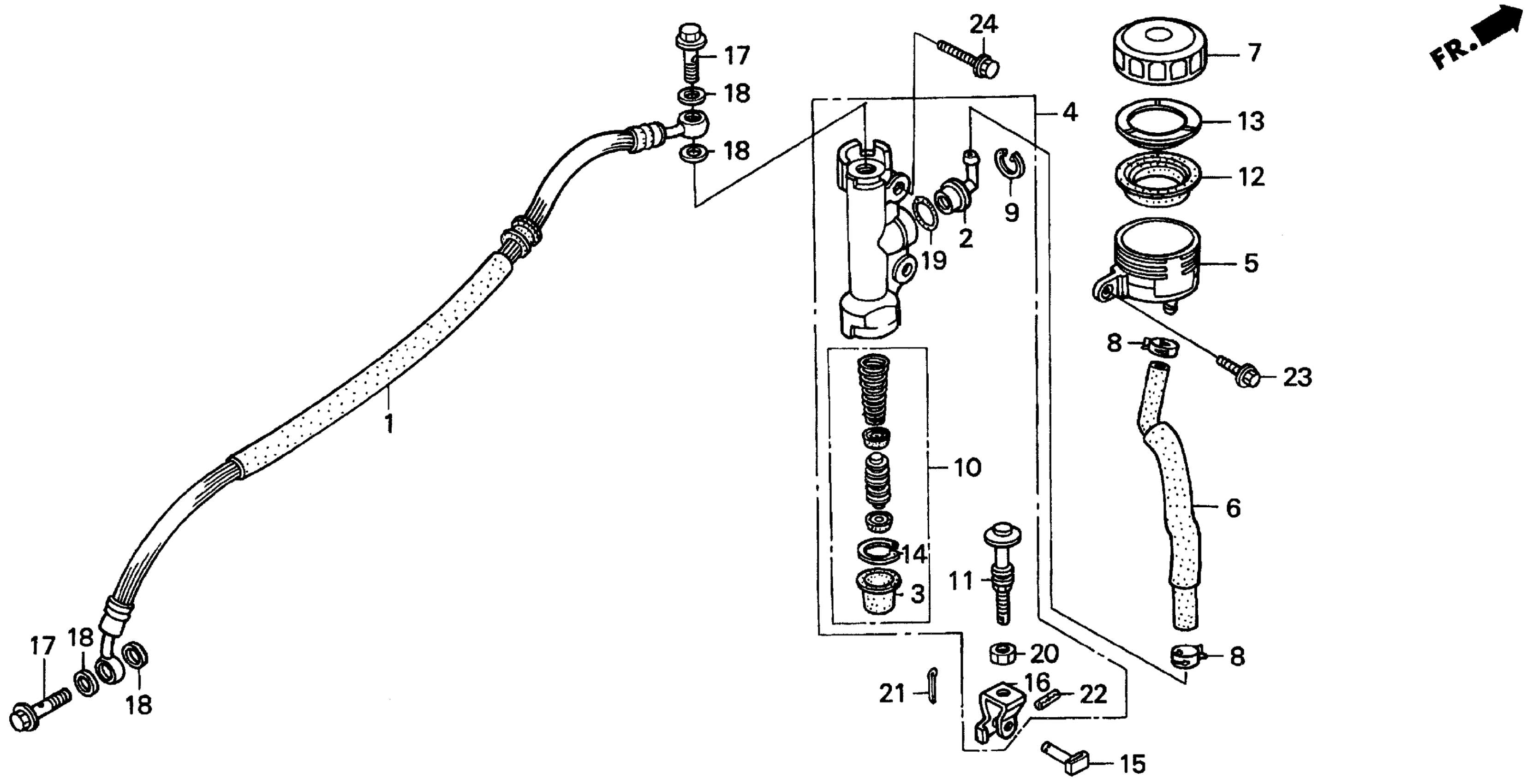

Honda CBR600F3A (97) MOTORCYCLE, JPN, VIN# JH2PC250-VM600001 RR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MAL-601

Unavailable

2

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$9.18

3

BOOT

43504-MB2-006

$9.24

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MAL-601

Unavailable

5

CUP, OIL

43511-MR7-016

$29.99

6

HOSE, MASTER CYLINDER

43512-MV9-000

Unavailable

7

CAP, OIL CUP

43513-MY1-006

$26.99

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

9

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.65

10

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$42.70

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$42.70

11

ROD, PUSH

43530-MV9-006

$32.63

12

DIAPHRAGM

45520-300-000

$8.34

13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

14

CIRCLIP

46182-500-013

$4.76

15

PIN, BRAKE ROD

46503-MAL-000

$5.54

16

JOINT, BRAKE ROD

46504-MAL-601

$12.38

17

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.99

17

BOLT, OIL (10X22)

90145-MS9-612

$6.99

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

O-RING (14.8X2.4)

91212-422-006

$2.37

20

NUT, HEX. (8MM)

94002-08000-0S

$1.31

21

PIN, SPLIT (2.0X12)

94201-20120

$1.04

22

PIN, SPRING (2X10)

94305-20102

$0.81

23

BOLT, FLANGE (6X20)

95701-06020-08

$0.40

24

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
