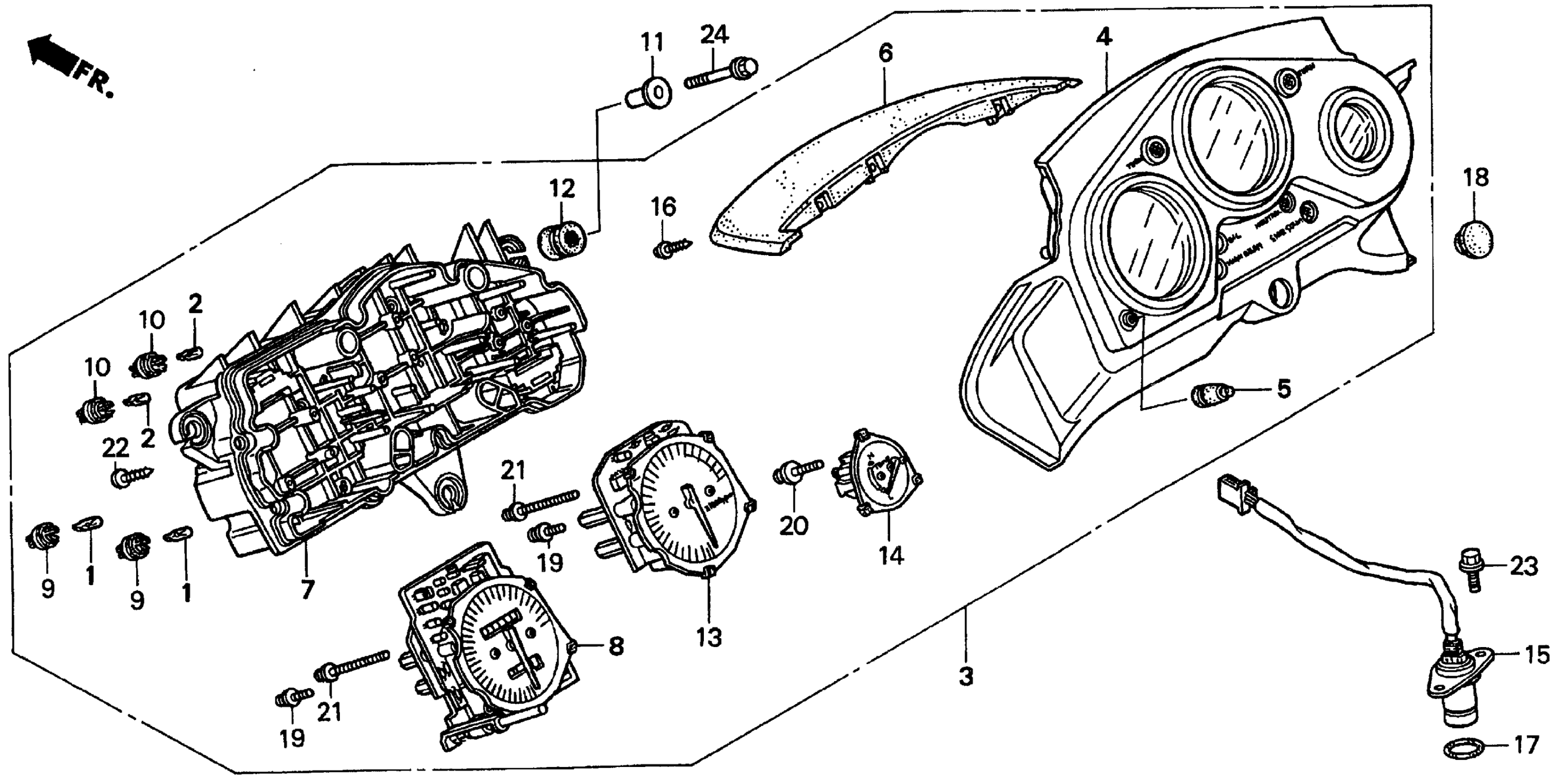

Honda CBR600F3A (97) MOTORCYCLE, JPN, VIN# JH2PC250-VM600001 METER Diagram

#

Description
Price

1

BULB, WEDGE BASE (1.7W HD)

34907-MAL-611

Unavailable

2

BULB, WEDGE BASE (12V3W)

34908-MAL-611

$5.23

3

METER ASSY., COMBINATION

37100-MAL-A01

Unavailable

4

CASE (UPPER) This part replaces 37110-MAL-A00.

37110-MAL-A01

Unavailable

4

CASE (UPPER)

37110-MAL-A01

Unavailable

5

COVER, KNOB

37111-MAL-611

Unavailable

6

VISOR

37113-MAL-611

Unavailable

7

CASE (LOWER)

37120-MAL-611

Unavailable

8

SPEEDOMETER ASSY. This part replaces 37200-MAL-A00.

37200-MAL-A01

Unavailable

8

SPEEDOMETER ASSY.

37200-MAL-A01

Unavailable

9

SOCKET (NOT AVAILABLE)

37206-MAL-611

$9.90

10

SOCKET

37207-MAL-611

Unavailable

11

COLLAR, SPEEDOMETER MOUNTING

37243-KV3-830

$6.15

12

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$5.12

13

TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37250-MAL-A00.

37250-MAL-A01

Unavailable

14

METER ASSY., TEMPERATURE This part replaces 37400-MAL-G00.

37400-MAL-G01

Unavailable

14

METER ASSY., TEMPERATURE

37400-MAL-G01

Unavailable

15

SENSOR ASSY., SPEED This part replaces 37700-MAL-601.

37700-MAL-602

Unavailable

15

SENSOR ASSY., SPEED

37700-MAL-602

Unavailable

16

SCREW, TAPPING (3X16)

90032-MAL-611

Unavailable

17

O-RING (18.1X3.6)

91302-MAL-601

$3.53

18

GROMMET, SIDE FRAME (20MM)

91606-SL0-000

$5.74

19

SCREW-WASHER (3X8)

93893-03008-00

Unavailable

20

SCREW-WASHER (3X14)

93893-03014-00

Unavailable

21

SCREW-WASHER (3X25)

93893-03025-00

Unavailable

22

SCREW, TAPPING (4X16)

93903-24410

$1.49

23

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

24

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
