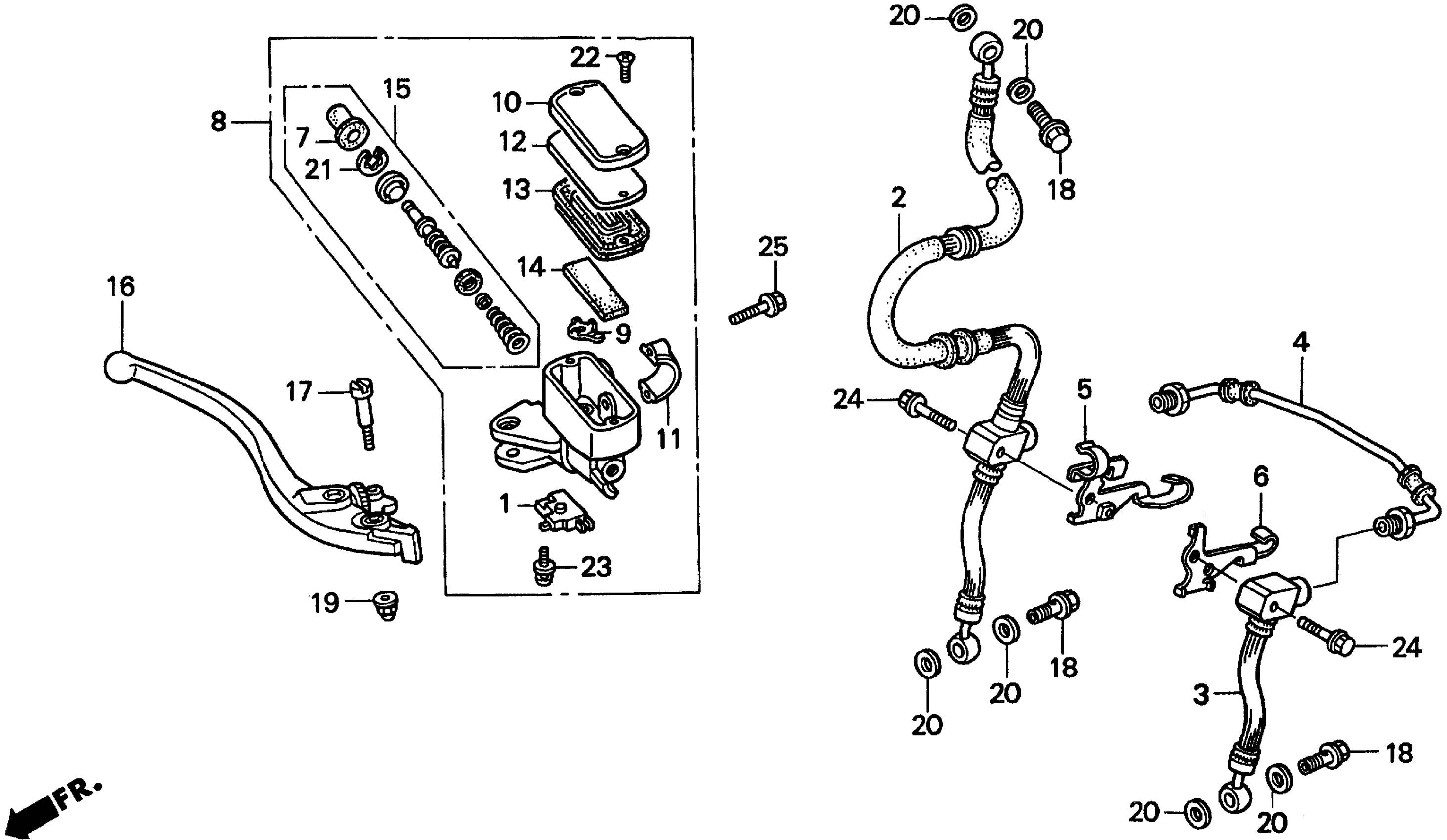

Honda CBR600F3A (97) MOTORCYCLE, JPN, VIN# JH2PC250-VM600001 FR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

2

HOSE, R. FR. BRAKE

45124-MAL-G01

Unavailable

3

HOSE, L. FR. BRAKE

45125-MAL-G01

Unavailable

4

PIPE, FR. BRAKE

45135-MAL-600

Unavailable

5

STAY, R. FR. BRAKE HOSE

45156-MAL-G00

Unavailable

6

STAY, L. FR. BRAKE HOSE

45157-MAL-600

Unavailable

7

BOOT

45504-410-003

$10.93

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MV9-305

Unavailable

9

PROTECTOR

45512-MA6-006

$3.99

10

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$20.12

10

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.12

11

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

12

PLATE, DIAPHRAGM

45518-MM5-006

$9.57

13

DIAPHRAGM

45520-MM5-006

$13.57

14

FLOAT, FR. MASTER CYLINDER (NOT AVAILABLE)

45523-MV9-006

Unavailable

15

MASTER CYLINDER SET

45530-471-831

Unavailable

16

LEVER ASSY., R. HANDLE

53170-MW0-006

$38.08

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

NUT, CAP

90201-428-900

$2.03

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

CIRCLIP

90651-MA5-671

$2.38

22

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

23

SCREW-WASHER (4X12)

93893-04012-07

$1.22

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

24

BOLT, FLANGE (6X28)

95801-06028-07

$1.70

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
