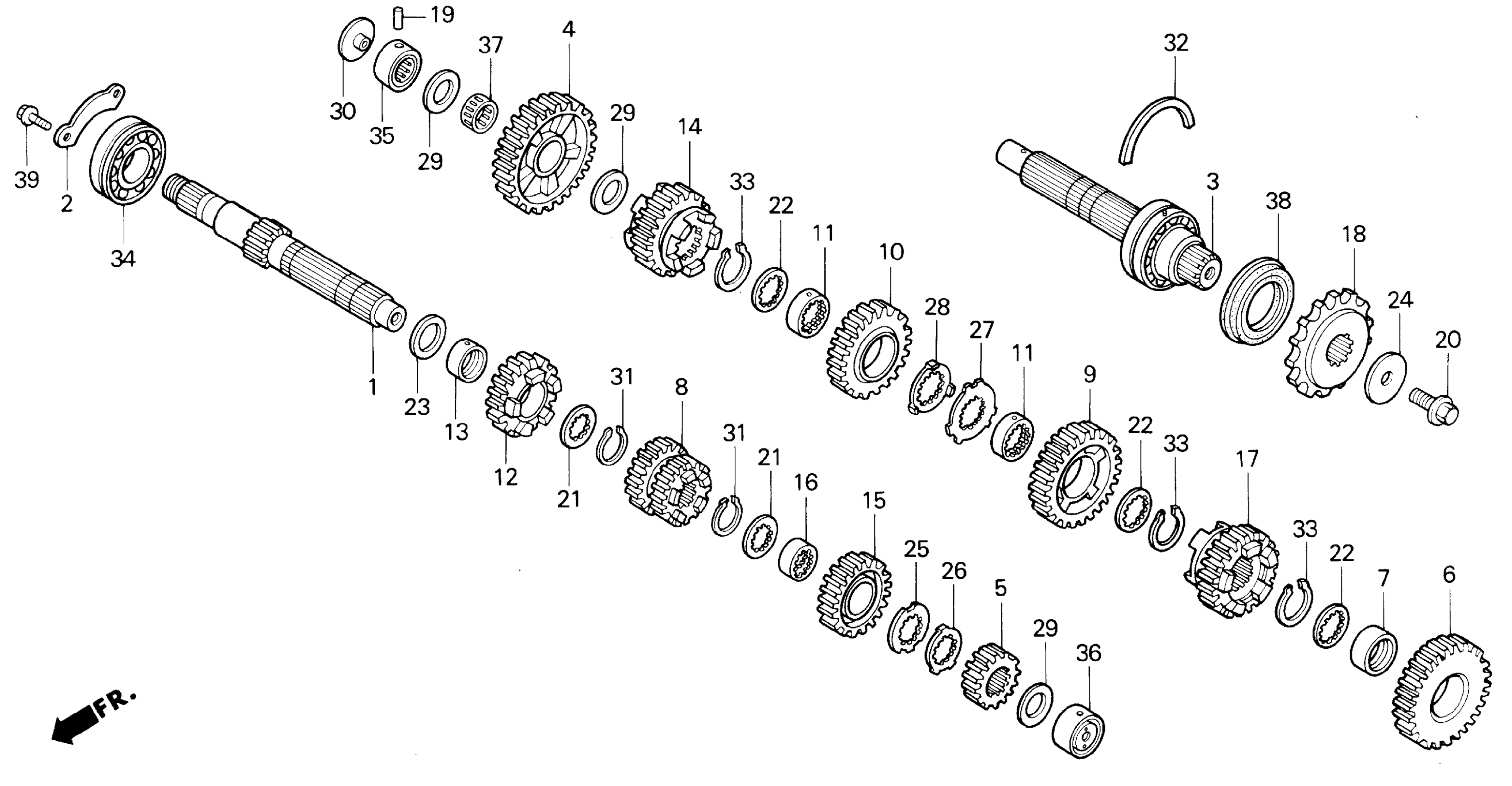

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T)

23211-MV9-670

Unavailable

2

PLATE, BEARING SETTING

23212-MV9-670

$11.34

3

COUNTERSHAFT

23220-MAL-A00

Unavailable

3

COUNTERSHAFT This part replaces 23220-MV9-670.

23220-MAL-A00

Unavailable

4

GEAR, COUNTERSHAFT LOW (41T)

23421-MV9-670

$166.70

5

GEAR, MAINSHAFT SECOND (16T)

23431-MV9-670

$56.66

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MAL-600

$143.82

7

COLLAR (28MM)

23442-MM4-000

$23.62

8

GEAR, MAINSHAFT THIRD & FOURTH (17T/19T)

23451-MAL-600

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T)

23461-MAL-600

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T)

23481-MAL-600

$95.80

11

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$19.18

12

GEAR, MAINSHAFT FIFTH (20T)

23491-MAL-600

$128.59

13

COLLAR (25X14)

23496-MM4-000

$21.20

14

GEAR, COUNTERSHAFT FIFTH (24T)

23501-MAL-600

Unavailable

15

GEAR, MAINSHAFT SIXTH (23T)

23511-MAL-600

$143.18

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$27.13

17

GEAR, COUNTERSHAFT SIXTH (25T)

23521-MAL-600

Unavailable

18

SPROCKET, DRIVE (15T)

23801-MAL-600

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

22

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

23

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

24

WASHER (10.2MM)

90459-438-000

$5.83

25

WASHER, SPLINE (25MM)

90461-KY2-000

$5.34

26

WASHER, LOCK (25MM)

90462-KAZ-000

$9.31

27

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

28

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

29

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.80

30

PLATE, ORIFICE

90559-MM4-000

$4.87

31

CIRCLIP (25MM)

90601-107-000

$3.74

32

SET-RING (62MM)

90602-ML7-000

$9.05

33

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

33

CIRCLIP (28MM)

90603-MN4-000

$4.11

34

BEARING, BALL (6305) (TOYO)

91004-657-008

$54.92

35

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

36

BEARING, NEEDLE (20MM) (NTN) This part replaces 91025-MV9-671.

91025-MW0-003

Unavailable

37

BEARING, NEEDLE (20X24X10)

91102-MM4-003

Unavailable

38

OIL SEAL (40X62X8.4)

91207-MAL-601

$13.51

39

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
