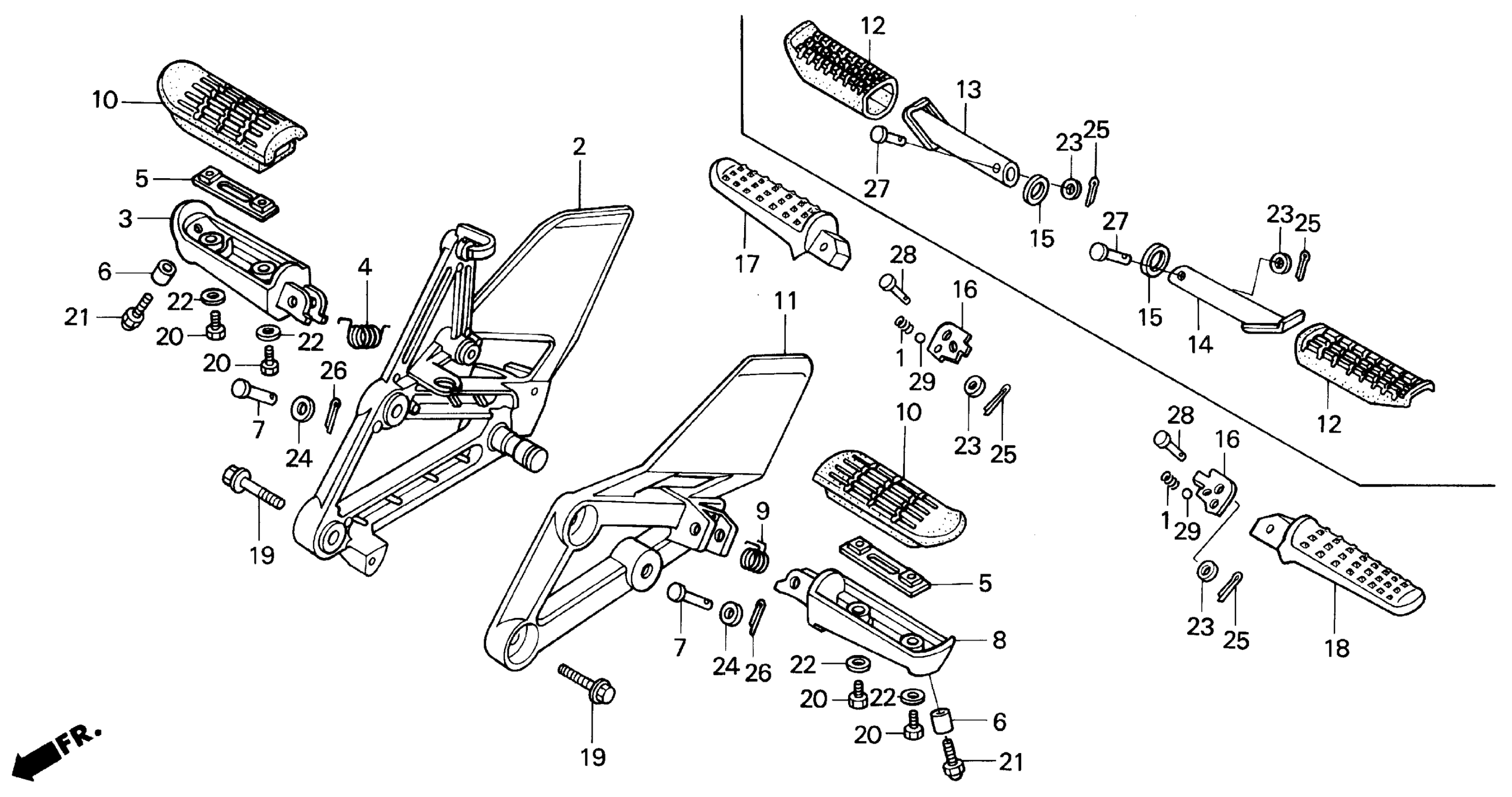

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. STEP

50600-MV9-000

$122.00

3

ARM, R. STEP (COO)

50612-KYJ-305

$26.67

3

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$26.67

4

SPRING, R. STEP RETURN

50617-445-840

$5.44

5

PLATE, STEP SETTING

50619-MM5-000

$7.91

6

COLLAR, FUEL TANK

17503-397-630

Unavailable

7

PIN, STEP BAR

50639-ML0-010

$5.22

8

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$26.67

9

SPRING, L. STEP RETURN

50644-445-840

$5.44

10

RUBBER, STEP

50661-MV9-000

$14.34

11

HOLDER, L. STEP

50700-MAL-600

Unavailable

16

PLATE, PILLION STEP CLICK

50718-KT7-761

$4.01

17

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-760.

50720-K26-305

$46.30

17

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$46.30

18

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-760.

50730-K26-305

$46.30

18

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$46.30

19

BOLT, FLANGE (8X25) This part replaces 90107-KT8-000.

90107-MZ5-000

$4.65

19

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

20

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.67

21

BOLT, CAP (8X25)

92501-08025-0A

$3.80

22

WASHER, PLAIN (5MM)

94101-05000

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94102-08000

$1.49

25

PIN, SPLIT (1.6X12)

94201-16120

$1.49

26

PIN, SPLIT (2.0X15)

94201-20150

$1.49

28

PIN C, PILLION STEP

95015-83000

$2.41

29

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
