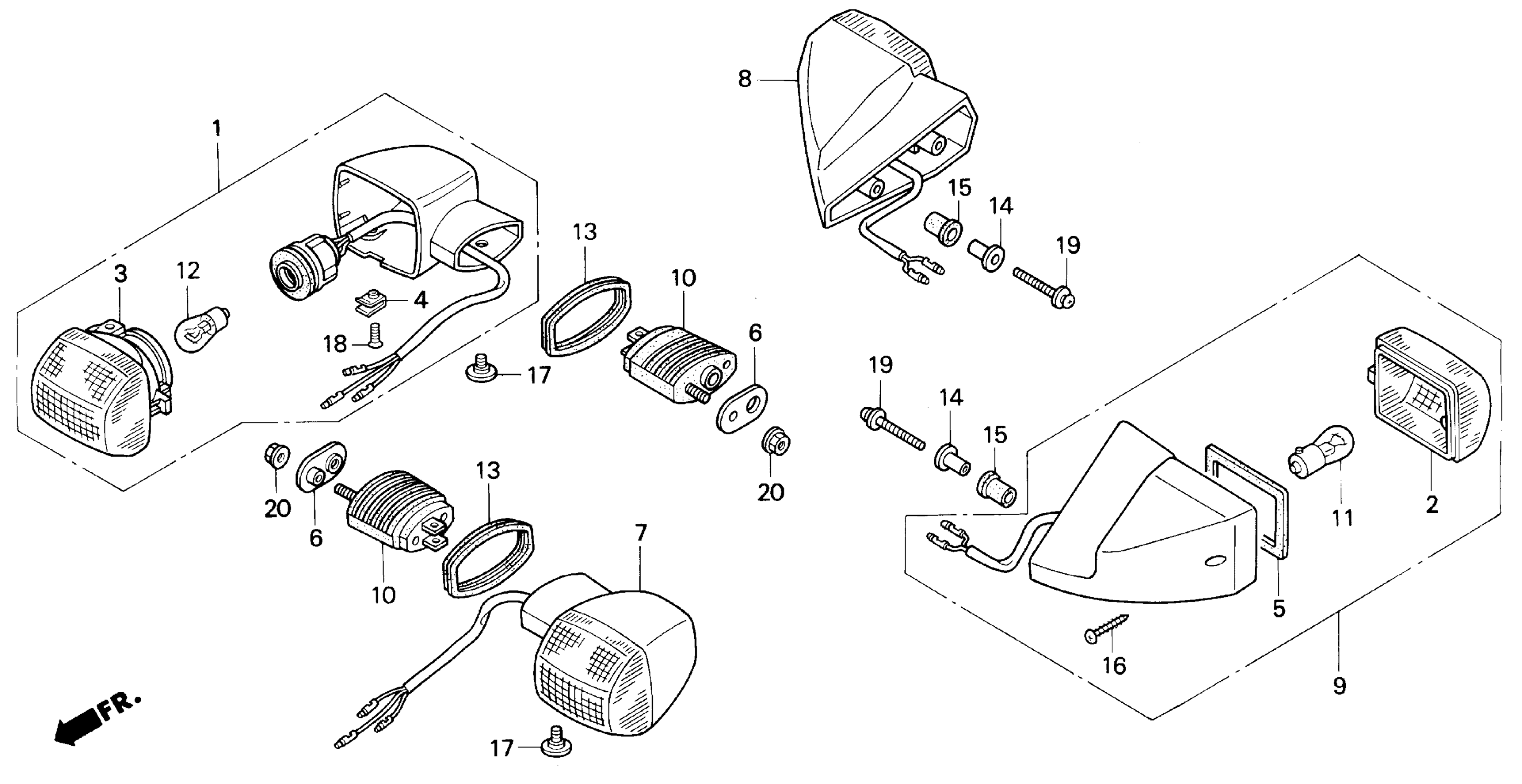

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 F3 TURN SIGNAL 95-96 Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR.

33400-MW0-670

Unavailable

2

LENS, TURN SIGNAL (COO)

33402-MGW-305

$10.52

2

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

3

LENS, TURN SIGNAL

33406-MB2-671

Unavailable

4

NUT, SPECIAL

33407-MB2-003

$3.81

5

GASKET, LENS

33407-MM5-003

Unavailable

6

PLATE, TURN SIGNAL SETTING

33409-MW0-000

$6.61

7

TURN SIGNAL ASSY., L. FR.

33450-MW0-670

Unavailable

8

TURN SIGNAL ASSY., R. RR. (12V 23W)

33600-ML7-980

Unavailable

9

TURN SIGNAL ASSY., L. RR. (12V 23W)

33650-MV9-670

Unavailable

10

STAY, TURN SIGNAL

33691-MB2-003

Unavailable

11

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

12

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

13

RUBBER, FR. TURN SIGNAL

64136-ML7-600

$11.32

14

COLLAR, TURN SIGNAL SETTING

80125-MAL-600

Unavailable

15

RUBBER, TURN SIGNAL MOUNTING

80126-MM5-000

$5.43

16

SCREW, TAPPING (3X30)

90157-MV9-600

$2.25

17

SCREW, SPECIAL (6X8)

90380-MB2-000

$3.38

18

SCREW-WASHER (4X12) This part replaces 93700-04012-0G.

93891-04012-07

$1.49

18

SCREW-WASHER (4X12) This part replaces 93700-04012-1G.

93891-04012-07

$1.49

18

SCREW-WASHER (4X12)

93891-04012-07

$1.49

19

SCREW-WASHER (5X22)

93894-05025-00

Unavailable

20

NUT, FLANGE (6MM)

94050-06070

$1.49
