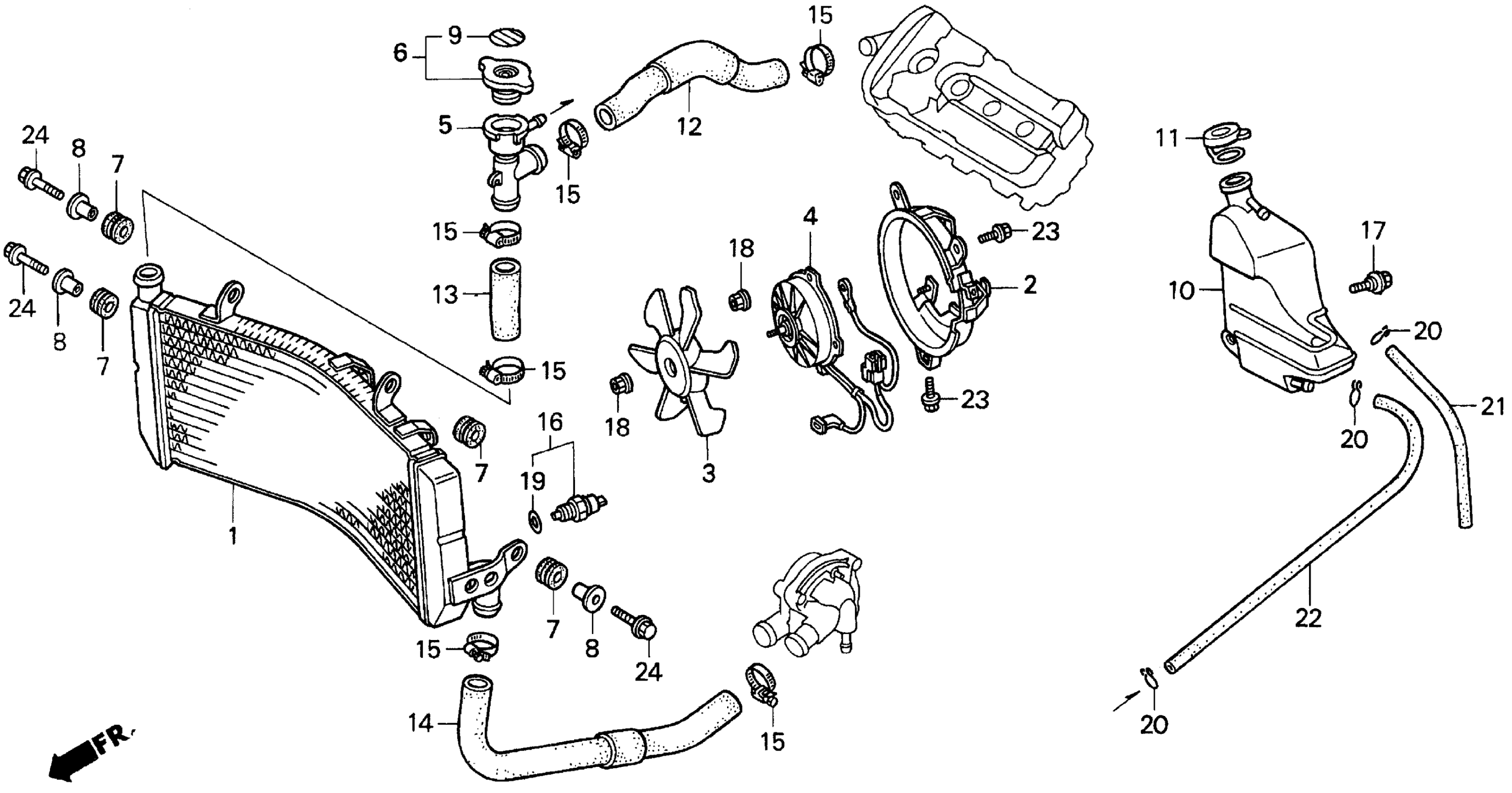

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 F3 RADIATOR 95-96 Diagram

#

Description
Price

1

RADIATOR

19010-MAL-601

Unavailable

2

SHROUD

19015-MAL-601

Unavailable

3

FAN, COOLING (TOYO)

19025-MN4-003

$58.10

4

MOTOR ASSY., FAN

19030-MAL-601

Unavailable

5

NECK, FILLER

19038-MAL-601

Unavailable

6

CAP, RADIATOR

19037-GEE-710

$27.19

6

CAP, RADIATOR This part replaces 19045-MV9-921.

19037-GEE-710

$27.19

7

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

8

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

9

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.28

9

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$8.28

10

TANK, RADIATOR RESERVE

19101-MV9-010

Unavailable

11

CAP, RESERVE TANK

19104-MB0-700

$10.92

12

HOSE, RADIATOR (UPPER)

19501-MAL-600

Unavailable

13

HOSE A

19502-MAL-600

Unavailable

14

HOSE, RADIATOR (LOWER)

19505-MAL-600

Unavailable

15

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

16

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

17

BOLT, FLANGE (6MM)

90111-162-000

$2.62

18

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

19

O-RING (13.5X1.4)

91307-PH7-660

$2.78

19

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

20

CLIP, TUBE (B10)

95002-02100

$1.72

21

BULK HOSE, VACUUM (5.5X3000) (5.3X500)

95005-55003-20M

$30.62

22

BULK HOSE, VACUUM (5.5X3000) (5.3X800)

95005-55003-20M

$30.62

23

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

24

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
