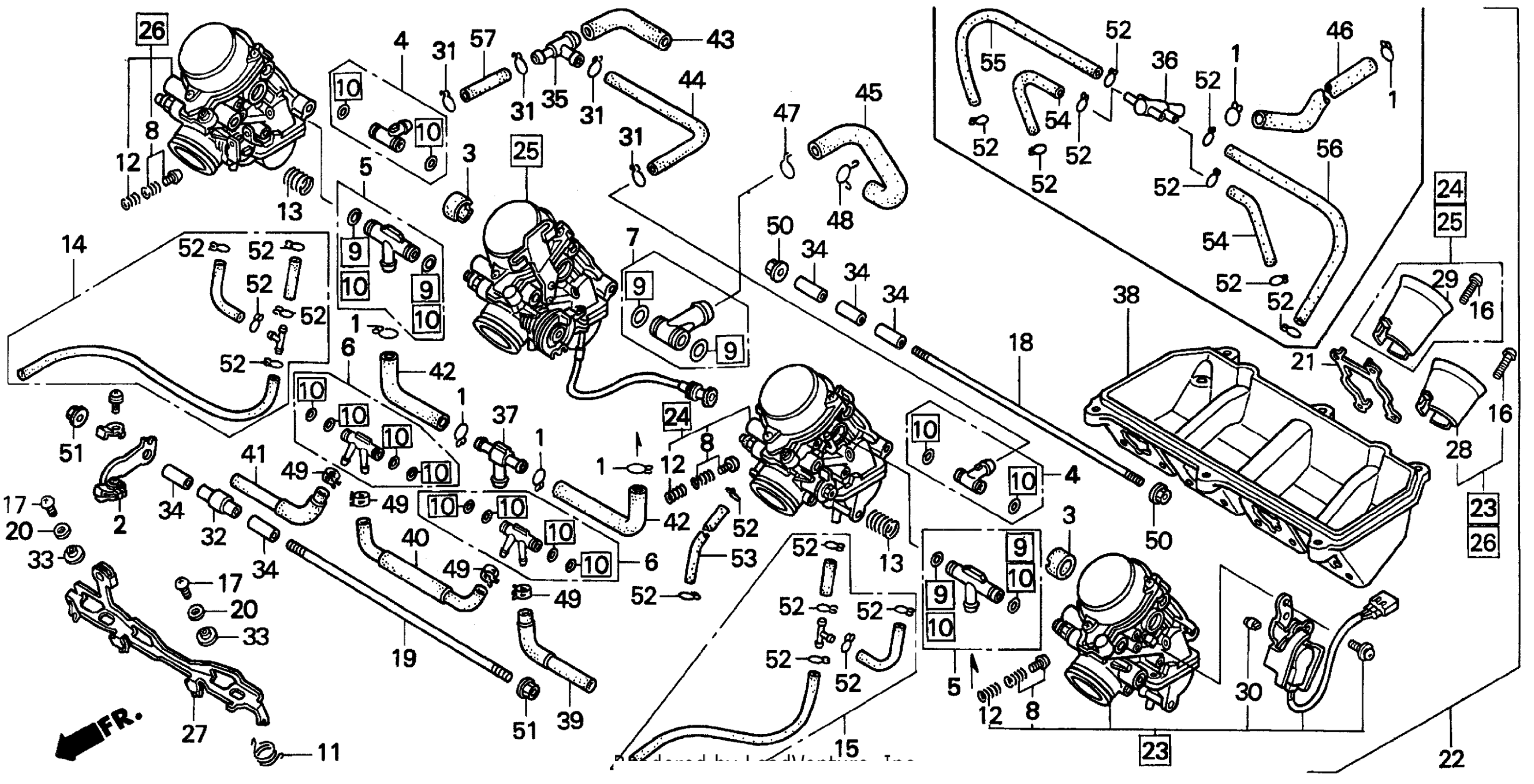

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 F3 CARBURETOR ASSY. 95-96 Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.80

2

STAY, BYSTARTER WIRE

16019-MAL-600

Unavailable

3

JOINT

16024-KAZ-000

$26.32

4

JOINT SET

16024-MAL-600

Unavailable

5

JOINT SET This part replaces 16024-MV9-670.

16024-MZ2-E00

$27.98

5

JOINT SET

16024-MZ2-E00

$27.98

6

JOINT SET

16026-MAL-600

Unavailable

7

JOINT SET

16027-MAL-E00

$38.14

7

JOINT SET This part replaces 16027-MV9-670.

16027-MAL-E00

$38.14

8

SCREW SET This part replaces 16028-MV4-000.

16028-MZ2-E00

Unavailable

9

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$11.53

9

GASKET SET B

16040-MZ1-790

$11.53

10

GASKET SET

16040-MAL-600

$19.69

11

SPRING, TORSION COIL

16051-MZ2-610

Unavailable

12

SPRING, COMPRESSION COIL

16052-KG4-003

$5.42

12

SPRING

16052-MB0-671

$5.81

13

SPRING, COMPRESSION COIL

16053-MA6-003

$8.26

14

TUBE SET A, DRAIN

16065-MAL-600

Unavailable

15

TUBE SET B, DRAIN

16067-MAL-600

Unavailable

16

SCREW, PAN (4X16)

16080-KAZ-000

$1.90

17

SCREW, TRUSS (4X8)

16081-KAZ-000

$2.88

18

BOLT

16083-MV9-670

Unavailable

19

BOLT

16084-MW0-670

Unavailable

20

WASHER, PLAIN

16085-MV4-000

$2.67

21

WASHER, TONGUED

16090-MAL-600

Unavailable

22

CARBURETOR ASSY. (VP61A A)

16100-MAL-670

Unavailable

23

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-MAL-670

Unavailable

24

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-MAL-670

Unavailable

25

CARBURETOR ASSY. 3 (NOT AVAILABLE)

16103-MAL-670

Unavailable

26

CARBURETOR ASSY. 4 (NOT AVAILABLE)

16104-MAL-670

Unavailable

27

LEVER, STARTER

16120-MAL-600

Unavailable

28

FUNNEL, AIR

16141-MAL-E00

Unavailable

28

FUNNEL, AIR This part replaces 16141-MAL-600.

16141-MAL-E00

Unavailable

29

FUNNEL, AIR

16142-MAL-600

Unavailable

30

JOINT, CONNECTOR

16145-MZ2-780

$19.62

31

CLIP, TUBE

16163-GHB-610

$1.65

32

COLLAR This part replaces 16172-MV9-670.

16172-MBZ-610

Unavailable

33

COLLAR

16175-MZ1-000

$12.27

34

PIN, DOWEL (7.9X20)

16178-MAS-600

$7.10

34

PIN, DOWEL (7.9X20) This part replaces 16178-MV4-000.

16178-MAS-600

$7.10

35

T-JOINT (NOT AVAILABLE)

16180-MAL-600

Unavailable

37

T-JOINT

16180-MM5-601

$19.71

38

BASE, AIR CLEANER

16188-MAL-600

Unavailable

39

HOSE, WATER

16191-MAL-600

Unavailable

40

HOSE, WATER

16192-MAL-600

Unavailable

41

HOSE, WATER

16194-MAL-600

Unavailable

42

TUBE

16195-MV9-670

$13.12

43

TUBE

16196-MAL-600

Unavailable

44

TUBE

16197-MAL-600

Unavailable

45

TUBE

16198-MAL-600

Unavailable

47

CLIP B, TUBE

17366-MJ0-000

$2.04

48

CLIP, AIR HOSE (19) (NOT AVAILABLE)

18533-634-670

Unavailable

49

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.54

50

NUT, FLANGE (5MM)

94050-05000

$1.19

51

NUT, FLANGE (6MM)

94050-06000

$0.59

52

CLIP, TUBE (B8)

95002-02089

Unavailable

57

BULK HOSE, VACUUM (7X1000) (7X80)

95005-70001-50M

$11.41
