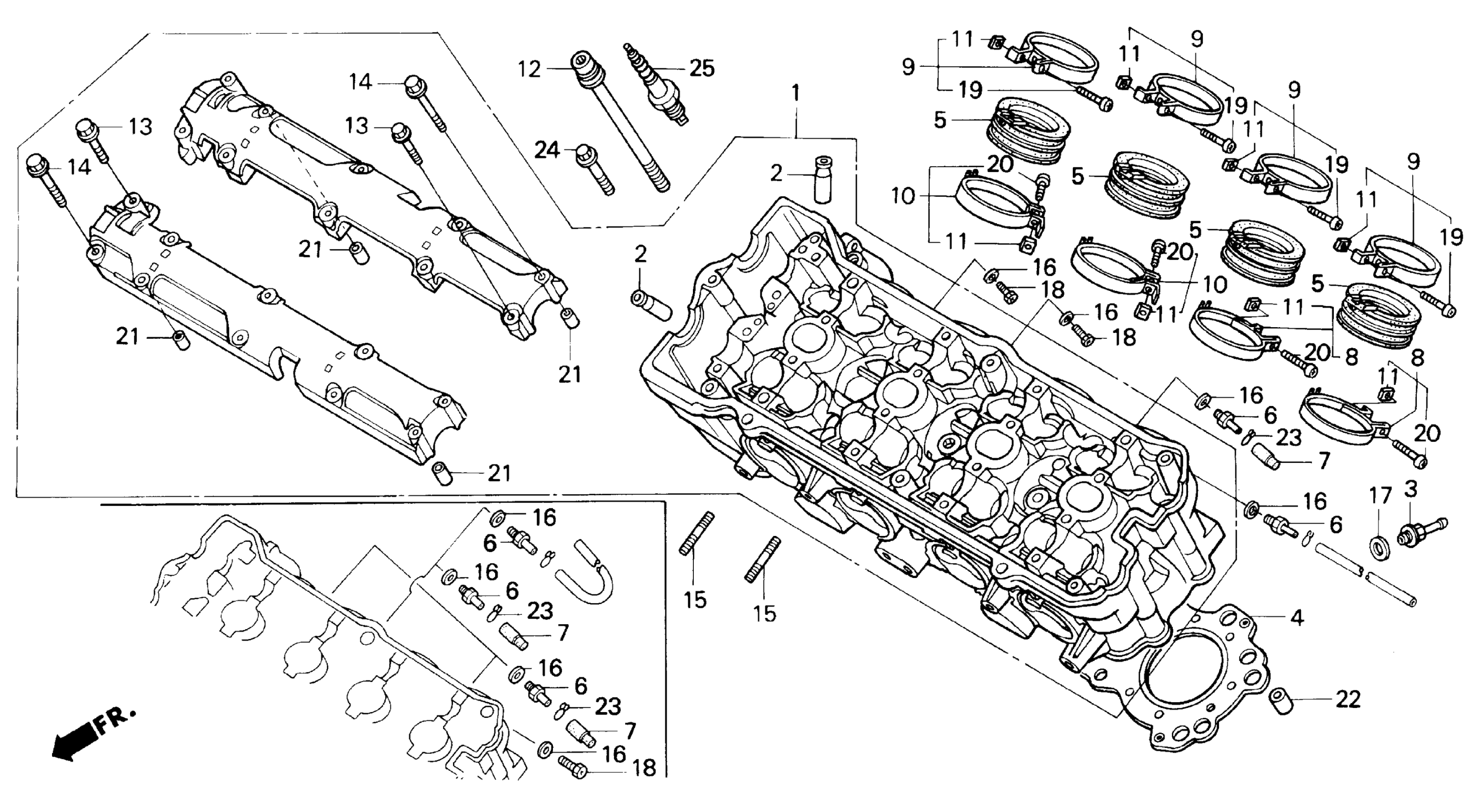

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MAL-600

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MV9-315

$21.39

3

JOINT, HOSE

12207-MV9-670

Unavailable

4

GASKET, CYLINDER HEAD

12251-MAL-601

$97.21

5

INSULATOR, CARBURETOR

16211-MAL-600

$20.99

6

JOINT, BOOST

16214-MB0-000

$4.76

7

CAP, BOOST

16215-MV4-000

$2.78

8

BAND, INSULATOR

16218-MAL-600

Unavailable

9

BAND B, INSULATOR

16218-MV9-670

$11.02

10

BAND, INSULATOR

16218-MAL-600

Unavailable

11

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

12

BOLT, SOCKET (9X95)

90007-MV9-671

Unavailable

13

BOLT, FLANGE (6X37)

90016-KT7-000

$2.92

14

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

15

BOLT, STUD (8X24)

90035-MM5-000

$5.12

16

WASHER, SEALING (5MM)

90452-323-000

$1.59

17

WASHER, OIL BOLT

90545-MJ1-770

$2.95

18

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

19

SCREW, PAN (5X28)

93500-05028-0G

$1.49

20

SCREW, PAN (5X22)

93500-05022-0A

$1.49

21

PIN, DOWEL (8X20)

94301-08200

$2.25

22

PIN, DOWEL (10X16)

94301-10160

$2.28

23

CLIP, TUBE (B7)

95002-02070

$1.80

24

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

25

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

25

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

25

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
