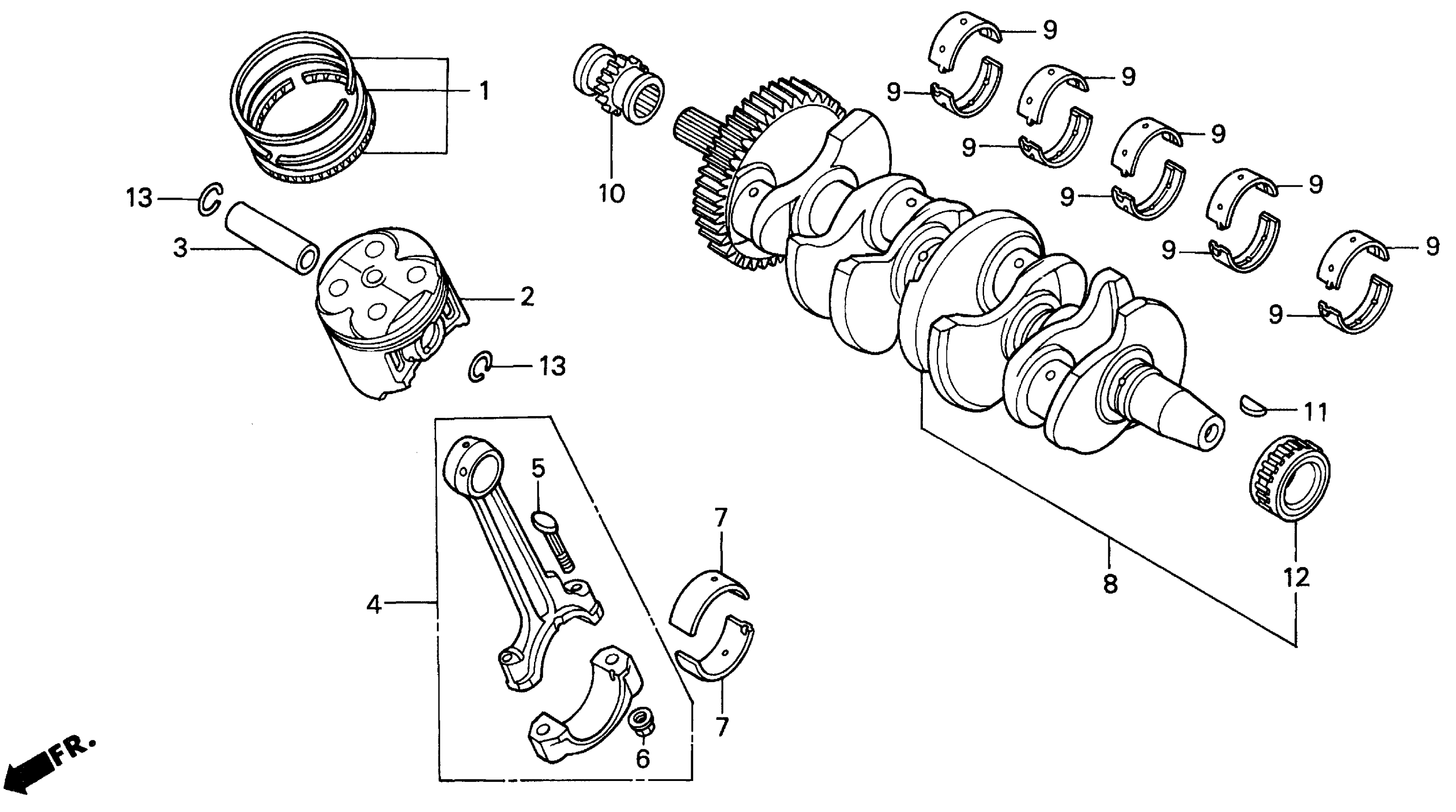

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MAL-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-MAL-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-MAL-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.75) | (Optional).

13041-MAL-305

Unavailable

1

RING SET, PISTON (1.00) | (Optional).

13051-MAL-305

Unavailable

2

PISTON (STD) This part replaces 13101-MAL-600.

13101-MAL-A00

Unavailable

2

PISTON (OVER SIZE) (0.25) | (Optional). This part replaces 13102-MAL-305.

13102-MAL-307

$59.10

2

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MAL-307

$59.10

2

PISTON (OVER SIZE) (0.50) | (Optional). This part replaces 13103-MAL-305.

13103-MAL-307

Unavailable

2

PISTON (OVER SIZE) (0.50) | (Optional).

13103-MAL-307

Unavailable

2

PISTON (0.75) | (Optional). This part replaces 13104-MAL-305.

13104-MAL-307

Unavailable

2

PISTON (0.75) | (Optional).

13104-MAL-307

Unavailable

2

PISTON (1.00) | (Optional). This part replaces 13105-MAL-305.

13105-MAL-307

$59.41

2

PISTON (1.00) | (Optional).

13105-MAL-307

$59.41

3

PIN, PISTON

13111-MAL-600

$19.07

4

ROD ASSY., CONNECTING This part replaces 13210-MAL-600.

13210-MBW-000

Unavailable

4

ROD ASSY., CONNECTING

13210-MBW-000

Unavailable

5

BOLT, CONNECTING ROD

13213-MAL-600

Unavailable

6

NUT, CONNECTING ROD

13215-MV9-670

$5.04

7

BEARING A, CONNECTING ROD (BROWN)

13224-MAL-601

$13.86

7

BEARING B, CONNECTING ROD (GREEN)

13225-MAL-601

$13.86

7

BEARING C, CONNECTING ROD (YELLOW)

13226-MAL-601

$13.86

8

CRANKSHAFT

13300-MAL-600

$1,036.08

9

BEARING A, CRANKSHAFT (BROWN)

13313-MAL-601

$14.70

9

BEARING B, CRANKSHAFT (GREEN)

13314-MAL-601

$13.86

9

BEARING C, CRANKSHAFT (YELLOW)

13315-MAL-601

$14.70

9

BEARING D, CRANKSHAFT (PINK)

13316-MAL-601

$13.86

10

SPROCKET, TIMING (17T)

14312-MAT-000

Unavailable

10

SPROCKET, TIMING (17T) This part replaces 14312-MV9-670.

14312-MAT-000

Unavailable

11

KEY, WOODRUFF (25X14)

90741-413-000

$2.56

12

BEARING, NEEDLE (28X41X21)

91021-MV9-671

$37.20

13

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
