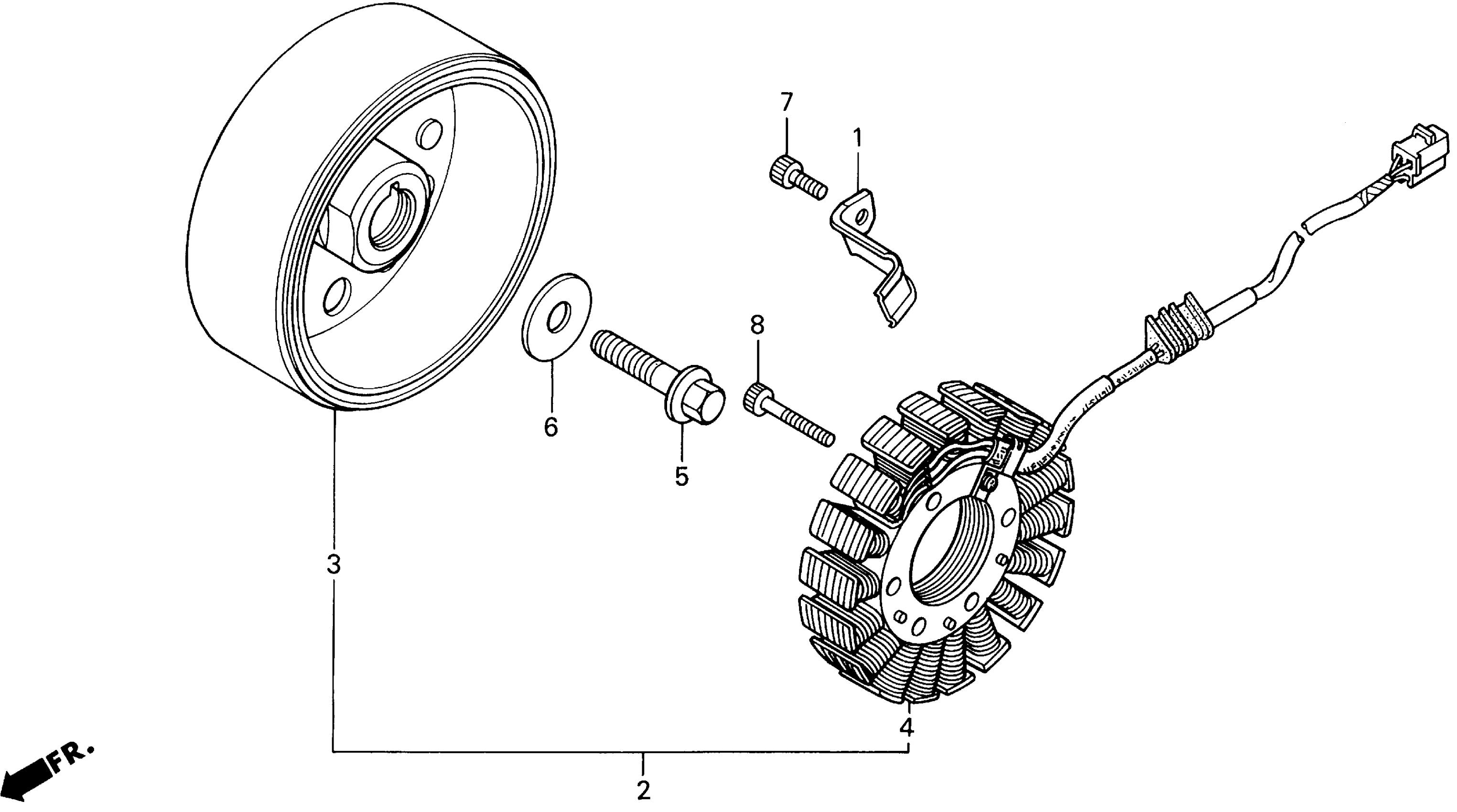

Honda CBR600F3A (96) SUPER SPORT, JPN, VIN# JH2PC250-TM500001 ALTERNATOR Diagram

#

Description

Price

1

CLAMP, ALTERNATOR CORD

11333-MV9-670

Unavailable

3

FLYWHEEL (DENSO)

31110-MV9-671

$627.43

4

STATOR (DENSO)

31120-MV9-671

Unavailable

5

BOLT, FLANGE (10MM)

90023-MV9-670

$10.05

6

WASHER (10.5X27)

90405-KT7-000

$4.29

7

BOLT, SOCKET (6X12)

96600-06012-00

$1.58

8

BOLT, SOCKET (6X32)

96600-06032-00

$1.68
