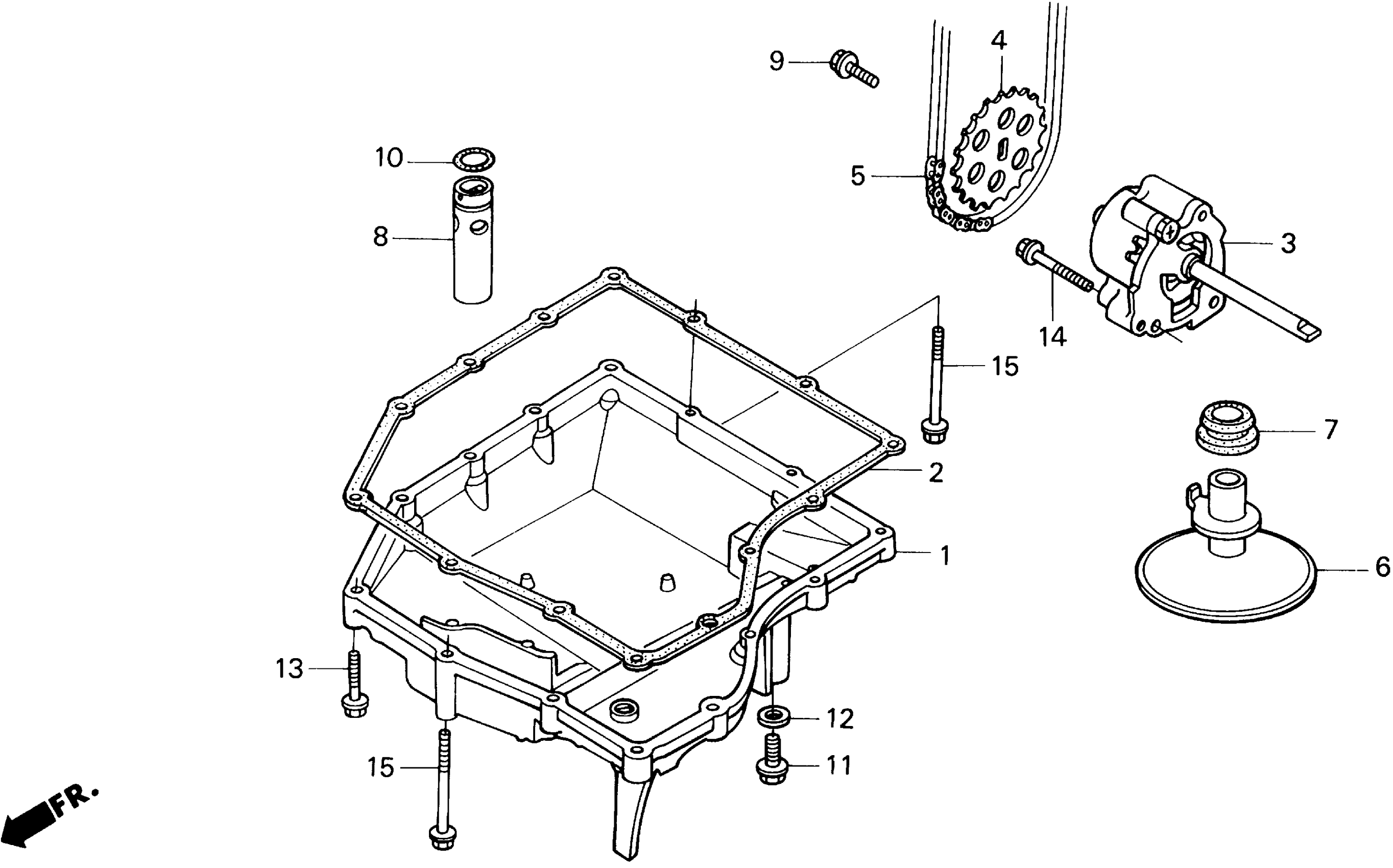

Honda CBR600F2A (94) SUPER SPORT, JPN, VIN# JH2PC250-RM300001 TO JH2PC250-RM308445 OIL PAN Diagram

PAN, OIL

11210-MV9-670

Unavailable

GASKET, OIL PAN

11394-MV9-670

$15.29

PUMP ASSY., OIL

15100-MV9-670

$286.52

SPROCKET, OIL PUMP DRIVEN (26T)

15134-MV9-670

$27.03

CHAIN, OIL PUMP (25H-50) (DAIDO)

15140-ML0-003

Unavailable

STRAINER, OIL

15153-MV9-670

Unavailable

GASKET, OIL STRAINER

15154-MM5-000

$6.60

VALVE ASSY., RELIEF

15220-MM4-000

$41.74

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
