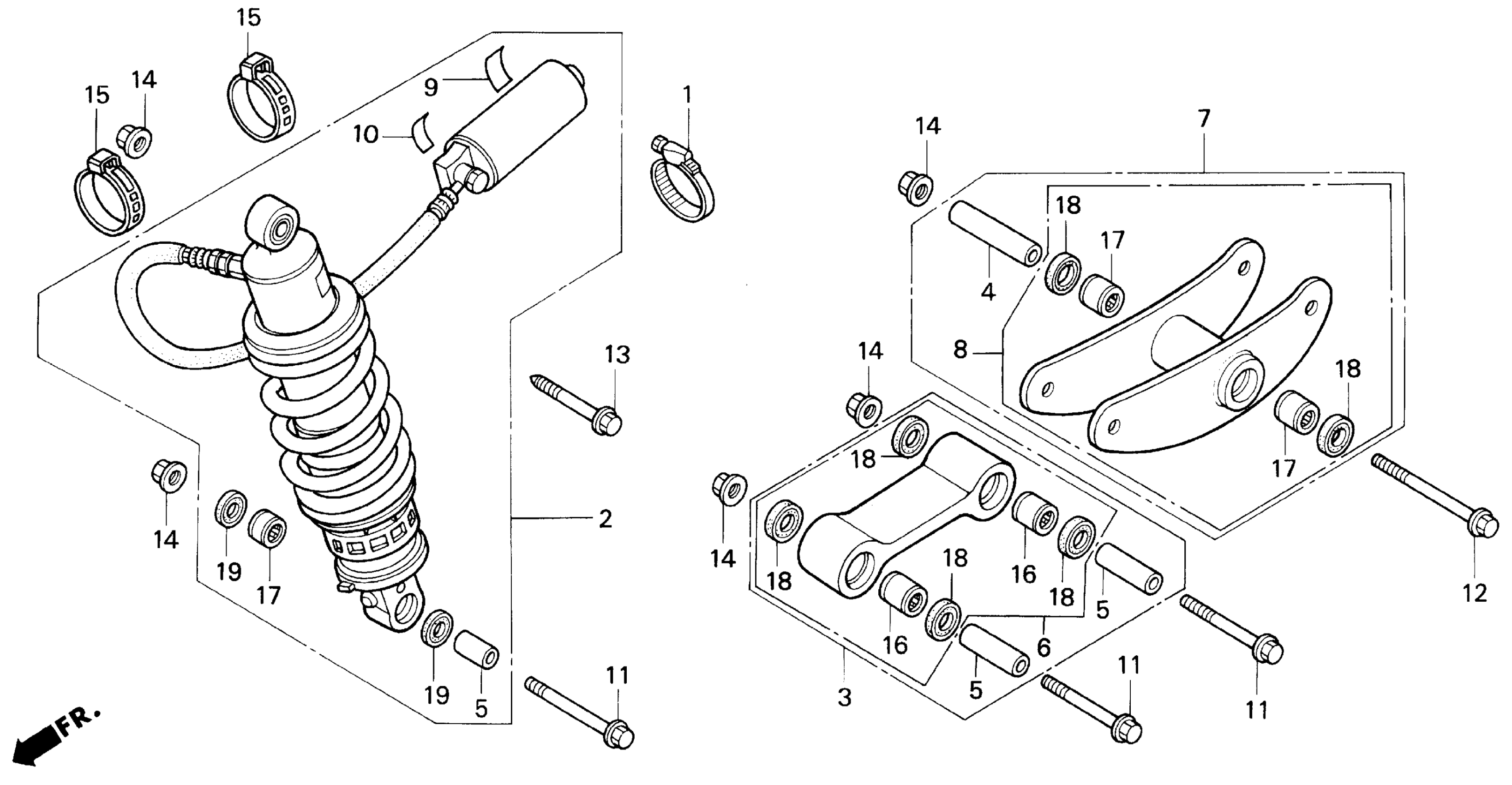

Honda CBR600F2A (94) SUPER SPORT, JPN, VIN# JH2PC250-RM300001 TO JH2PC250-RM308445 F2 F3 REAR SHOCK ABSORBER 94-96 Diagram

BAND, SUB-TANK

50252-KV3-781

Unavailable

SHOCK ABSORBER, RR. (NOT AVAILABLE)

52400-MV9-661

Unavailable

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52460-KV3-830

Unavailable

COLLAR, CUSHION ARM PIVOT

52463-KM3-000

Unavailable

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

ARM ASSY., SHOCK ABSORBER

52470-MV9-000

Unavailable

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.93

LABEL, DAMPER ADJUSTING

87519-KV3-841

$3.04

BOLT, FLANGE (10X64)

90105-GE3-760

$12.80

BOLT, FLANGE (10X90)

90107-969-000

Unavailable

BOLT, FLANGE (10X50)

90120-HC4-000

$6.46

NUT, U (10MM)

90304-GE8-003

$3.67

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BEARING, NEEDLE (17X24X25) This part replaces 91071-KM4-004.

91072-MJ0-003

$26.62

BEARING, NEEDLE (17X24X25)

91072-MJ0-003

$26.62

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56
