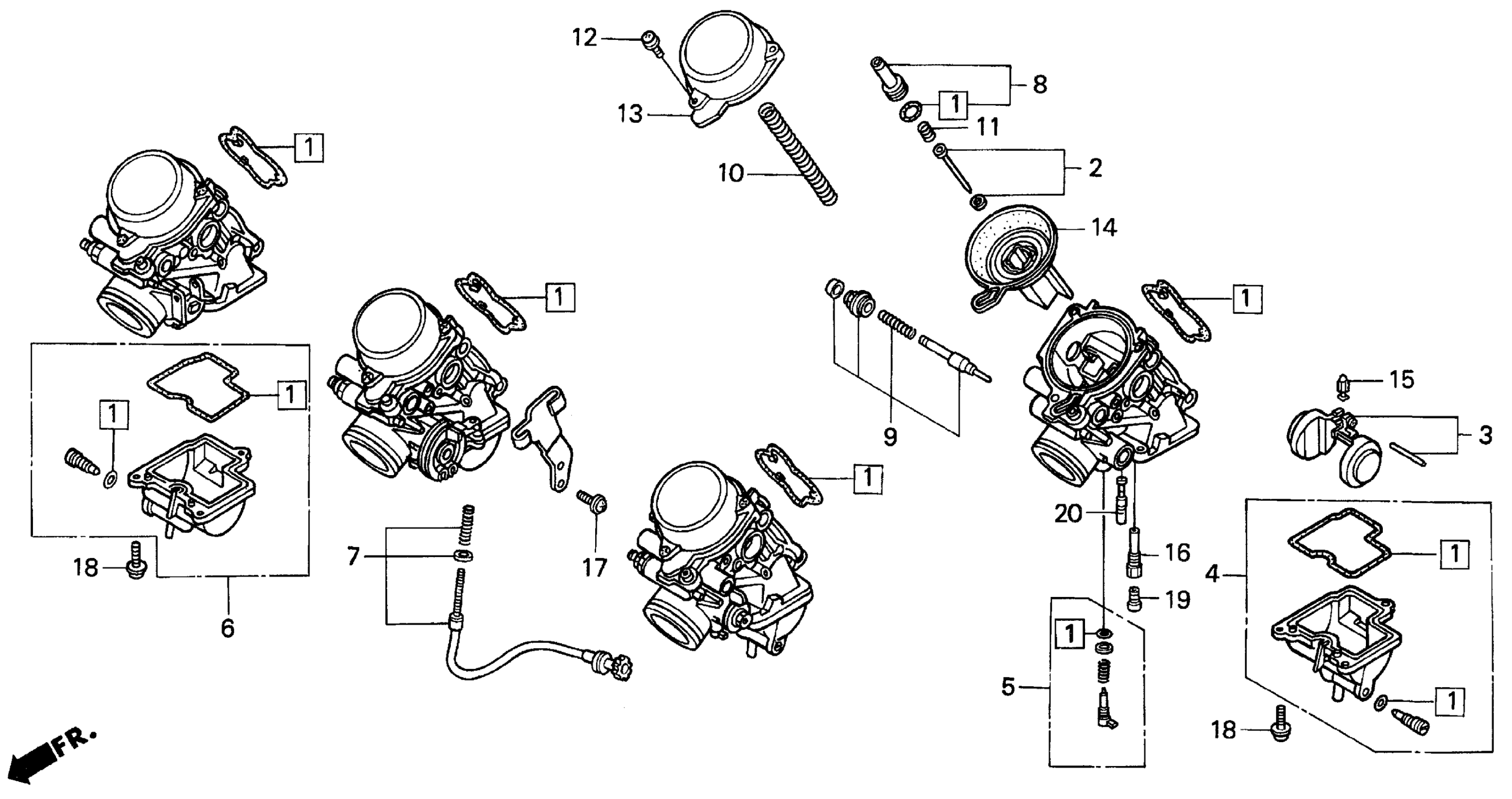

Honda CBR600F2A (94) SUPER SPORT, JPN, VIN# JH2PC250-RM300001 TO JH2PC250-RM308445 F2 CARBURETOR COMPONENTS 91-94 Diagram

GASKET SET A This part replaces 16010-MV9-670.

16010-MZ5-920

$36.58

GASKET SET A This part replaces 16010-MZ1-790.

16010-MZ5-920

$36.58

GASKET SET A

16010-MZ5-920

$36.58

NEEDLE SET, JET

16012-MV9-670

$31.13

FLOAT SET

16013-MAS-600

Unavailable

FLOAT SET This part replaces 16013-MV9-670.

16013-MAS-600

Unavailable

CHAMBER SET, FLOAT (#1) This part replaces 16015-MV9-670.

16015-MZ2-E00

Unavailable

SCREW SET This part replaces 16016-MV9-730.

16016-MAS-670

$25.22

CHAMBER SET, FLOAT (#3) This part replaces 16023-MV9-670.

16043-MZ2-E00

$93.07

SCREW SET

16029-MV9-670

$21.38

PLATE SET, VALVE This part replaces 16037-MV4-000.

16037-MY5-850

Unavailable

PLATE SET, VALVE

16037-MY5-850

Unavailable

VALVE SET, STARTER This part replaces 16046-MV9-670.

16046-MY5-850

$57.73

VALVE SET, STARTER

16046-MY5-850

$57.73

SPRING, COMPRESSION COIL

16050-MV9-670

Unavailable

SPRING, COMPRESSION COIL

16051-MV4-000

$19.91

SCREW-WASHER

16080-MV4-000

$2.54

TOP

16107-MV4-000

Unavailable

PISTON, VACUUM (NOT AVAILABLE)

16111-MV9-670

Unavailable

VALVE, FLOAT

16155-MN9-004

$30.35

HOLDER, NEEDLE JET

16165-MN4-013

Unavailable

SCREW-WASHER (5X10)

93892-05010-00

$1.49

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$1.49

SCREW-WASHER (5X16)

93892-05016-00

$1.49

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$1.49

JET, MAIN (#135) This part replaces 99101-GHB-1350.

99101-KPE-1350

$12.72

JET, MAIN (#135)

99101-KPE-1350

$12.72

JET, MAIN (#135) This part replaces 99101-393-1350.

99101-KPE-1350

$12.72

JET, SLOW (#38) This part replaces 99103-MT3-0380.

99103-MV9-0380

$11.73
