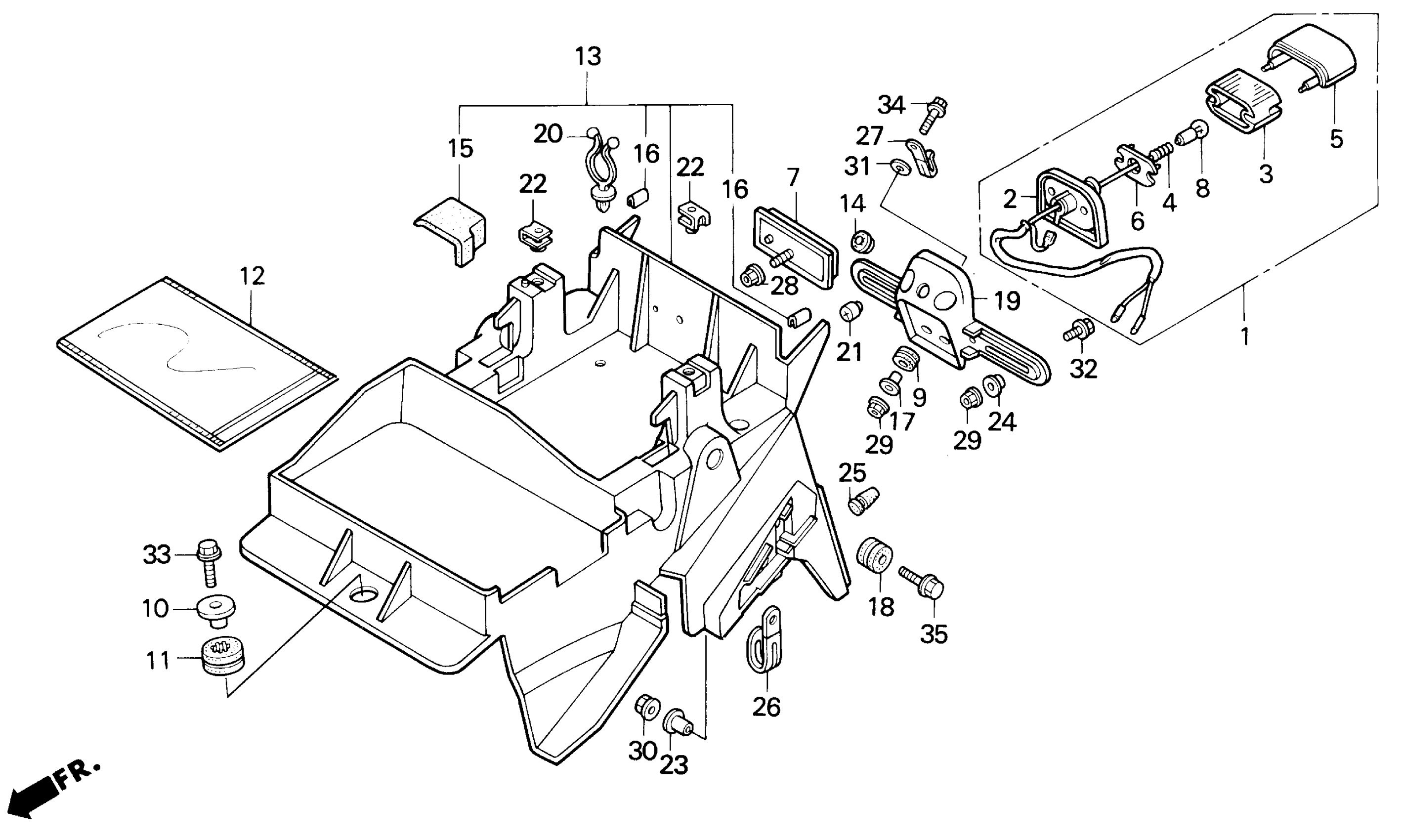

Honda CBR600F2A (93) SUPER SPORT, JPN, VIN# JH2PC250-PM200003 TO JH2PC250-PM207591 REAR FENDER Diagram

LIGHT ASSY., LICENSE

33720-MV9-670

Unavailable

BASE

33721-MB2-003

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

WIRE, LICENSE

33725-KN7-670

Unavailable

WIRE, LICENSE This part replaces 33725-MV9-670.

33725-KN7-670

Unavailable

COVER, LICENSE (STANLEY)

33727-ME4-671

$27.26

GASKET, LENS

33729-MB1-003

$6.30

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

COLLAR, SETTING

61104-422-000

$6.91

RUBBER B, SIDE SHELTER

64122-KV0-000

$4.53

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

FENDER A, RR. This part replaces 80101-MV9-000.

80101-MAL-670

Unavailable

FENDER A, RR.

80101-MAL-670

Unavailable

GROMMET, WIRE CORD

80102-323-000

Unavailable

MOLDING, RR. FENDER

80104-MV4-300

Unavailable

COLLAR, RR. FENDER

80114-KE2-940

$3.90

RUBBER, RR. FENDER

80152-958-680

$5.14

BRACKET, NUMBER PLATE

84701-ML7-670

$41.31

CLAMP, HARNESS

90119-HA7-670

$3.72

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

NUT, CLIP (6MM)

90305-GK8-000

$2.39

COLLAR

90370-SC3-960

Unavailable

WASHER (6X20)

90502-VA4-640

$3.23

PLUG, CONE TYPE

90899-422-610

$1.89

CLIP (2X70)

91410-MN1-671

$3.05

CLIP (2X60)

91410-679-000

$10.06

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BOLT, FLANGE (8X30)

95801-08030-00

$1.57
