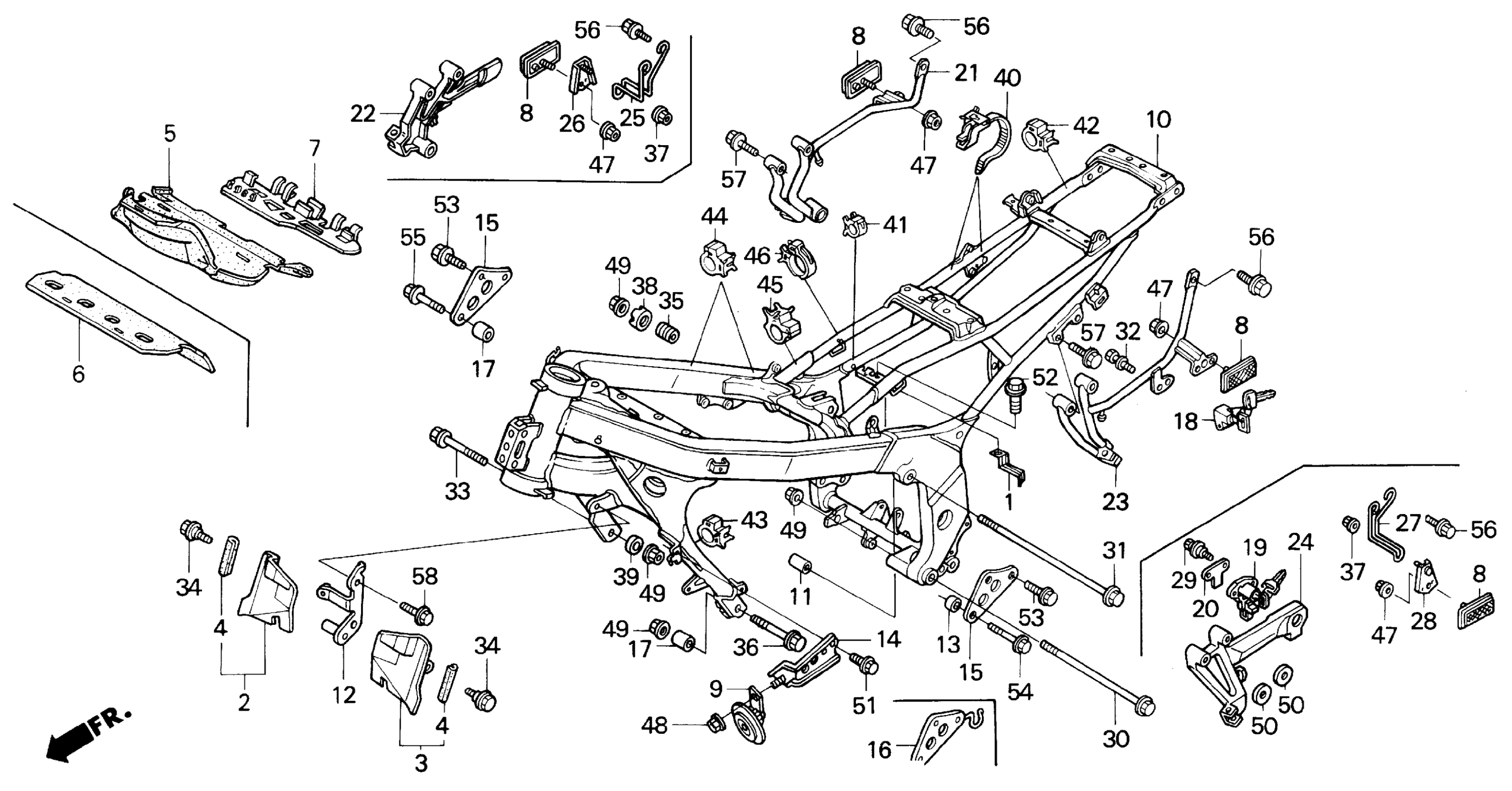

Honda CBR600F2A (93) SUPER SPORT, JPN, VIN# JH2PC250-PM200003 TO JH2PC250-PM207591 FRAME Diagram

STAY, IDLE ADJUST

17441-MV9-000

Unavailable

GUARD A, HEAT

19125-MV9-000

Unavailable

GUARD B, HEAT

19126-MV9-000

Unavailable

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

HORN (LOW)

38120-MV9-008

Unavailable

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-MV9-010ZA

Unavailable

COLLAR, ENGINE HANGER

50185-MV9-000

Unavailable

COLLAR, R. FR. ENGINE HANGER

50353-MS9-750

Unavailable

STAY, HORN (A)

50359-MV9-000

Unavailable

PLATE, ENGINE HANGER CENTER

50501-MV9-000

Unavailable

COLLAR, ENGINE HANGER

50505-MV9-000

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-GB4-007

$74.08

HOLDER, R. PILLION STEP

50750-MV9-000

Unavailable

HOLDER, L. PILLION STEP (NOT AVAILABLE)

50760-MV9-000

Unavailable

BOLT, FLANGE (10X260)

90101-KE8-000

Unavailable

BOLT, ENGINE HANGER (UPPER)

90104-MV9-000

Unavailable

BOLT, SPECIAL (6X10)

90107-KM9-000

$3.02

BOLT, FLANGE (10X67)

90107-ML7-000

Unavailable

COLLAR, ENGINE MOUNT ADJUSTING

90116-KAF-000

Unavailable

BOLT, FLANGE (10X80)

90153-MT3-000

$9.80

NUT, LOCK (20MM)

90341-KV3-700

Unavailable

WASHER (10.5X24X5)

90401-MV9-000

Unavailable

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.26

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (8MM)

94050-08070

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (10X40)

95701-10040-00

$1.51

BOLT, FLANGE (10X50)

95701-10050-00

$2.59

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
