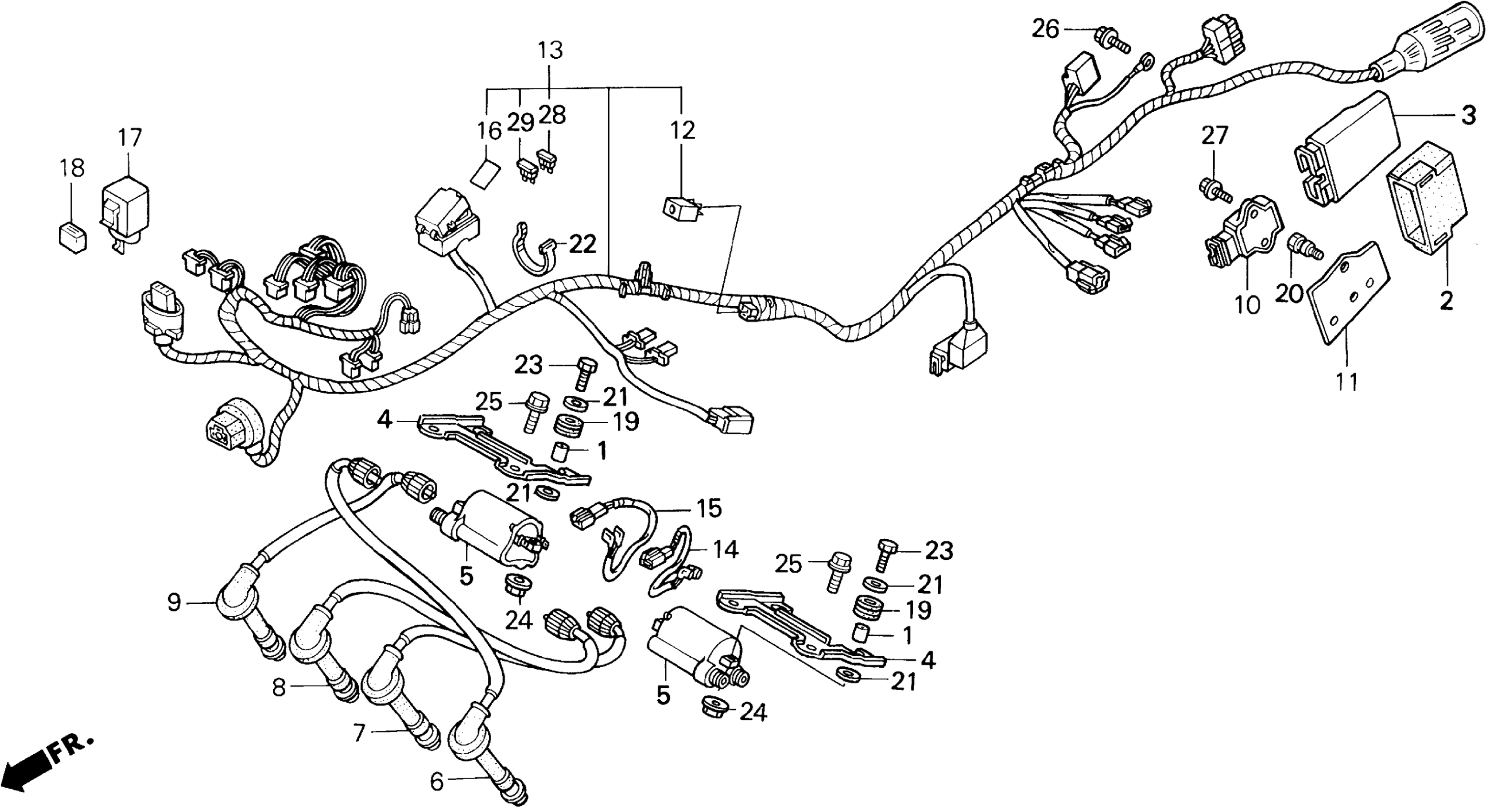

Honda CBR600F2A (93) SUPER SPORT, JPN, VIN# JH2PC250-PM200003 TO JH2PC250-PM207591 F2 WIRE HARNESS 91-94 Diagram

#

Description
Price

1

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.43

2

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-MV9-600

Unavailable

4

STAY, IGNITION COIL

30507-MV9-000

Unavailable

5

COIL, IGNITION | Use up to Frame SN PM206712 This part replaces 30510-KT7-013.

30510-KT7-023

$142.15

5

COIL, IGNITION

30510-KT7-023

$142.15

6

CAP ASSY. 1, IGNITION

30751-MV9-000

Unavailable

7

CAP ASSY. 2, IGNITION

30752-MV9-000

Unavailable

8

CAP ASSY. 3, IGNITION

30753-MV9-000

Unavailable

9

CAP ASSY. 4, IGNITION

30754-MV9-000

Unavailable

10

RECTIFIER ASSY., REGULATE This part replaces 31600-MV4-000.

31600-MV4-010

$278.54

10

RECTIFIER ASSY., REGULATE (SHINDENGEN)

31600-MV4-010

$278.54

11

SPACER, REGULATOR RECTIFIER

31605-MV9-000

Unavailable

12

RECTIFIER, SILICON

31700-196-000

$26.42

13

WIRE HARNESS

32100-MV9-670

Unavailable

14

SUB-HARNESS, IGNITION (1) (NOT AVAILABLE)

32105-MV9-000

Unavailable

15

SUB-HARNESS, IGNITION (2)

32106-MV9-000

Unavailable

16

LABEL, FUSE

38215-MV9-600

Unavailable

17

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

18

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

19

RUBBER A, SIDE SHELTER

64121-KV0-000

Unavailable

20

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

21

WASHER (6MM)

90485-286-000

$1.55

22

BAND, WIRE HARNESS

90651-MA6-720

$3.73

23

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

28

FUSE, BLADE (10A)

98200-31000

$1.49

29

FUSE, BLADE (15A)

98200-31500

$1.49
