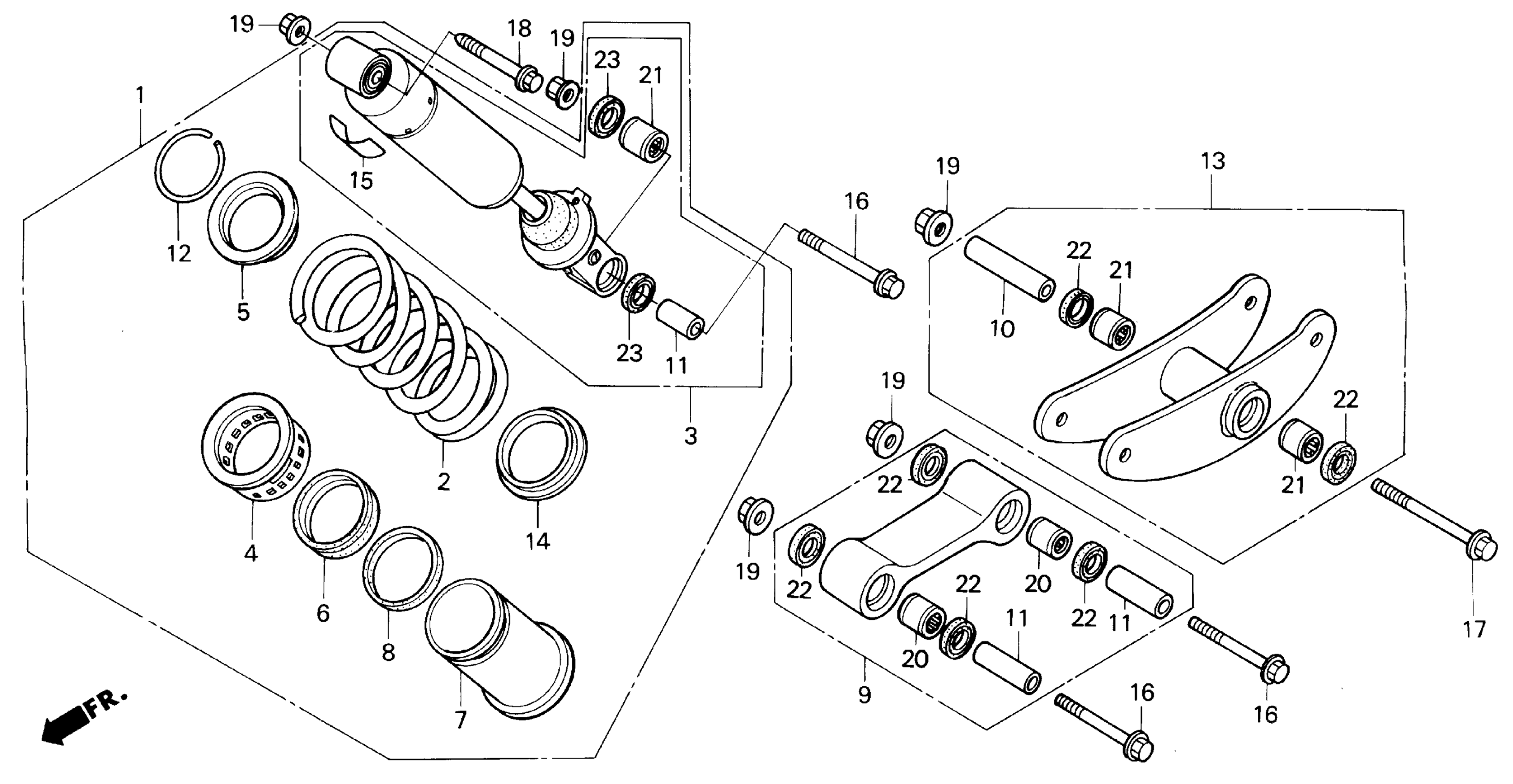

Honda CBR600F2A (93) SUPER SPORT, JPN, VIN# JH2PC250-PM200003 TO JH2PC250-PM207591 F2 REAR SHOCK ABSORBER 91-93 Diagram

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-MV9-003

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MV9-003

Unavailable

DAMPER SET, RR. (NOT AVAILABLE)

52409-MV9-305

Unavailable

ADJUSTER, SPRING (SHOWA)

52422-KT8-013

Unavailable

SEAT B, SPRING (SHOWA) (NOT AVAILABLE)

52450-KT8-003

Unavailable

DUST SEAL

52457-ML7-003

$11.46

GUIDE, SPRING (SHOWA) (NOT AVAILABLE)

52458-KT8-013

Unavailable

GROMMET (SHOWA)

52459-KT8-003

Unavailable

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52460-KV3-830

Unavailable

COLLAR, CUSHION ARM PIVOT

52463-KM3-000

Unavailable

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

RING, STOPPER

52464-ML7-003

$4.72

ARM ASSY., SHOCK ABSORBER

52470-MV9-000

Unavailable

SEAT, SPRING (SHOWA)

52486-KT8-003

Unavailable

LABEL, RR. DAMPER This part replaces 87516-KY7-911.

87516-MBL-610

$4.31

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, FLANGE (10X64)

90105-GE3-760

$12.80

BOLT, FLANGE (10X90)

90107-969-000

Unavailable

BOLT, FLANGE (10X50)

90120-HC4-000

$6.46

NUT, U (10MM)

90304-GE8-003

$3.67

BEARING, NEEDLE (17X24X25) This part replaces 91071-KM4-004.

91072-MJ0-003

$26.62

BEARING, NEEDLE (17X24X25)

91072-MJ0-003

$26.62

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56
