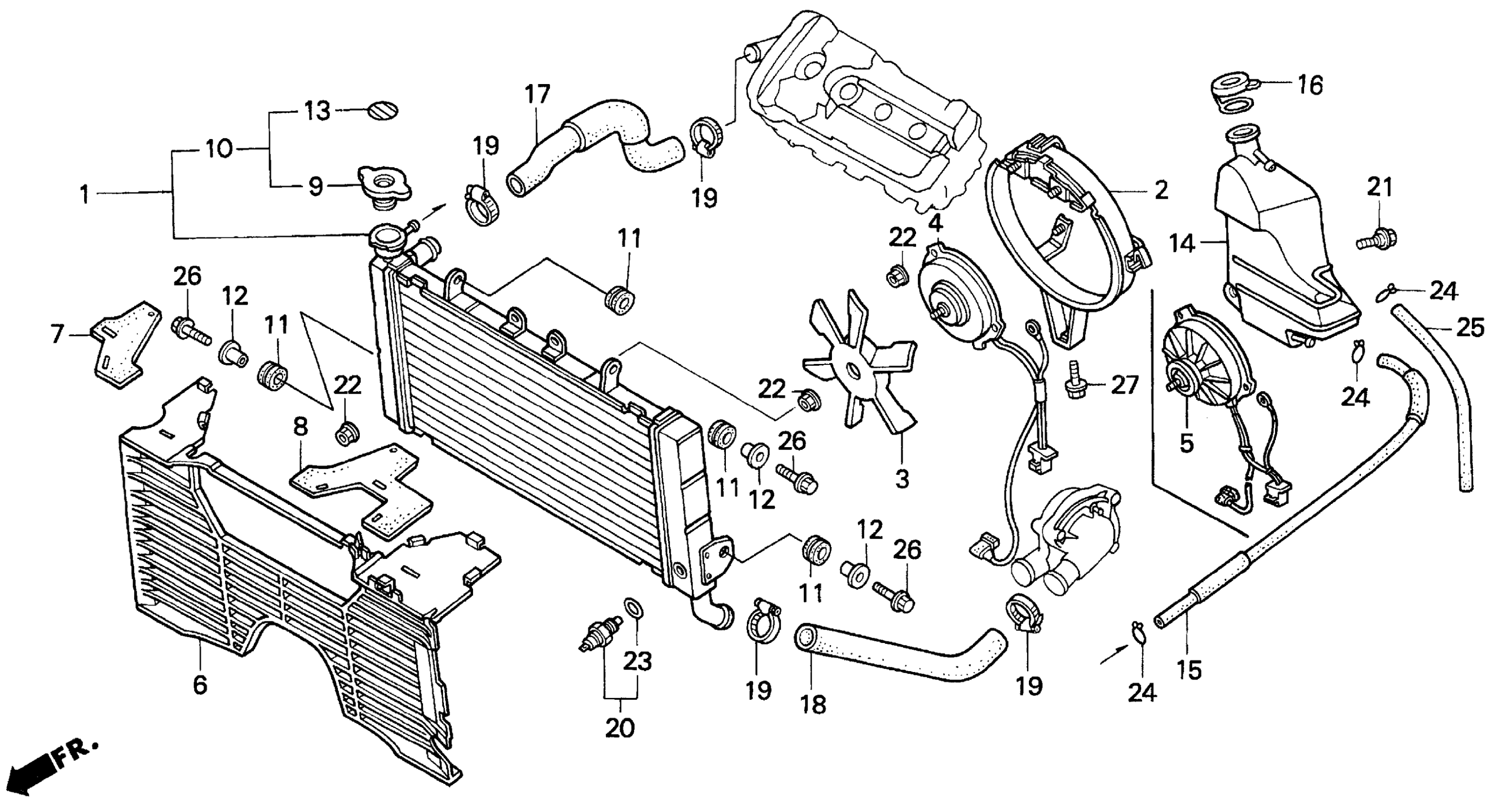

Honda CBR600F2A (93) SUPER SPORT, JPN, VIN# JH2PC250-PM200003 TO JH2PC250-PM207591 F2 RADIATOR 91-94 Diagram

RADIATOR

19010-MV9-P00

Unavailable

RADIATOR This part replaces 19010-MV9-921.

19010-MV9-P00

Unavailable

SHROUD | Use up to Frame SN PM204232

19015-MV9-003

Unavailable

SHROUD | Use from Frame SN PM204233

19015-MV9-931

Unavailable

FAN, COOLING (TOYO)

19025-MN4-003

Unavailable

MOTOR, COOLING FAN | Use up to Frame SN PM204232

19030-MV9-000

Unavailable

MOTOR ASSY., FAN | Use from Frame SN PM204233

19030-MV9-931

Unavailable

GRILLE, RADIATOR

19032-MV9-000

Unavailable

RUBBER, R. RADIATOR GRILLE (NOT AVAILABLE)

19033-MV9-000

Unavailable

RUBBER, L. RADIATOR GRILLE

19034-MV9-000

Unavailable

CAP, RADIATOR

19037-GEE-710

$30.28

CAP, RADIATOR This part replaces 19045-MV9-921.

19037-GEE-710

$30.28

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

TANK, RADIATOR RESERVE

19101-MV9-010

Unavailable

TUBE, RADIATOR RESERVE TANK

19102-MV9-000

Unavailable

CAP, RESERVE TANK

19104-MB0-700

$12.16

HOSE, RADIATOR (UPPER)

19501-MV9-000

Unavailable

HOSE, RADIATOR (LOWER)

19505-MV9-000

Unavailable

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

CLIP, TUBE (B10)

95002-02100

$1.90

BULK HOSE, VACUUM (5.5X3000) (5.3X500)

95005-55003-20M

$34.09

BOLT, FLANGE (6X25)

95801-06025-07

$1.72

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
