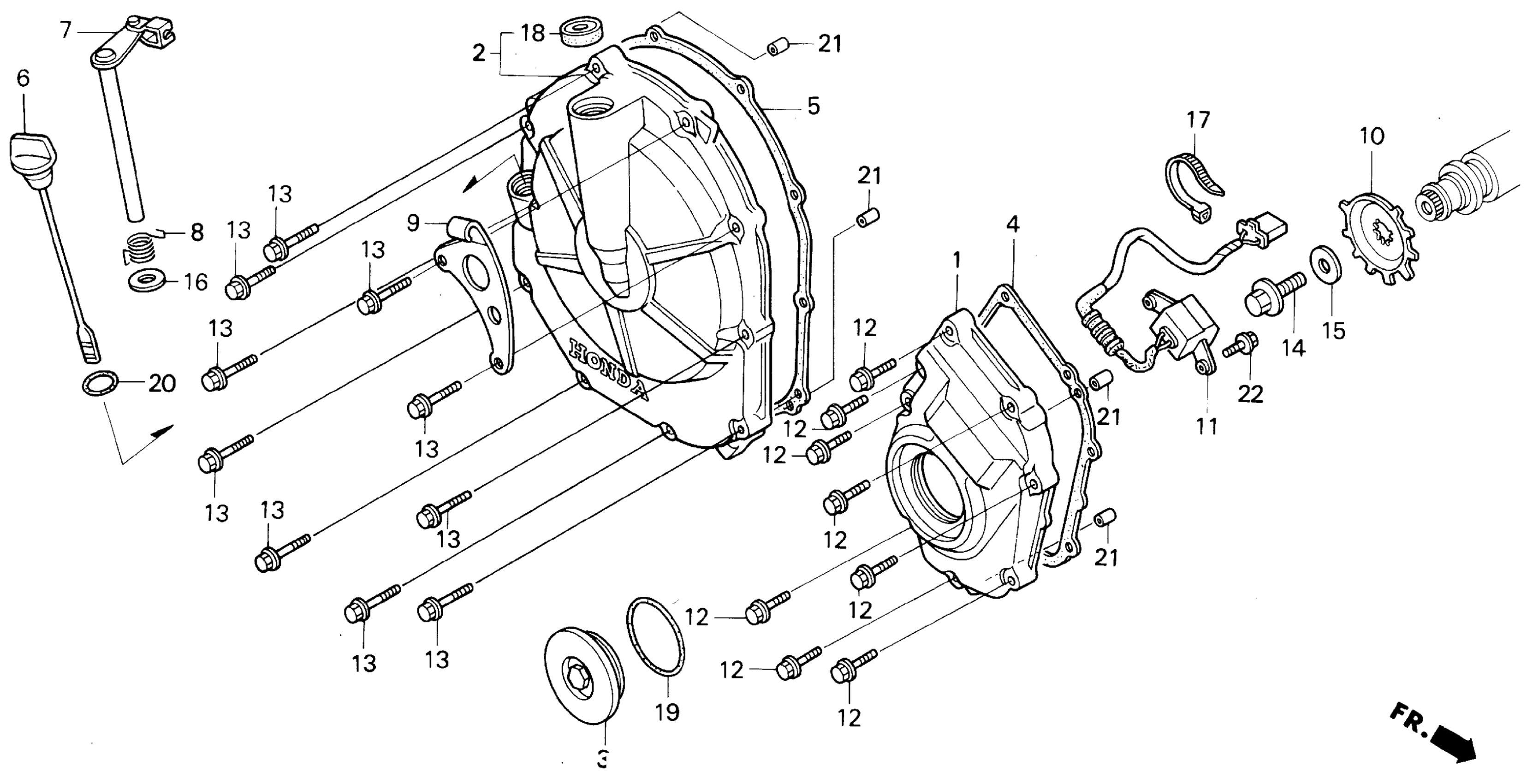

Honda CBR600F2A (92) SUPER SPORT, JPN, VIN# JH2PC250-NM100001 TO JH2PC250-NM107517 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, PULSER This part replaces 11311-MV9-670.

11311-MER-D00

Unavailable

1

COVER, PULSER This part replaces 11311-MAL-600.

11311-MER-D00

Unavailable

2

COVER, CLUTCH

11330-MV9-670

Unavailable

3

CAP (45MM)

11332-MM5-000

$24.01

4

GASKET, PULSER COVER

11391-MV9-670

$13.63

5

GASKET, CLUTCH COVER

11393-MV9-670

$22.65

6

DIPSTICK, OIL

15650-MV9-670

Unavailable

7

LEVER, CLUTCH

22810-MV9-670

Unavailable

8

SPRING, CLUTCH LEVER

22815-MV9-670

Unavailable

9

RECEIVER, CLUTCH CABLE

22821-MV9-670

Unavailable

10

ROTOR, PULSE | Use up to Engine SN 2116521 This part replaces 30291-MV9-670.

30291-MV9-671

Unavailable

10

ROTOR, PULSE

30291-MV9-671

Unavailable

11

GENERATOR ASSY., PULSE This part replaces 30300-MV9-670.

30300-MV9-671

Unavailable

11

GENERATOR ASSY., PULSE

30300-MV9-671

Unavailable

12

BOLT, FLANGE (6X28) (NSHF) This part replaces 90001-GHB-680.

90004-GHB-680

$3.33

12

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

13

BOLT, FLANGE (6X28) (NSHF) This part replaces 90001-GHB-680.

90004-GHB-680

$3.33

13

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

14

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

15

WASHER (10.5X27)

90405-KT7-000

$4.70

16

WASHER, BRAKE ARM

90525-GC4-700

$2.34

18

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

19

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

20

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

21

PIN, DOWEL (8X14)

94301-08140

$2.25

22

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
