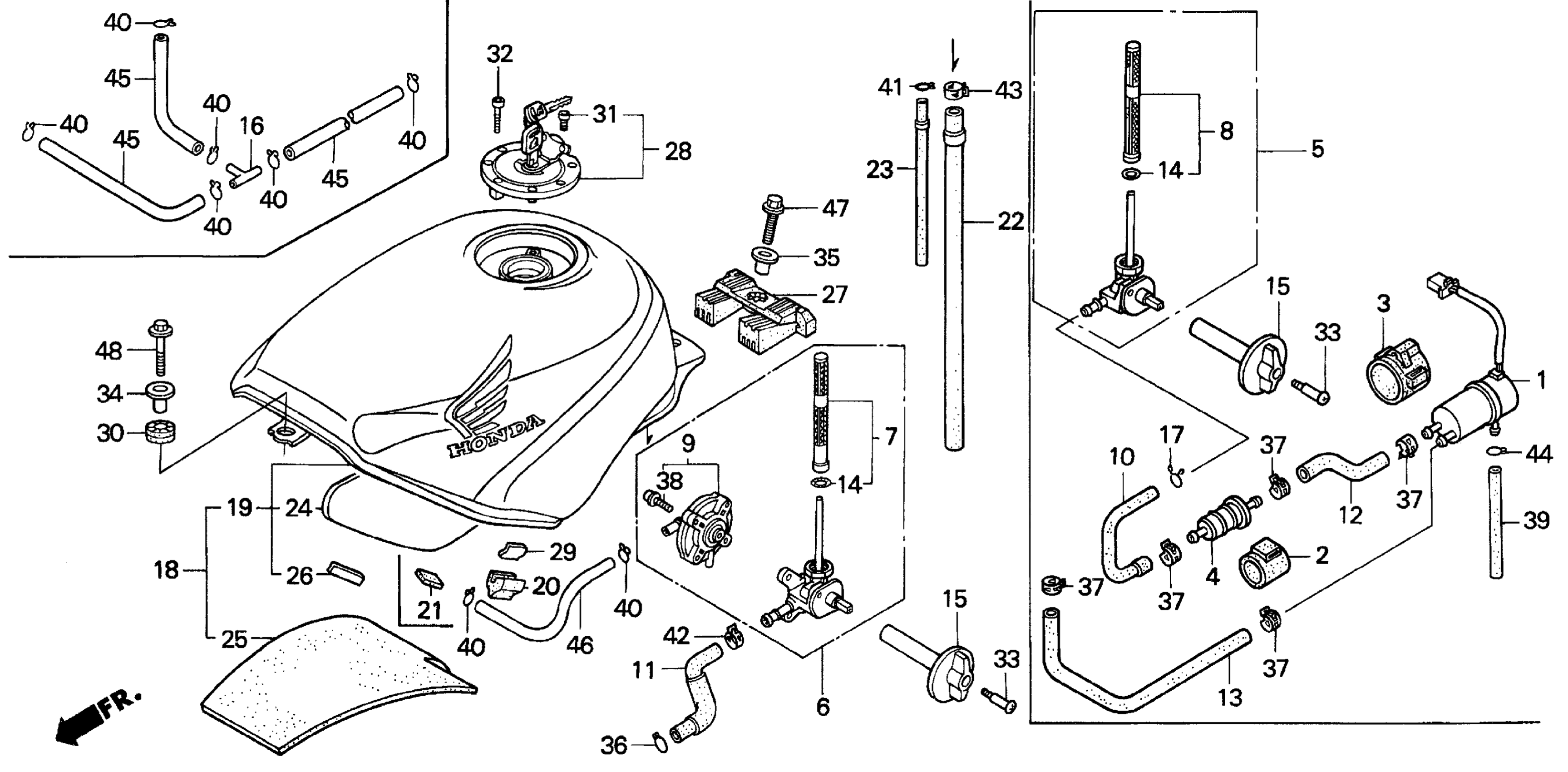

Honda CBR600F2A (92) SUPER SPORT, JPN, VIN# JH2PC250-NM100001 TO JH2PC250-NM107517 FUEL TANK Diagram

#

Description
Price

6

PETCOCK ASSY., AUTO This part replaces 16950-MV9-003.

16950-MV9-023

$307.44

6

PETCOCK ASSY., AUTO This part replaces 16950-MV9-013.

16950-MV9-023

$307.44

6

PETCOCK ASSY., AUTO This part replaces 16950-MV9-020.

16950-MV9-023

$307.44

6

PETCOCK ASSY., AUTO

16950-MV9-023

$307.44

6

PETCOCK ASSY., AUTO This part replaces 16950-MV9-030.

16950-MV9-023

$307.44

6

PETCOCK ASSY., AUTO This part replaces 16950-MV9-040.

16950-MV9-023

$307.44

7

SCREEN SET, FUEL STRAINER

16952-KAZ-000

$28.67

9

COVER SET, PETCOCK

16953-MBZ-B51

$52.66

9

COVER SET, PETCOCK This part replaces 16953-MV9-000.

16953-MBZ-B51

$52.66

11

TUBE, FUEL

16955-MV9-000

Unavailable

14

O-RING

16958-KM9-005

$3.89

15

LEVER, PETCOCK

16965-MV9-000

Unavailable

19

TANK SET, FUEL (TYPE10) (WL)

17506-MV9-630ZA

Unavailable

19

TANK SET, FUEL (TYPE11) (WL)

17506-MV9-630ZB

Unavailable

20

RUBBER, FUEL TANK

17516-KAZ-000

Unavailable

22

TUBE, DRAIN

17531-MV9-010

Unavailable

23

TUBE, BREATHER

17532-MV9-010

Unavailable

24

MAT, FUEL TANK MUFFLER

17541-MV9-300

Unavailable

26

TAPE B, TANK GUARD

17555-MS2-300

Unavailable

27

RUBBER, RR. FUEL TANK

17613-473-000

$25.42

28

CAP COMP.,FUEL FILL This part replaces 17620-MT4-010.

17620-MT4-040

$266.95

28

CAP COMP.,FUEL FILL This part replaces 17620-MT4-020.

17620-MT4-040

$266.95

28

CAP COMP.,FUEL FILL This part replaces 17620-MT4-030.

17620-MT4-040

$266.95

30

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

31

BOLT, SOCKET (4X6)

90073-MT4-000

$3.83

32

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

33

SCREW, PETCOCK LEVER SETTING

90116-KY6-000

$5.05

34

COLLAR, SETTING This part replaces 90501-MA3-770.

61104-422-000

$6.91

34

COLLAR, SETTING

61104-422-000

$6.91

35

COLLAR (8.8X11)

90551-MG7-000

$5.80

36

CLAMP, TUBE (12.0MM) (B)

90661-GHB-600

Unavailable

38

SCREW-WASHER (4X16)

93892-04016-08

$1.49

38

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

40

CLIP, TUBE (B7)

95002-02070

$1.80

41

CLIP, TUBE (B8)

95002-02080

$1.80

42

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

43

CLAMP, TUBE (D13)

95002-41300-08

$2.92

46

BULK HOSE, VACUUM (3.5X1000) (3.5X375)

95005-35001-20M

$9.67

47

BOLT, FLANGE (8X25)

95701-08025-07

$1.49

48

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
