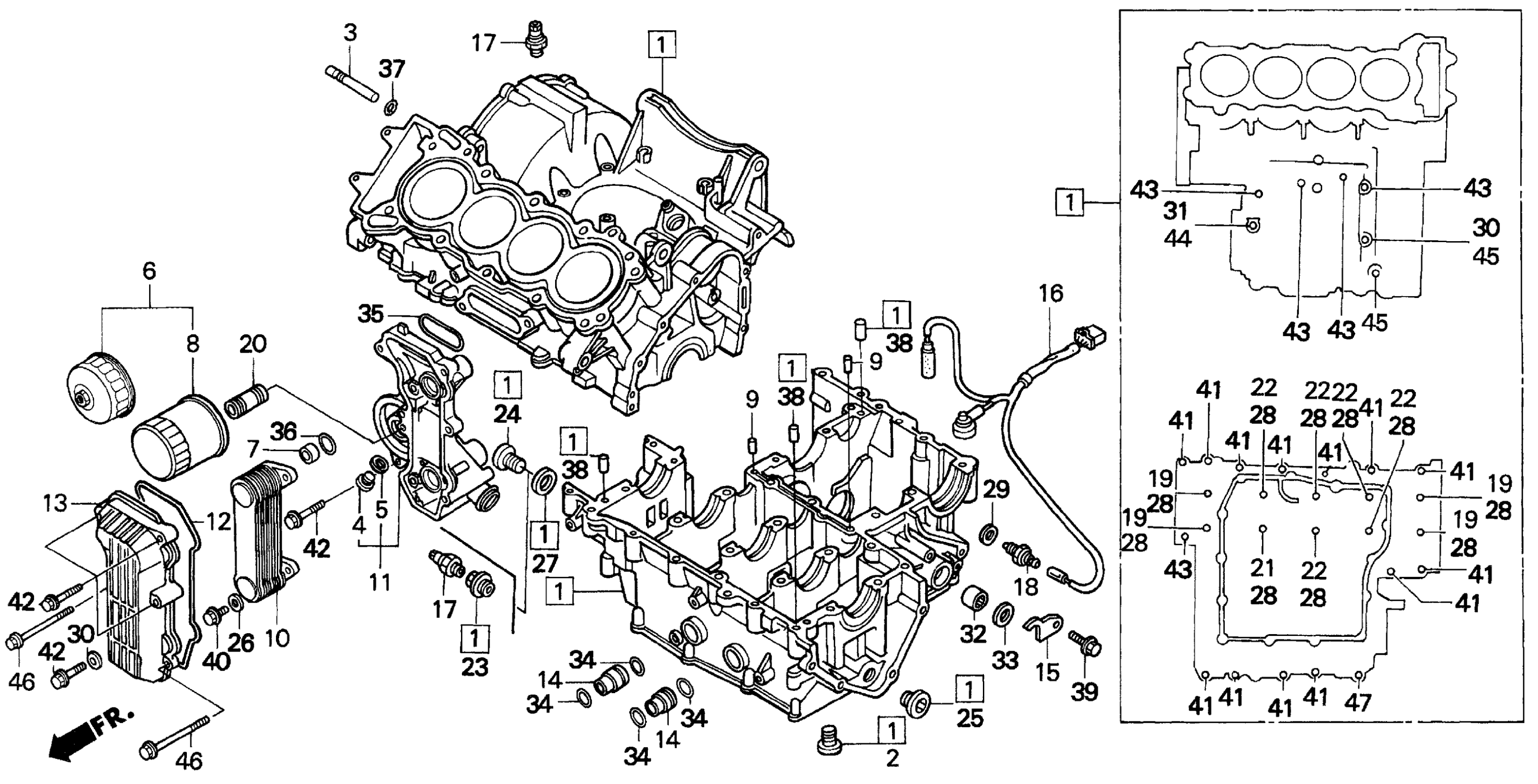

Honda CBR600F2A (92) SUPER SPORT, JPN, VIN# JH2PC250-NM100001 TO JH2PC250-NM107517 CRANKCASE SET Diagram

#

Description
Price

1

CRANKCASE SET

11000-MV9-630

Unavailable

2

BOLT, SEALING

11106-657-320

$9.16

3

ORIFICE (2.2MM)

11208-MV9-670

Unavailable

4

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

5

WASHER, SEALING BOLT

12207-611-300

Unavailable

6

FILTER SET, OIL | (Optional). Use from Engine SN 2116472 This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

6

FILTER SET, OIL | (Optional). Use from Engine SN 2116472 This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

7

COLLAR, OIL PASSAGE (20MM)

15328-MV9-670

$4.15

8

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 2116471 This part replaces 15410-MM9-003.

15410-MFJ-D02

$15.84

8

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

8

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

9

ORIFICE (1.2MM)

15515-KT8-000

$7.72

10

CORE, OIL COOLER This part replaces 15600-MV9-671.

15600-MAL-601

Unavailable

10

CORE, OIL COOLER

15600-MAL-601

Unavailable

11

BODY, OIL COOLER This part replaces 15610-MV9-630.

15610-MAL-600

Unavailable

11

BODY, OIL COOLER

15610-MAL-600

Unavailable

12

GASKET, OIL COOLER COVER

15615-MV9-670

$11.84

13

COVER, OIL COOLER

15621-MV9-670

Unavailable

14

COLLAR, OIL COOLER

15622-MV9-670

Unavailable

16

SUB-WIRE A

32101-MV9-670

Unavailable

17

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

18

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

19

BOLT, UBS (8X100) (NOT AVAILABLE)

90004-MV9-631

Unavailable

20

BOSS, OIL FILTER

90019-MB0-000

$8.61

21

BOLT, UBS (8X88)

90024-MAL-A00

$7.48

21

BOLT, UBS (8X88) This part replaces 90024-MV9-631.

90024-MAL-A00

$7.48

22

BOLT, UBS (8X75)

90041-MV9-631

Unavailable

24

BOLT, SEALING (20MM)

90048-MN5-000

$13.75

25

BOLT, SEALING (20MM)

90048-MN5-000

$13.75

26

WASHER, PLAIN (6.5X15)

90401-ZA0-000

$1.49

27

WASHER, SEALING (20MM)

90441-MN5-000

$5.08

28

WASHER, SEALING (8MM)

90442-028-000

$1.77

29

WASHER, NEUTRAL

90443-MJ6-000

$1.92

30

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

31

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

33

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

34

O-RING (17.3X2.4)

91304-PS5-003

$3.21

35

O-RING (50X2.5)

91305-KK3-830

$5.05

36

O-RING (19.8X2.4)

91310-PH7-000

$3.11

37

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

38

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

40

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

41

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

42

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

42

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

43

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

44

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

45

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

46

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

47

BOLT, FLANGE (10X75)

95701-10075-00

$2.44
