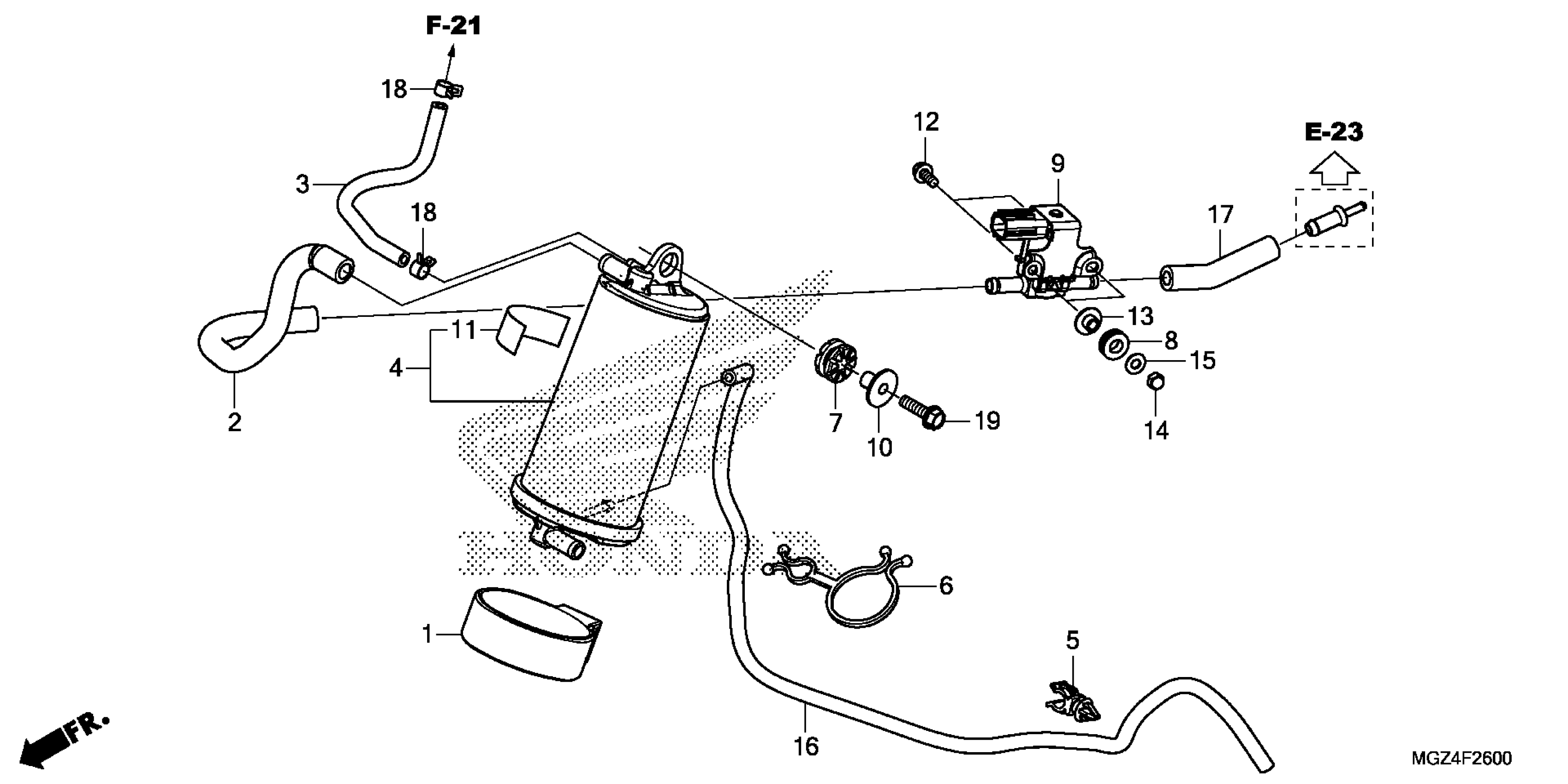

Honda CBR500RAC (13) MOTORCYCLE, THA, VIN# MLHPC441-D5000001 TO MLHPC441-D5099999 CANISTER Diagram

RUBBER, CANISTER MOUNT

17411-MGZ-A00

$6.04

TUBE (PCV-CANISTER)

17414-MGZ-A00

$9.68

TUBE, CANISTER

17418-MGZ-A00

$17.59

CANISTER This part replaces 17420-MGZ-A01.

17420-MGZ-A02

$227.41

CANISTER

17420-MGZ-A02

$227.41

CLIP, THROTTLE WIRE

17938-SE0-941

Unavailable

CLIP, PURSE LOCK

32109-MCF-000

$3.19

RUBBER, HEADLIGHT

33115-KVK-900

$1.32

RUBBER, PURGE CONTROL SOLENOID

36037-MGZ-A00

$1.49

VALVE, PURGE CONTROL SOLENOID

36162-PZA-003

$219.68

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.01

TAPE, COVER

64382-MM5-300

$2.44

BOLT, FLANGE (5X12)

90002-KWB-600

$0.87

COLLAR

90505-MGZ-A00

$1.60

NUT, CAP (5MM)

94021-05000-0S

$0.81

WASHER, PLAIN (5MM)

94103-05800

$0.91

BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M)

95001-45003-60M

$44.94

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$114.24

CLAMP, TUBE (D8)

95002-40800-08

$2.07

BOLT, FLANGE (6X22)

95701-06022-08

$1.79
