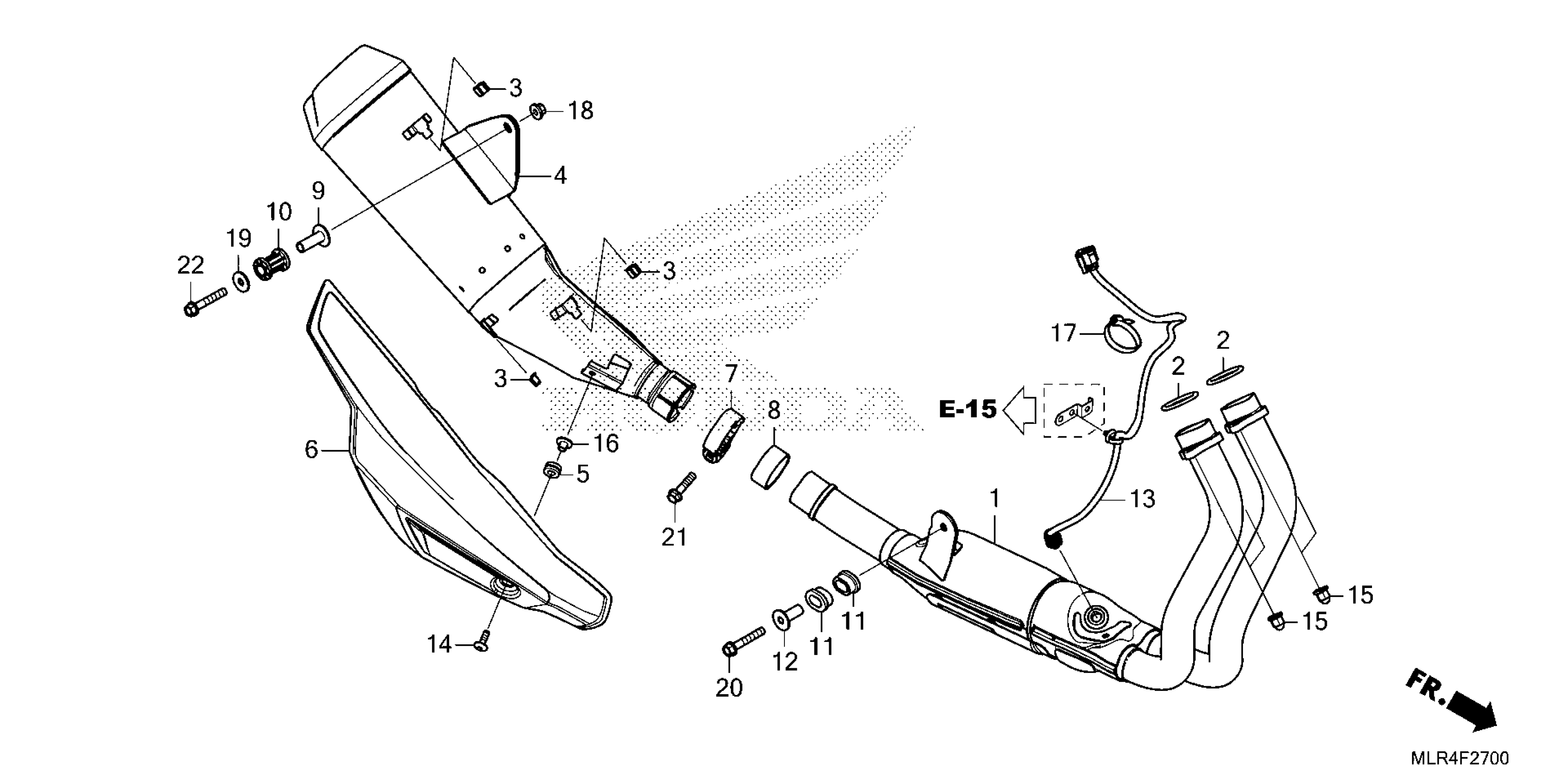

Honda CBR500RAAC (25) MOTORCYCLE, THA, VIN# MLHPC705-S5100001 TO MLHPC705-S5199999 MUFFLER Diagram

PIPE, EX.

18150-MLR-T00

$813.00

GASKET, EX. PIPE

18291-MN4-920

$5.07

RUBBER, PROTECTOR

18293-MN0-000

$1.97

MUFFLER COMP

18310-MKP-DN1

$279.78

RUBBER A, PROTECTOR

18320-196-000

$2.47

COVER, MUFFLER

18350-MJW-J00

$94.81

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$33.70

GASKET, MUFFLER

18391-MJW-J01

$9.89

COLLAR, MUFFLER MOUNTING

18420-MGZ-J00

$4.78

RUBBER, MUFFLER MOUNTING

18421-MGZ-J00

$1.72

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$8.12

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$4.57

SENSOR, AIR FUEL RATIO

36533-MKP-D01

$147.87

SCREW, PAN (6X20)

90118-MGZ-J00

$0.99

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.57

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.96

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

WASHER, PLAIN (8MM)

94103-08000

$0.60

BOLT, FLANGE (8X50)

95701-08050-08

$2.19

BOLT, FLANGE (8X35)

96400-08035-04

$0.59

BOLT, FLANGE (8X50)

96400-08050-08

$0.88
