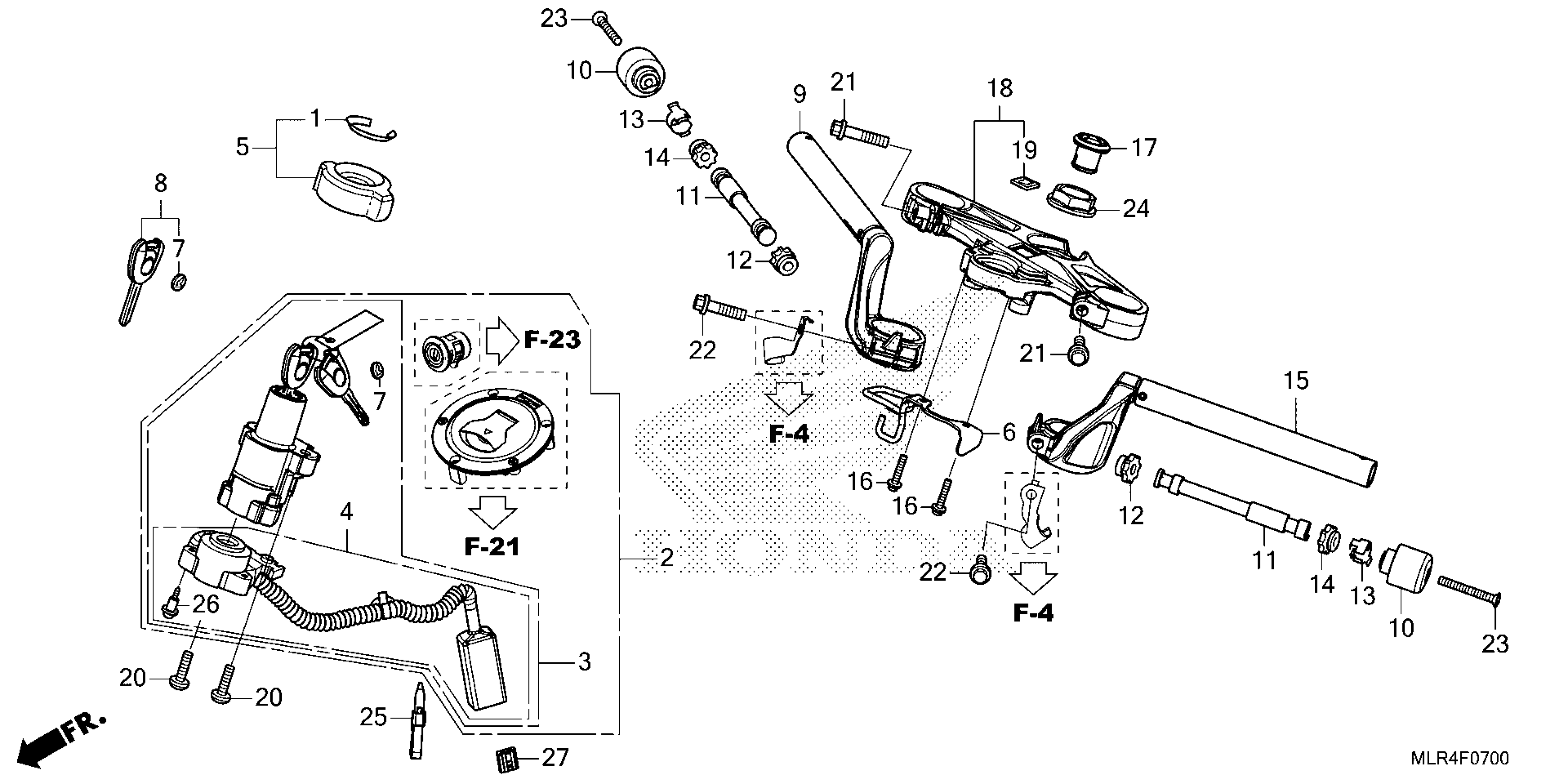

Honda CBR500RAAC (25) MOTORCYCLE, THA, VIN# MLHPC705-S5100001 TO MLHPC705-S5199999 HANDLEBAR@TOP BRIDGE Diagram

SEAL, IGNITION SWITCH

30433-MBW-602

$2.58

LOCK SET

35010-MJW-A04

$211.70

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$149.04

BASE, CONTACT

35101-MJW-D11

$40.01

COVER, COMBINATION SWITCH

35106-MKP-A00

$3.67

GUIDE, CABLE

35106-MKP-J00

$11.91

EMBLEM, KEY | (Optional).

35113-MJE-D00

$19.80

KEY, BLANK | (Optional).

35121-MJE-A02

$19.74

HANDLEBAR, R.

53100-MKP-DN0

$55.49

WEIGHT, HANDLEBAR

53104-MGZ-J00

$9.44

WEIGHT B, HANDLEBAR

53105-MGZ-J00

$7.92

RUBBER, HANDLE WEIGHT (B)

53107-KM9-000

$3.64

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.78

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.43

HANDLEBAR, L.

53150-MLR-D00

$51.29

SCREW-WASHER (5X25)

53192-MFL-000

$1.68

CAP, STEERING NUT

53232-K94-T00

$2.00

BRIDGE, FORK TOP

53300-MKP-DN0

$92.72

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.67

BOLT, FLANGE (8X35)

90112-MGZ-J00

$0.97

SCREW, OVAL (6X50)

90191-KYJ-900

$0.90

NUT, STEERING STEM FLANGE

90304-MCF-000

$9.83

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

HOLDER, BRACKET (RED)

91554-SM4-003

$7.12
