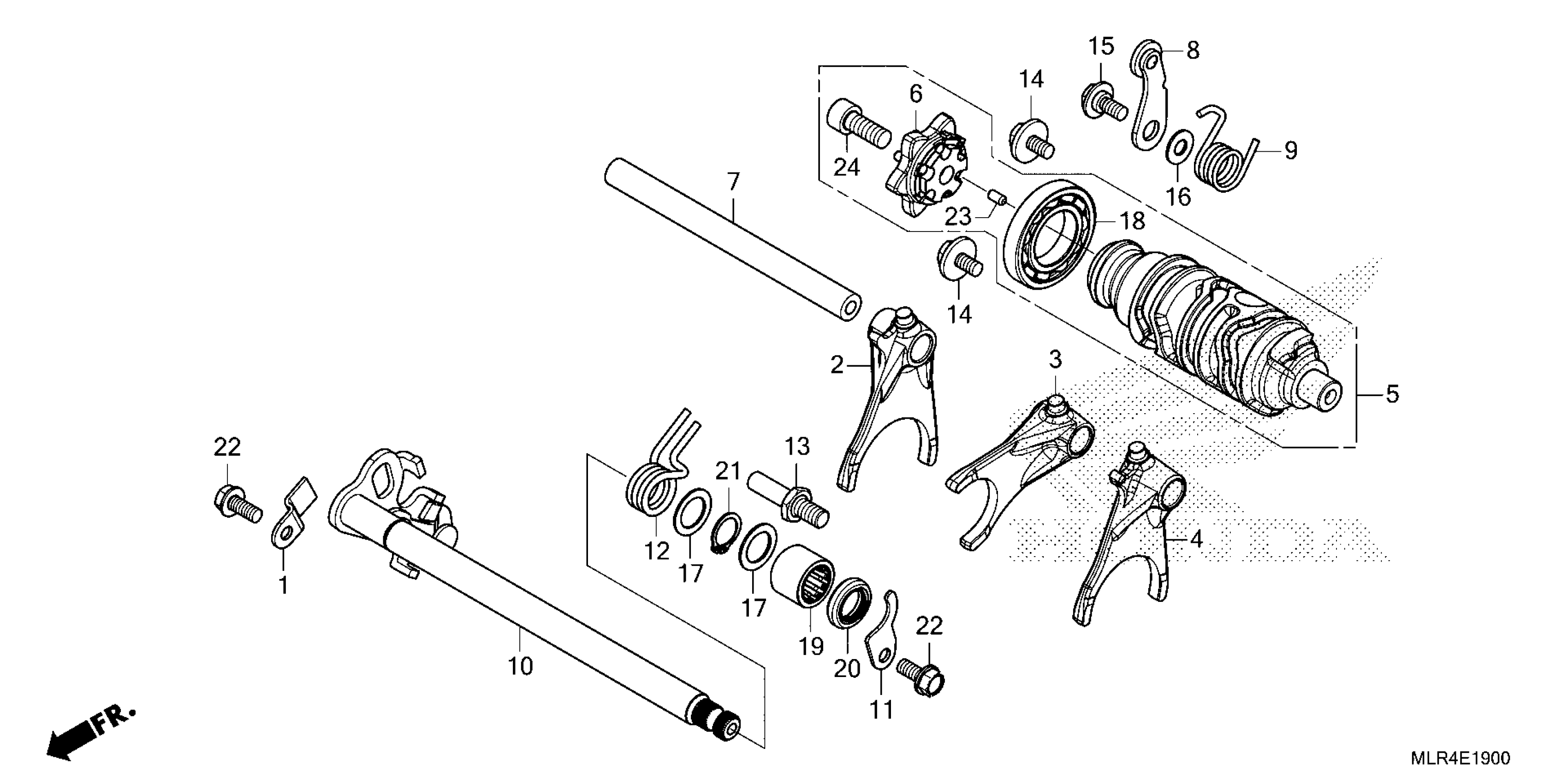

Honda CBR500RAAC (25) MOTORCYCLE, THA, VIN# MLHPC705-S5100001 TO MLHPC705-S5199999 GEARSHIFT DRUM Diagram

PLATE, TENSIONER SETTING

14623-MV1-000

$4.87

FORK, R. GEARSHIFT

24211-MGZ-J00

$25.56

FORK, CENTER GEARSHIFT

24212-MGZ-J00

$25.26

FORK, L. GEARSHIFT

24213-MGZ-J00

$25.21

DRUM, GEARSHIFT

24310-MLR-D00

$56.23

CENTER, SHIFT DRUM

24315-MLR-D00

$17.05

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

STOPPER, GEARSHIFT DRUM

24430-MGZ-J00

$8.49

SPRING, SHIFT DRUM STOPPER

24435-MJE-D00

$1.80

SPINDLE, GEARSHIFT

24610-MGZ-J00

$43.79

PLATE, SPINDLE

24612-MAL-600

$9.75

SPRING, SHIFT RETURN

24651-MAS-E00

$5.89

PIN, SHIFT RETURN SPRING

24652-MGZ-J00

$1.72

BOLT-WASHER (6X12)

90021-MGZ-J00

$4.23

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$1.49

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14MM)

90451-155-000

$3.78

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$17.30

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$17.30

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$11.31

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
