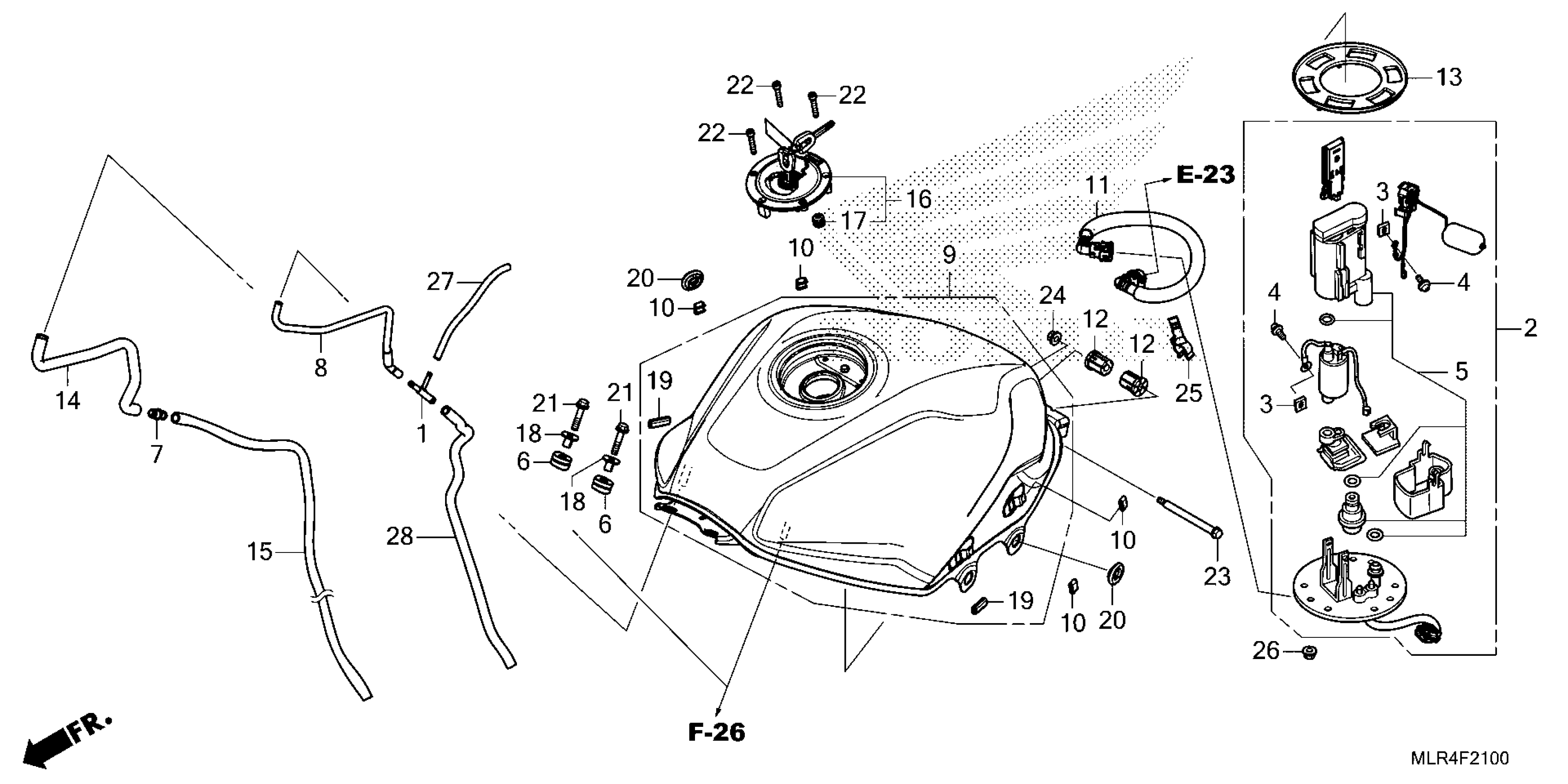

Honda CBR500RAAC (25) MOTORCYCLE, THA, VIN# MLHPC705-S5100001 TO MLHPC705-S5199999 FUEL TANK@FUEL PUMP Diagram

UNIT, FUEL PUMP

16700-MKP-J02

$559.08

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK ASSY., FUEL *NH436M* (WL) (MAT GUNPOWDER BLACK METALLIC)

17500-MLR-D00ZC

Unavailable

RUBBER, TANK COVER

17529-K15-920

$2.20

HOSE, FUEL FEED

17570-MJW-J01

$48.59

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.38

GASKET, BASE

17574-MGS-D30

$24.44

TUBE, FUEL TANK DRAIN

17590-MGZ-J00

$8.90

TUBE, FUEL TANK DRAIN

17591-MJW-J00

$6.03

CAP COMP

17620-MJE-D04

$209.19

SEAL, BREATHER

17621-MGP-D62

$5.14

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

RUBBER, PROTECTOR

64122-MCZ-000

$1.80

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BOLT, FLANGE (6X25)

90013-GHB-670

$2.33

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

BOLT, TANK HINGE

90135-MS2-000

$6.22

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.33

NUT, FLANGE (6MM)

94050-06000

$1.49
