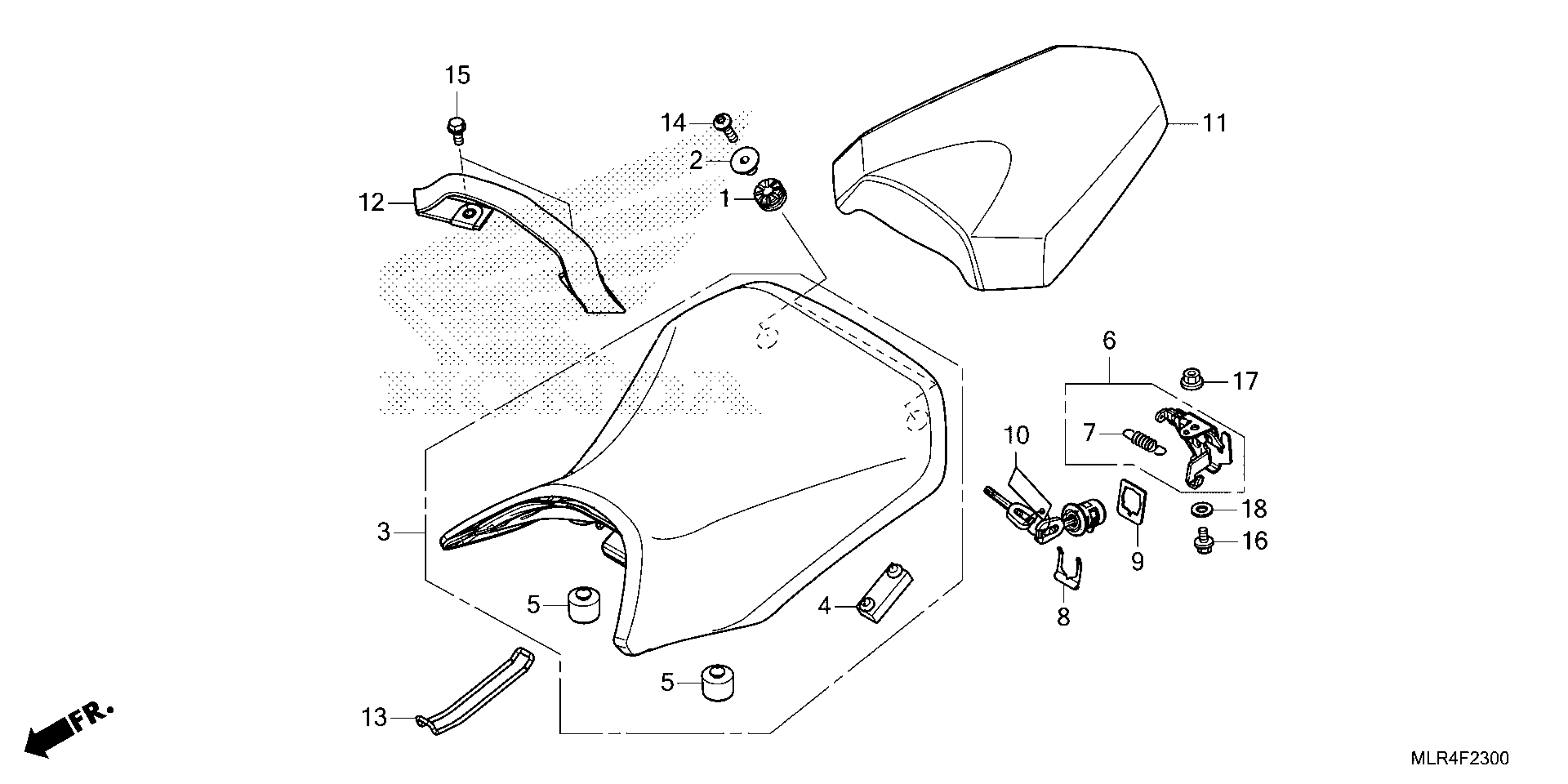

Honda CBR500RAAC (24) MOTORCYCLE, THA, VIN# MLHPC705-R5000001 TO MLHPC705-R5099999 SEAT Diagram

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.20

COLLAR, TAILLIGHT MOUNTING

33706-KAN-960

$0.65

SEAT ASSY., SINGLE (TYPE1)

77100-MJW-J02ZA

$81.58

RUBBER, SEAT SETTING

77205-MFE-670

$5.51

RUBBER, SEAT CUSHION

77206-MJE-DB0

$2.88

LOCK, SEAT

77220-MJW-J01

$17.38

SPRING, SEAT LOCK

77234-GN2-000

$3.66

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.42

WASHER, SEAT LOCK

77236-MGP-D60

$2.19

KEY, SEAT LOCK

77239-MJW-J03

$127.25

SEAT ASSY., PILLION

77300-MKP-DN1

$108.64

SEAT BELT

77310-MJW-J00

$15.64

BAND, TOOL

83606-KWS-901

$3.16

BOLT, SPECIAL (6X23.5)

90003-KWN-900

$0.83

BOLT, FLANGE (6X14)

90102-KTM-D20

$0.49

BOLT, FLANGE (6X12)

90130-ML0-730

$2.77

NUT, FLANGE (6MM)

94050-06080

$0.59

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable
