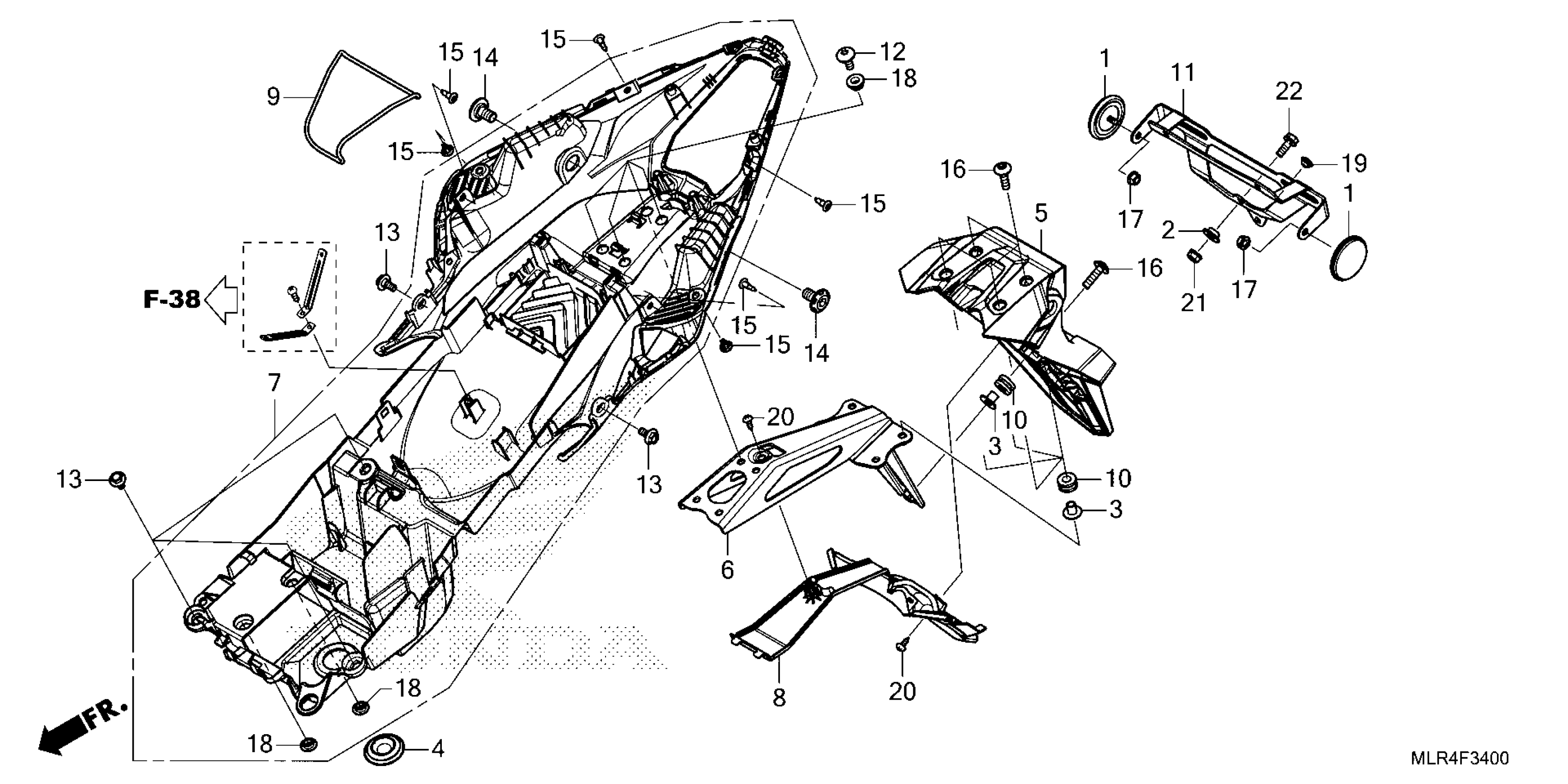

Honda CBR500RAAC (24) MOTORCYCLE, THA, VIN# MLHPC705-R5000001 TO MLHPC705-R5099999 REAR FENDER Diagram

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$21.46

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.76

COLLAR A, FR. FENDER

61103-KRY-900

$1.16

GROMMET, PANEL (INNER)

64285-MKP-J00

$1.17

FENDER SET A, RR. (TYPE1) (WL)

80100-MKP-A00ZA

$15.23

BRACKET, FENDER A

80102-MJW-J00

$56.55

FENDER ASSY. B, RR.

80104-MLR-D00

$35.19

COVER, RR. FENDER

80106-MJW-J00

$6.49

BAND, TOOL

80123-GN5-900

$2.43

RUBBER, SIDE COVER

83545-KCJ-690

$1.28

BRACKET, NUMBER PLATE

84700-KYJ-920

$15.23

BOLT, SPECIAL (6X16)

90107-K26-900

$0.97

BOLT, FLANGE (6MM)

90111-MKP-DN0

$0.97

BOLT, SPECIAL (10X16)

90115-MKP-J00

$1.65

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

SCREW, PAN (6X22)

90130-MKP-J00

$1.17

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

COLLAR, MOUNTING

90503-MJE-D40

$2.75

PLUG, HOLE

90852-446-630

$2.33

SCREW, TAPPING (4X12)

93903-24380

Unavailable

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X14)

96001-06014-07

$1.09
