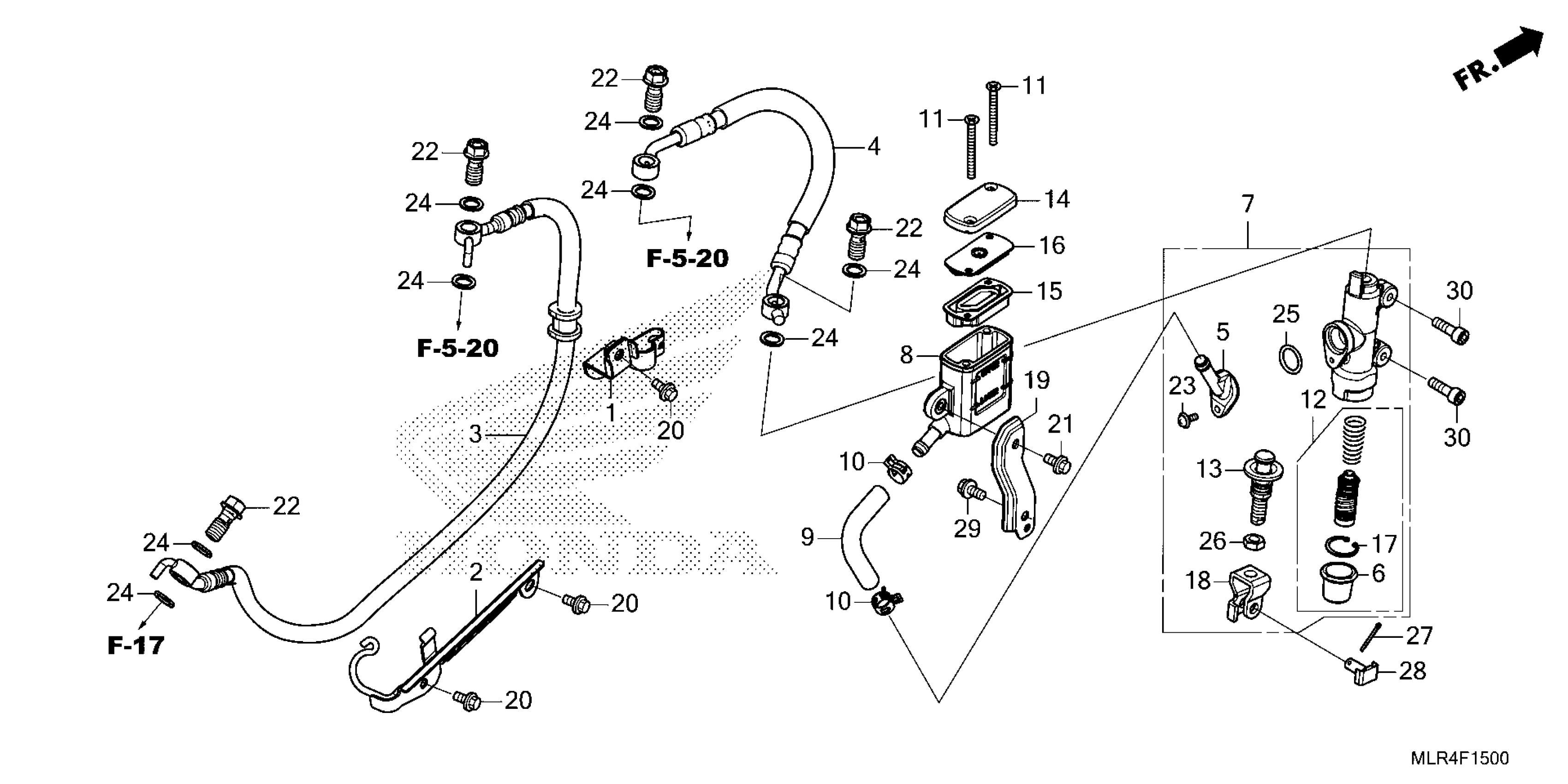

Honda CBR500RAAC (24) MOTORCYCLE, THA, VIN# MLHPC705-R5000001 TO MLHPC705-R5099999 REAR BRAKE MASTER CYLINDER Diagram

CLAMP A, RR. BRAKE

43155-MKP-DN0

$3.04

STAY B, RR. BRAKE

43156-MKP-J00

$10.91

HOSE A, RR. BRAKE

43310-MKP-DN1

$18.58

HOSE B, RR. BRAKE

43313-MKP-DN1

$17.51

CONNECTOR, MASTER CYLINDER (NISSIN)

43503-MN5-006

$13.19

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MKP-J01

$102.33

CUP, OIL

43511-MKP-J01

$5.94

HOSE, RR. MASTER CYLINDER

43512-MKP-J01

$5.93

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

SCREW, FLAT (4X60)

43516-KYJ-901

$0.83

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

ROD, PUSH

43530-KV3-701

$18.06

CAP, MASTER CYLINDER

45513-K33-D01

$15.00

DIAPHRAGM

45520-GW0-911

$6.78

PLATE, DIAPHRAGM

45521-GW0-911

$5.34

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-KV6-702

$7.30

STAY, OIL CUP

50279-MKP-J00

$8.10

BOLT, FLANGE (6X10)

90013-GHB-600

$4.07

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.12

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

SCREW-WASHER (4X12)

90508-K21-921

$0.23

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

BOLT, SOCKET (6X20)

96600-06020-08

$11.06
