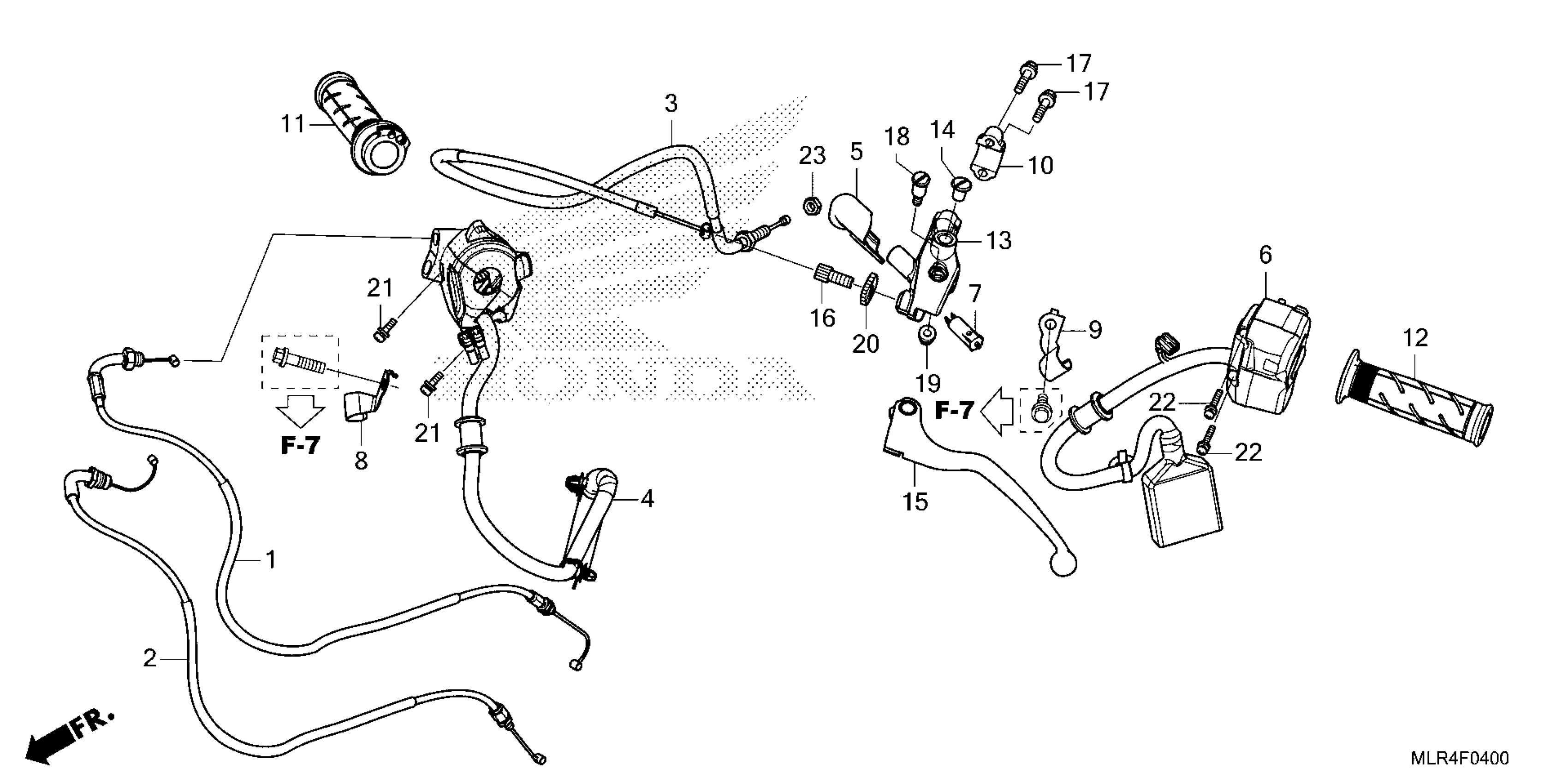

Honda CBR500RAAC (24) MOTORCYCLE, THA, VIN# MLHPC705-R5000001 TO MLHPC705-R5099999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MLR-D01

$10.87

CABLE B, THROTTLE

17920-MLR-D01

$9.51

CABLE, CLUTCH

22870-MKP-DN1

$8.43

SWITCH, ENGINE STOP

35130-MKP-DN1

$80.03

COVER, CLUTCH SWITCH

35152-MGZ-J00

$2.00

SWITCH, TURN SIGNAL

35200-MLR-D01

$131.84

SWITCH, FR. LEVER

35330-KYJ-901

$6.80

STAY, CLAMP (R)

35910-MKP-J00

$6.05

STAY, CLAMP (L)

35920-MKP-J00

$6.05

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP, THROTTLE

53140-MGS-D30

$28.33

GRIP, L. HANDLE

53150-MGS-D30

$12.11

BRACKET, HANDLE LEVER

53172-KYJ-900

$14.31

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

LEVER, L. HANDLE

53178-MKP-J00

$13.63

BOLT, WIRE ADJUSTING

53192-MJE-D00

$4.51

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X20)

90507-MGZ-J00

$1.49

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49
