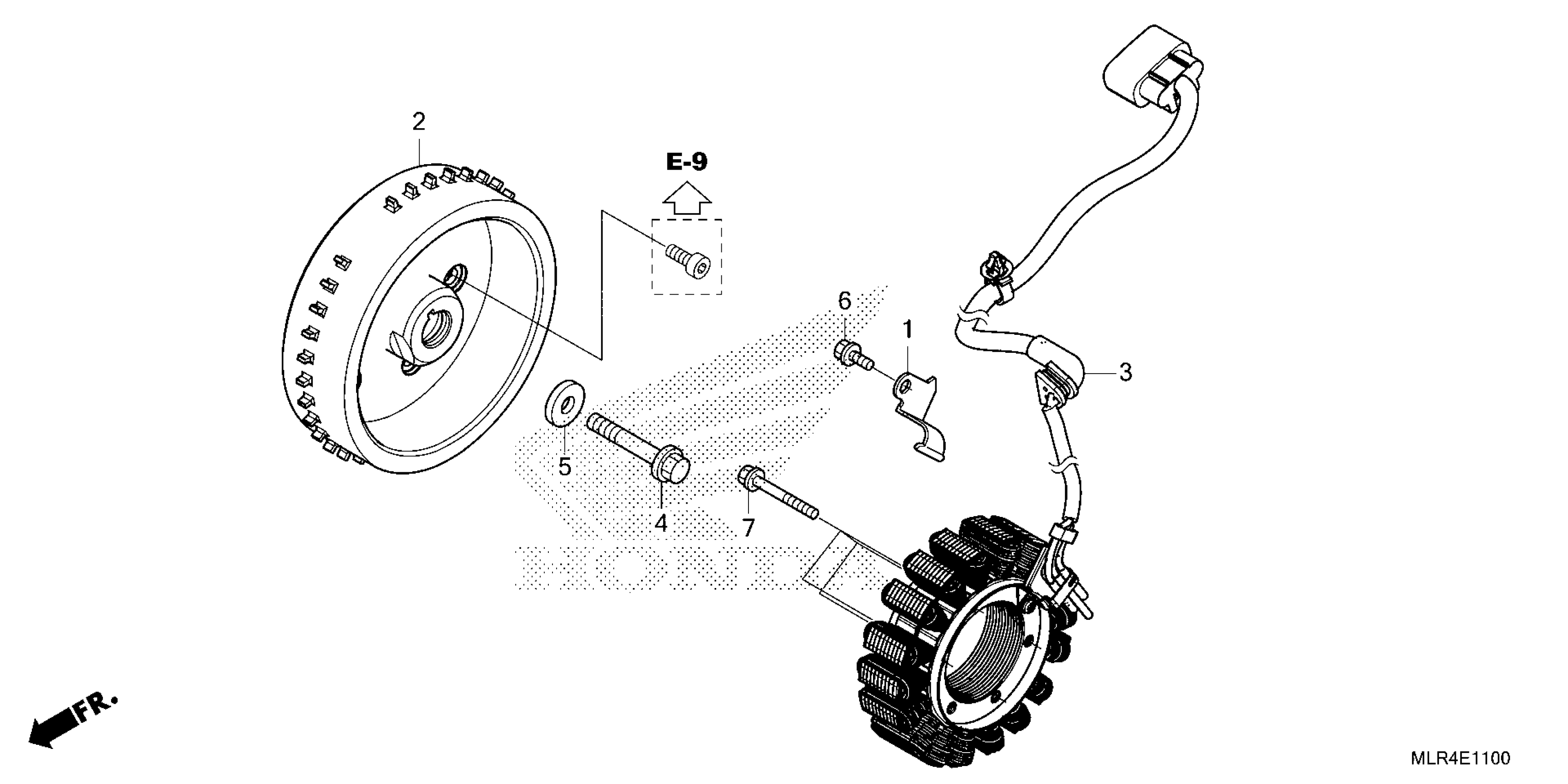

Honda CBR500RAAC (24) MOTORCYCLE, THA, VIN# MLHPC705-R5000001 TO MLHPC705-R5099999 GENERATOR Diagram

#

Description

Price

1

CLAMP, ALTERNATOR CORD

11333-MKP-D00

$1.09

2

FLYWHEEL

31110-MKP-DN1

$259.19

3

STATOR (MITSUBA)

31120-MKP-D01

$121.29

4

BOLT, FLANGE (12X50)

90023-KYJ-900

$1.88

5

WASHER (12.5X30X5)

90401-KCY-670

$7.44

6

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

7

BOLT, FLANGE (6X40)

96001-06040-00

$1.97
