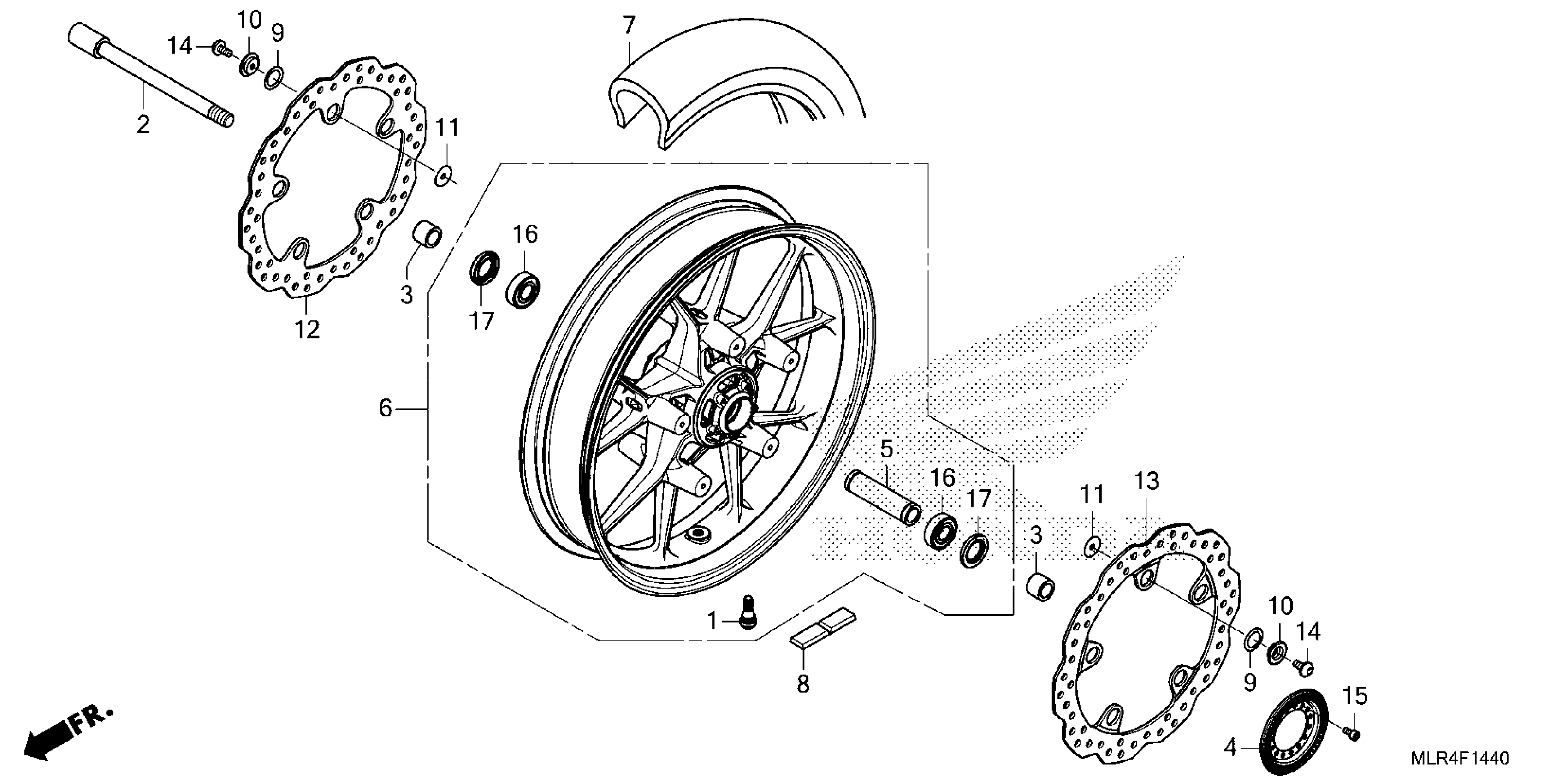

Honda CBR500RAAC (24) MOTORCYCLE, THA, VIN# MLHPC705-R5000001 TO MLHPC705-R5099999 FRONT WHEEL Diagram

VALVE, RIM (IRC)

42753-GM9-743

$7.79

AXLE, FR. WHEEL

44301-MKP-DN0

$21.61

COLR, FR. WHEEL SIDE

44311-MKP-DN0

$7.41

RING, FR. PULSER

44515-MKP-DN0

$34.04

COLLAR, FR.

44620-MKP-DP0

$8.10

WHEEL SUB-ASSY., FR.

44650-MKP-DP1

$235.90

TIRE, FR. (120/70ZR17) (M/C 58W) (MICHELIN)

44711-MLR-D01

$257.90

WEIGHT, BALANCE (10G) | Use up to Frame SN R5000480.

44721-MGH-H21

$3.00

WEIGHT, BALANCE (10G) | Use from Frame SN R5000481.

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G) | Use up to Frame SN R5000480.

44722-MGH-H21

$3.59

WEIGHT, BALANCE (15G) | Use from Frame SN R5000481.

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G) | Use up to Frame SN R5000480.

44723-MGH-H21

$3.70

WEIGHT, BALANCE (20G) | Use from Frame SN R5000481.

44723-MLN-EQ1

$3.70

SPRING, FR. DISK

45223-MLR-D01

$1.46

COLLAR, FR. DISK

45225-MLR-D00

$2.91

WASHER, FR. DISK

45226-MGC-000

$4.56

DISK, R. FR. BRAKE

45251-MKP-DN1

$108.51

DISK, L. FR. BRAKE

45351-MKP-DN1

$108.51

BOLT (6X13)

90105-MLR-D00

$0.91

BOLT, SOCKET (5X10)

90131-K87-L50

$0.52

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-KVK-901

$8.37

DUST SEAL (25X40X5)

91252-K35-V01

$1.96
