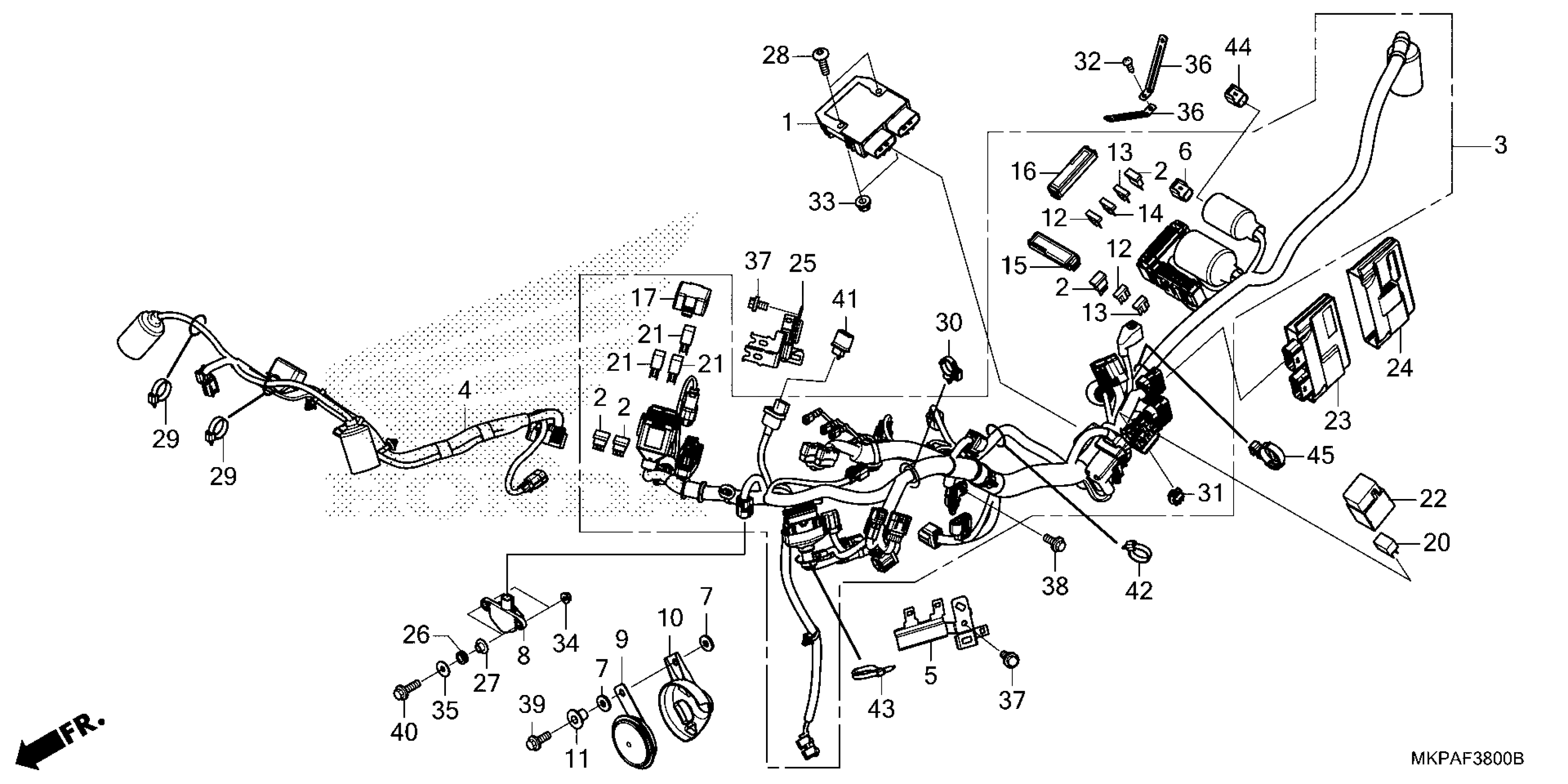

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MKP-AN0

$1,204.57

SUB-HARNESS, FR.

32103-MKP-AN0

$95.84

STAY, CONNECTOR

32206-MGZ-J00

$8.05

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

HORN (HIGH)

38110-MGZ-J01

$28.62

HEAT GUARD, HORN

38111-MGZ-J00

$4.31

COLLAR, HORN SETTING

38117-MGZ-J00

$1.79

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

FUSE, BLADE (30A)

38221-SNA-A81

$2.49

COVER (UPPER)

38255-MKP-T00

$19.08

COVER (UPPER)

38256-MKP-T00

$19.08

COVER, RELAY BOX

38281-MGZ-J01

$15.07

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

COVER, RELAY (2P)

38506-KZZ-900

$3.72

PGM-FI UNIT

38770-MKP-AN2

$505.21

CUSHION, PGM-FI UNIT

38774-MKP-D00

$4.03

STAY, RELAY BOX

50194-MJW-J00

$9.56

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

SCREW, PAN (6X25)

90135-K87-A00

$1.49

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

CLIP (4X90)

94591-49000

$3.01

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

CLIP, HARNESS

90651-MKP-DN1

$1.85
