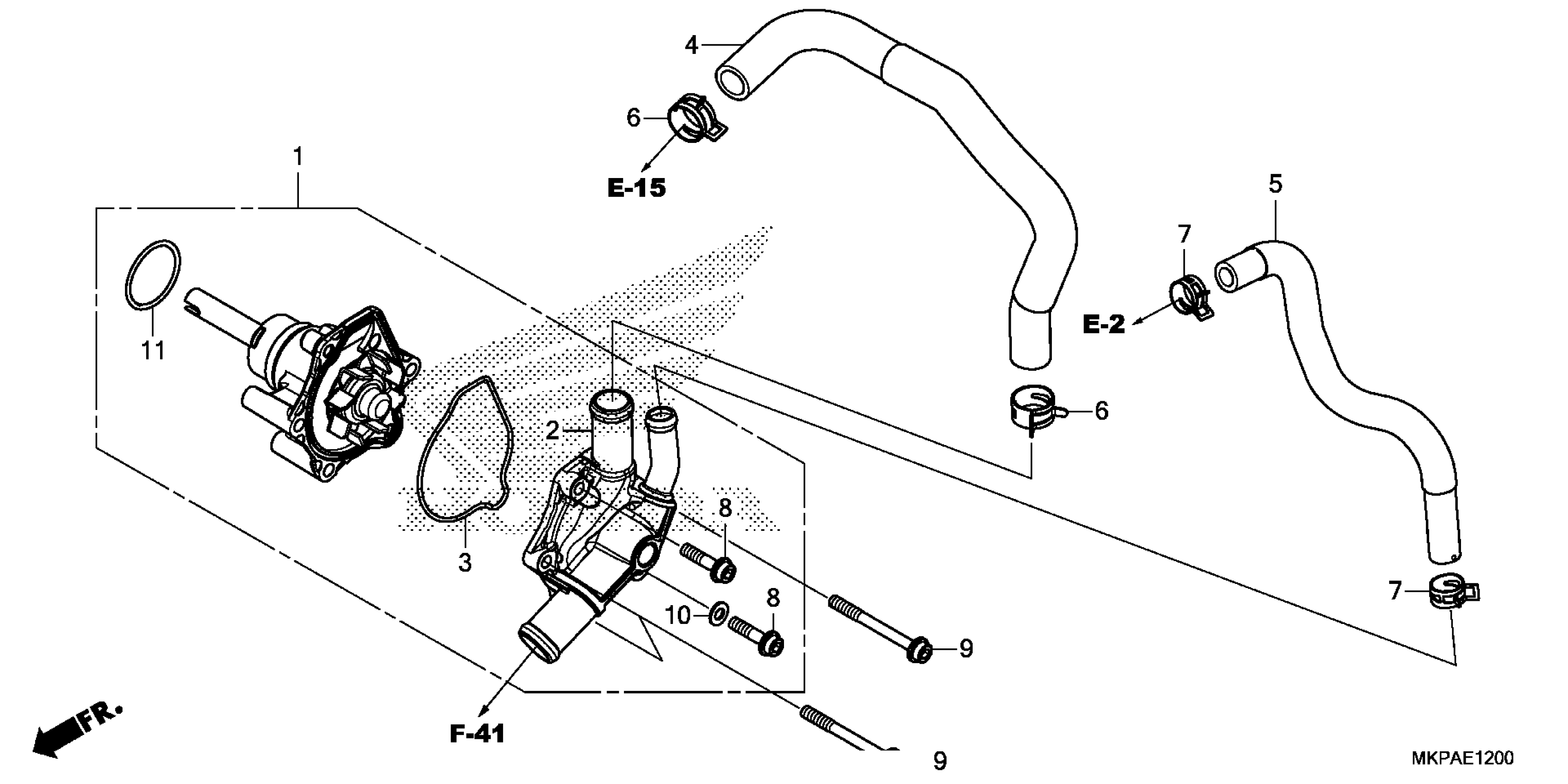

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP

19200-MKP-305

$135.25

2

COVER, WATER PUMP

19220-MGZ-J00

$86.97

3

GASKET, WATER PUMP BODY

19226-MGZ-J00

$5.10

4

HOSE A, WATER

19525-MKP-D00

$36.69

5

HOSE, WATER BYPASS

19526-MKP-D00

$29.20

6

CLIP, WATER HOSE (D27)

19531-MJW-J00

$1.93

7

CLIP, WATER HOSE (D21)

19535-MJW-J00

$1.49

8

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.49

9

BOLT, FLANGE (6X60)

90028-GHB-780

$1.49

10

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

11

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92
