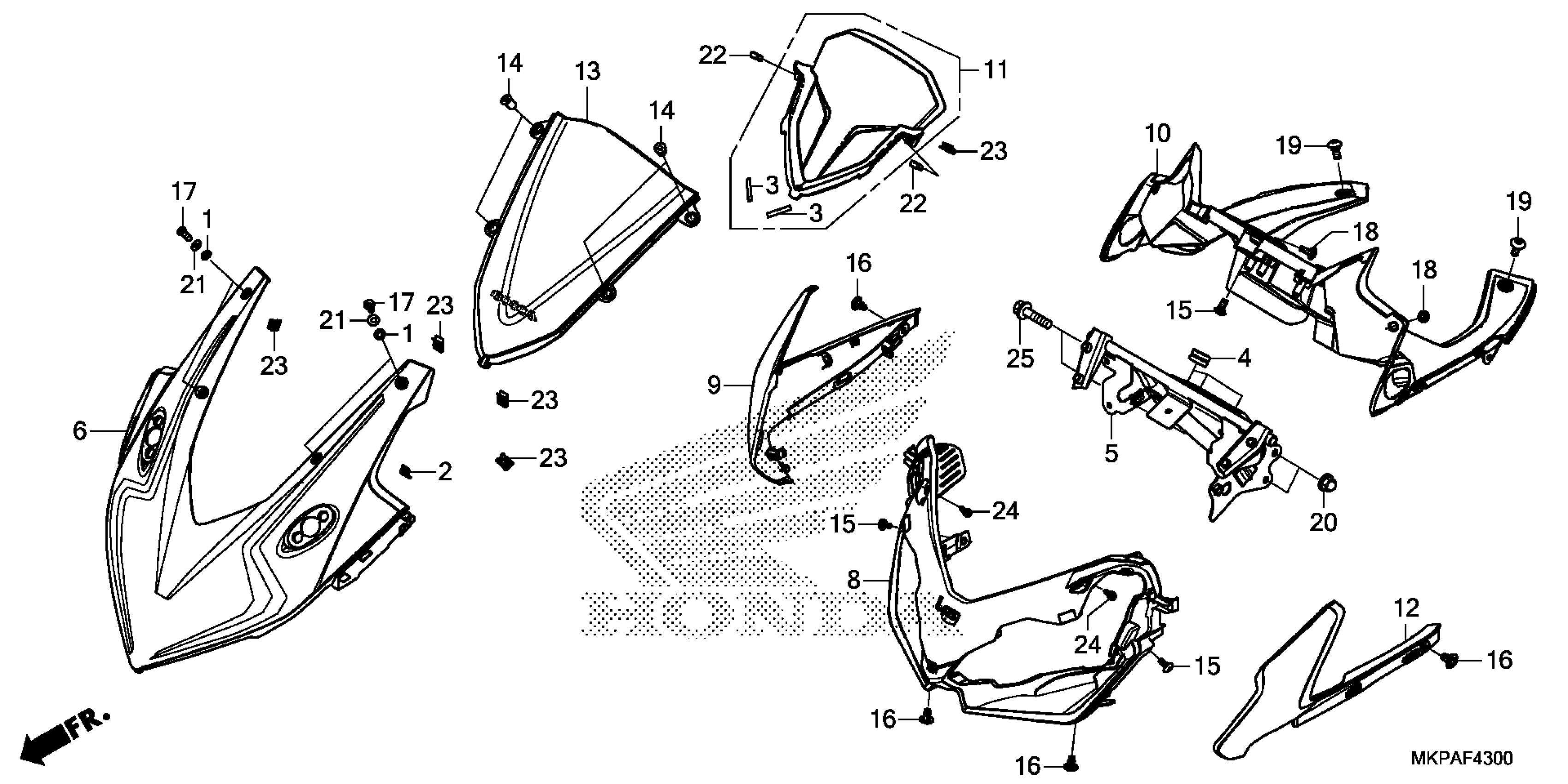

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 UPPER COWL Diagram

#

Description
Price

1

WASHER, SCREEN SETTING

64205-166-610

$2.01

2

CLIP, TWIST

64213-MJN-A01

$1.78

3

FILM, PROTECTOR

64215-MJC-A00

$3.26

4

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.16

5

STAY, FR. COWL

64221-MKP-DN0

$49.30

6

COWL, FR. (TYPE1)

64230-MKP-DN0ZC

$39.76

6

COWL, FR. (TYPE3)

64230-MKP-DN0ZD

$42.77

8

COVER, FR. (LOWER)

64241-MKP-J00

$20.75

9

COWL, R. FR. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64251-MKP-J00ZA

$23.60

10

PANEL, METER

64261-MKP-J00

$32.62

11

VISOR, METER

64262-MKP-J00

$19.28

12

COWL, L. FR. SIDE *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64351-MKP-J00ZA

$23.60

13

WINDSCREEN SET (TYPE1) (WL)

67110-MKP-J00ZA

$67.52

14

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

15

SCREW, VISOR SPECIAL SETTING

90104-K26-B00

Unavailable

16

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

17

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.32

18

SCREW, PAN (5X14)

90132-MJE-D40

Unavailable

19

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

20

NUT, CAP (8MM)

90443-KTM-970

$0.70

21

WASHER, THRUST (5MM)

90504-964-000

$1.72

22

CLIP, SLIDE

90651-K14-A31

Unavailable

23

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

24

SCREW, TAPPING (4X12)

93903-24380

Unavailable

25

BOLT, FLANGE (8X32)

95801-08032-00

$1.88
