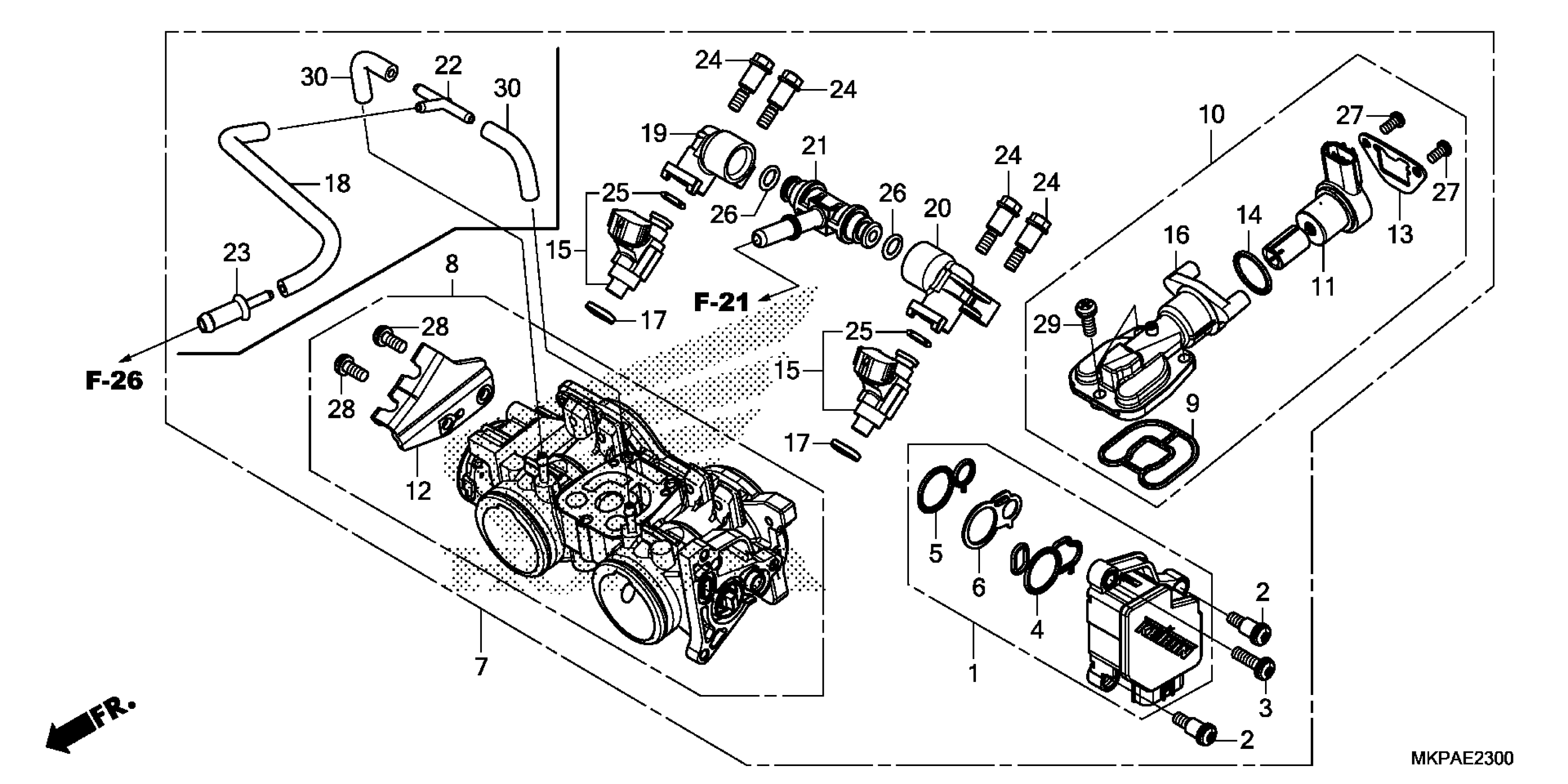

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET

16060-MKG-L01

$84.97

2

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

3

SCREW, TORX (5X17)

16082-KPH-701

$5.43

4

O-RING, SENSOR

16083-MGZ-D01

$2.61

5

O-RING, SENSOR

16084-MGZ-D01

$2.61

6

PLATE

16085-MGZ-D01

$2.43

7

BODY ASSY., THROTTLE (GQB7A A)

16400-MKP-T02

$765.23

8

BODY SET

16410-MKP-T01

$437.23

9

O-RING, AIR INJECTION CONTROL VALVE

16428-MGZ-D01

$25.16

10

VALVE SET, IDLE AIR CONTROL

16430-MJW-J01

$235.93

11

MOTOR ASSY.

16431-MJP-G51

$74.82

12

STAY, WIRE

16432-MGZ-D01

$40.08

13

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

14

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

15

INJECTOR ASSY., FUEL

16450-MKP-T02

$72.13

16

BODY, IDLE AIR CONTROL VALVE

16451-MGZ-D01

$179.23

17

SEAL RING, INJECTOR

16472-MKP-T00

$32.62

18

TUBE, PURGE

16482-MGZ-A01

$236.10

19

PIPE, FUEL (A)

16610-MKP-T01

$25.15

20

PIPE, FUEL (B)

16620-MKP-T01

$25.15

21

T-JOINT, FUEL

16630-MFJ-D00

$22.13

22

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

23

JOINT, TUBE

19126-KM1-010

$3.90

24

BOLT, SHOULDER

90021-MGZ-D02

$2.90

25

O-RING

91301-MKP-T01

$12.84

26

O-RING (7.47X3.6)

91301-PLC-000

$3.11

27

SCREW, PAN (4X8)

93500-04008-0H

$1.49

27

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

28

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

28

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

29

SCREW-WASHER (5X14)

93892-05014-08

$1.49

29

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

30

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
