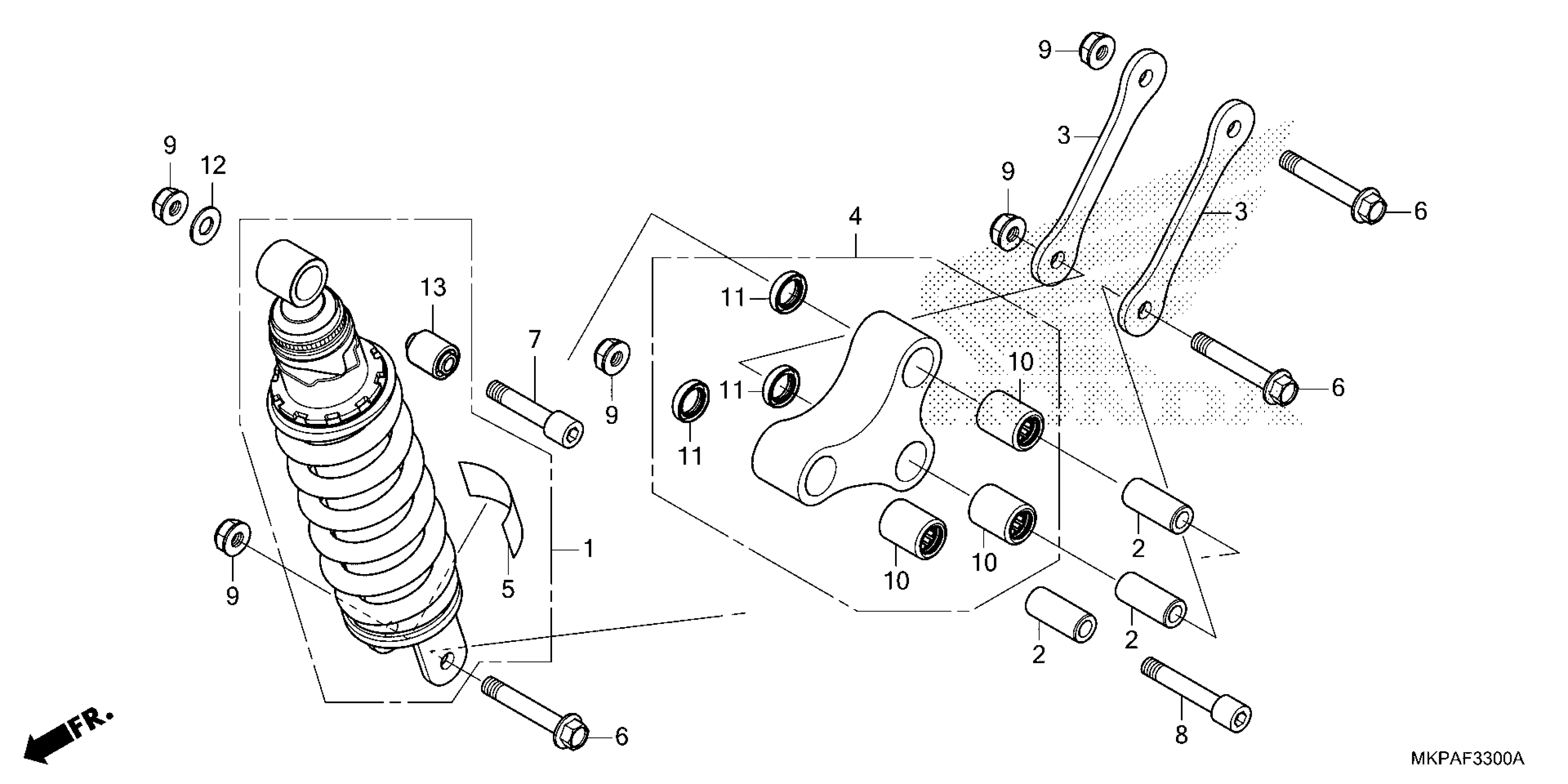

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR.

52400-MKP-AN1

$315.08

COLLAR, CUSHION CONNECTING ROD

52463-MGZ-J00

$5.33

PLATE, CUSHION CONNECTING ROD

52471-MKP-J00

$5.23

ARM SUB-ASSY., CUSHION

52465-MKP-J00

$138.52

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, FLANGE (10X62)

90121-MGZ-J00

$1.87

BOLT, SOCKET (10X48)

90122-MGZ-J00

$4.22

BOLT, SOCKET (10X58)

90123-MGZ-J00

$5.13

NUT, U (10MM)

90304-KGH-901

$3.25

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.78

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.89

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12
