Description

Price

1

RADIATOR

19010-MKP-AN1

$127.83

2

NUT, SETTING (6MM)

19014-KEA-003

$2.88

3

SHROUD

19015-MGZ-J01

$12.41

4

SCREW, PAN (4X8.5)

19016-KEA-003

$1.48

5

FAN, COOLING (TOYO)

19020-MGS-D31

$35.62

6

CAP, RADIATOR (TOYO)

19037-KZZ-D11

$24.00

7

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

8

MOTOR ASSY., FAN

19080-MKP-A01

$96.30

9

TANK, RADIATOR RESERVE

19101-MGZ-J00

$8.49

10

TUBE, RESERVE TANK

19102-MJW-J00

$9.97

11

CAP, RESERVE TANK

19109-KBP-900

$1.45

12

RUBBER, HEAT GUARD

19126-MKP-J00

$10.33

13

RUBBER, RR. HEAT GUARD

19127-MKP-J00

$16.04

14

HOSE, RADIATOR

19501-MKP-DN0

$30.39

15

HOSE, RADIATOR (LOWER)

19502-MGZ-J00

$18.93

16

CLIP, WATER HOSE (D27)

19531-MJW-J00

$1.71

17

CLIP, WATER HOSE (D30)

19533-MJW-J00

$2.29

18

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.73

19

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

20

BOLT-WASHER (6X16)

90120-KCR-003

$4.09

21

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

22

NUT, FLANGE (3MM)

90315-MFL-003

$2.12

23

SCREW, TAPPING (3X6)

93901-22020

$0.83

24

CLIP, TUBE (B10)

95002-02100

$1.72

25

CLIP, TUBE (C9)

95002-50000

$1.14

26

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$18.72

27

BOLT, FLANGE (6X22)

95701-06022-07

$0.86

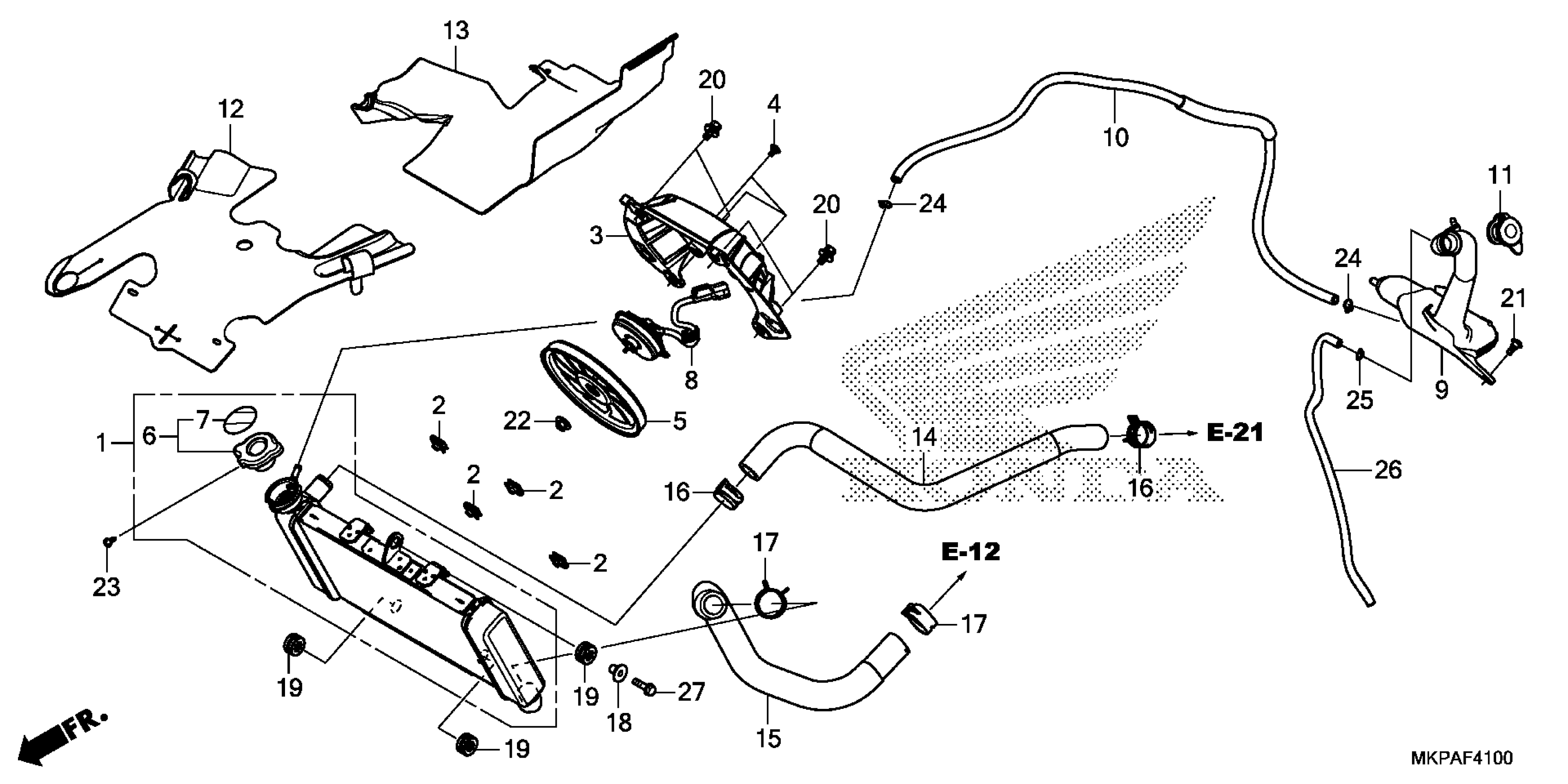

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 RADIATOR Diagram
