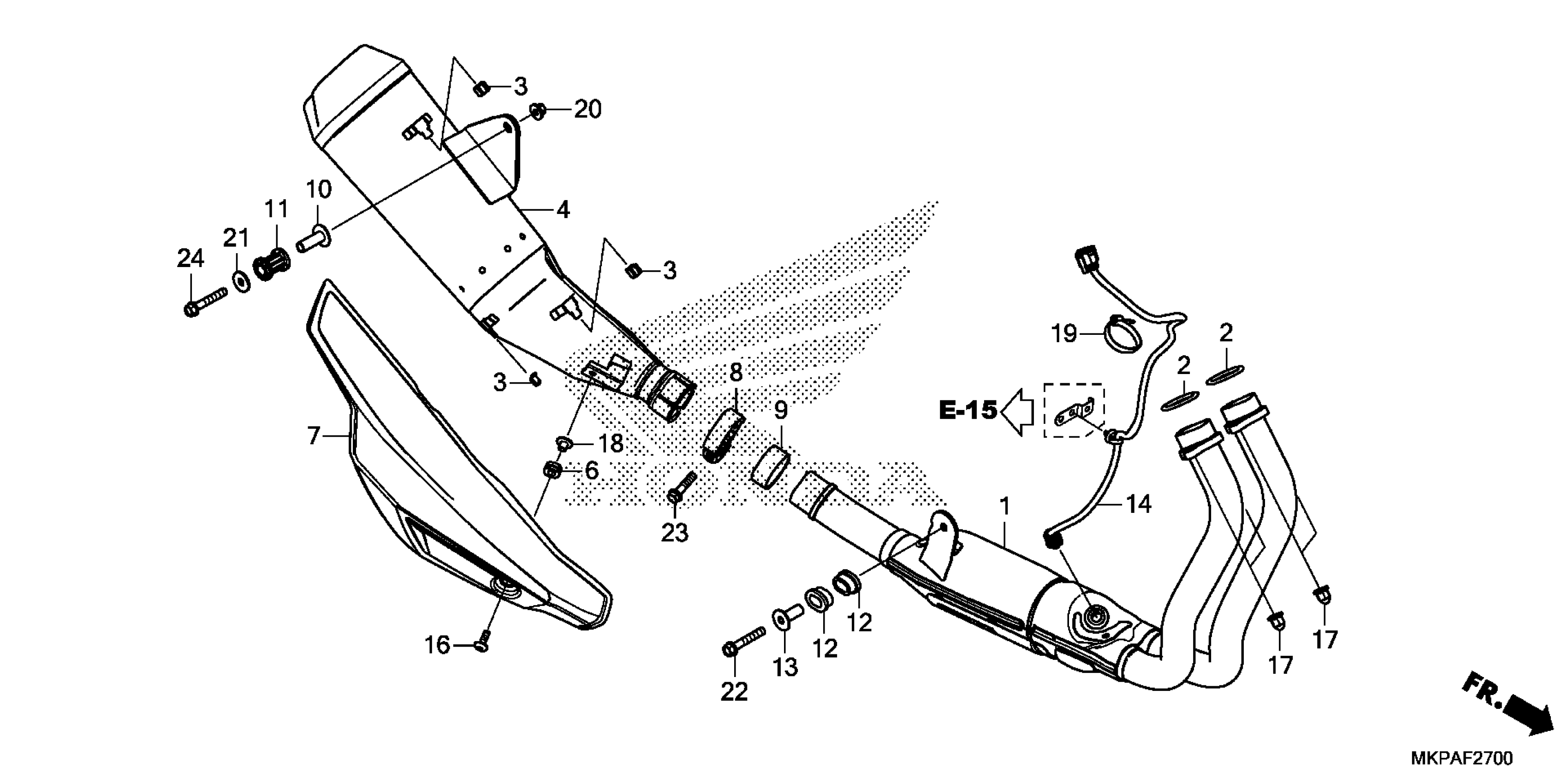

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MKP-AN0

$1,671.92

2

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

RUBBER, PROTECTOR

18293-MN0-000

$2.13

4

MUFFLER COMP This part replaces 18310-MKP-DN0.

18310-MKP-DN1

$311.89

6

RUBBER A, PROTECTOR

18320-196-000

$2.67

7

COVER, MUFFLER

18350-MJW-J00

$106.38

8

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$36.70

9

GASKET, MUFFLER

18391-MJW-J01

$11.09

10

COLLAR, MUFFLER MOUNTING

18420-MGZ-J00

$5.16

11

RUBBER, MUFFLER MOUNTING

18421-MGZ-J00

$1.92

12

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$9.09

13

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$5.10

14

SENSOR, AIR FUEL RATIO

36533-MKP-D01

$164.84

16

SCREW, PAN (6X20)

90118-MGZ-J00

$1.49

17

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

18

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

19

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

20

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

21

WASHER, PLAIN (8MM)

94103-08000

$1.49

22

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

23

BOLT, FLANGE (8X35)

96400-08035-04

$1.49

24

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

24

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.98
