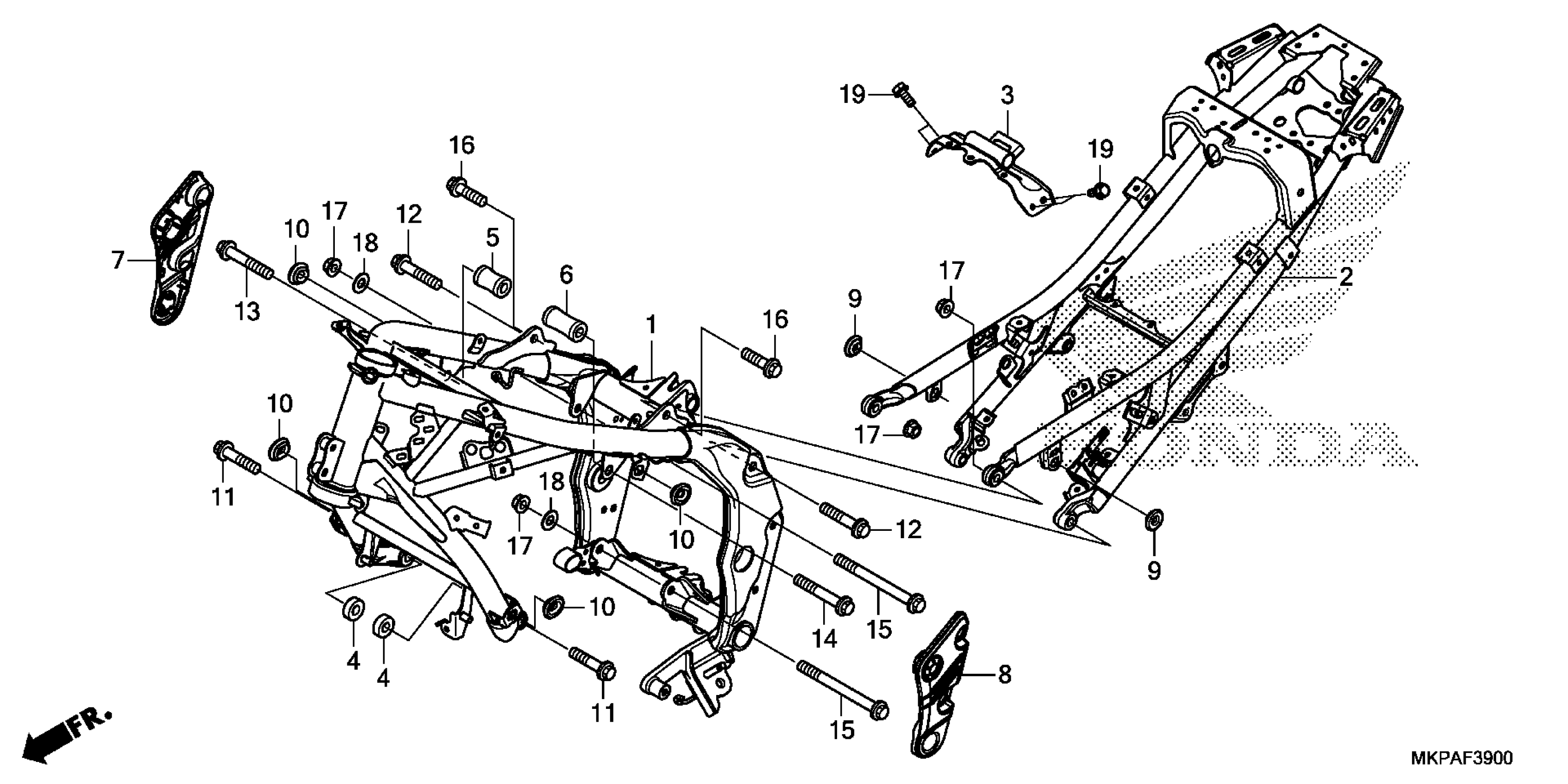

Honda CBR500RAAC (23) MOTORCYCLE, THA, VIN# MLHPC625-P5400001 FRAME Diagram

FRAME *NH303M* (MAT AXIS GRAY METALLIC)

50100-MKP-J00ZA

$520.26

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)

50240-MKP-J00ZA

$346.01

BRACKET, FUEL TANK

50295-MGZ-J00

$11.16

COLLAR A, ENGINE HANGER

50351-MGZ-J01

$3.92

COLLAR B, R. ENGINE HANGER

50353-MGZ-J00

$6.72

COLLAR B, L. ENGINE HANGER

50354-MGZ-J00

$7.71

COVER, R. PIVOT

50401-MJW-J00

$5.61

COVER, L. PIVOT

50451-MJW-J00

$5.61

GROMMET, SIDE COVER

83551-376-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

BOLT, FLANGE (10X40)

90101-MKP-DN0

$1.23

BOLT, FLANGE (10X52)

90110-MKP-DN0

$1.74

BOLT, FLANGE (10X65)

90166-GHB-760

$1.59

BOLT, FLANGE (10X75)

90166-GHB-780

$1.74

BOLT, FLANGE (10X146)

90104-KYJ-900

$2.93

BOLT, FLANGE (10X35)

90168-S2A-010

$4.57

NUT, FLANGE (10MM)

94050-10000

$1.41

WASHER, PLAIN (10.5X22X1.6)

94101-10800

$1.71

BOLT, FLANGE (6X14)

95701-06014-08

$1.48
