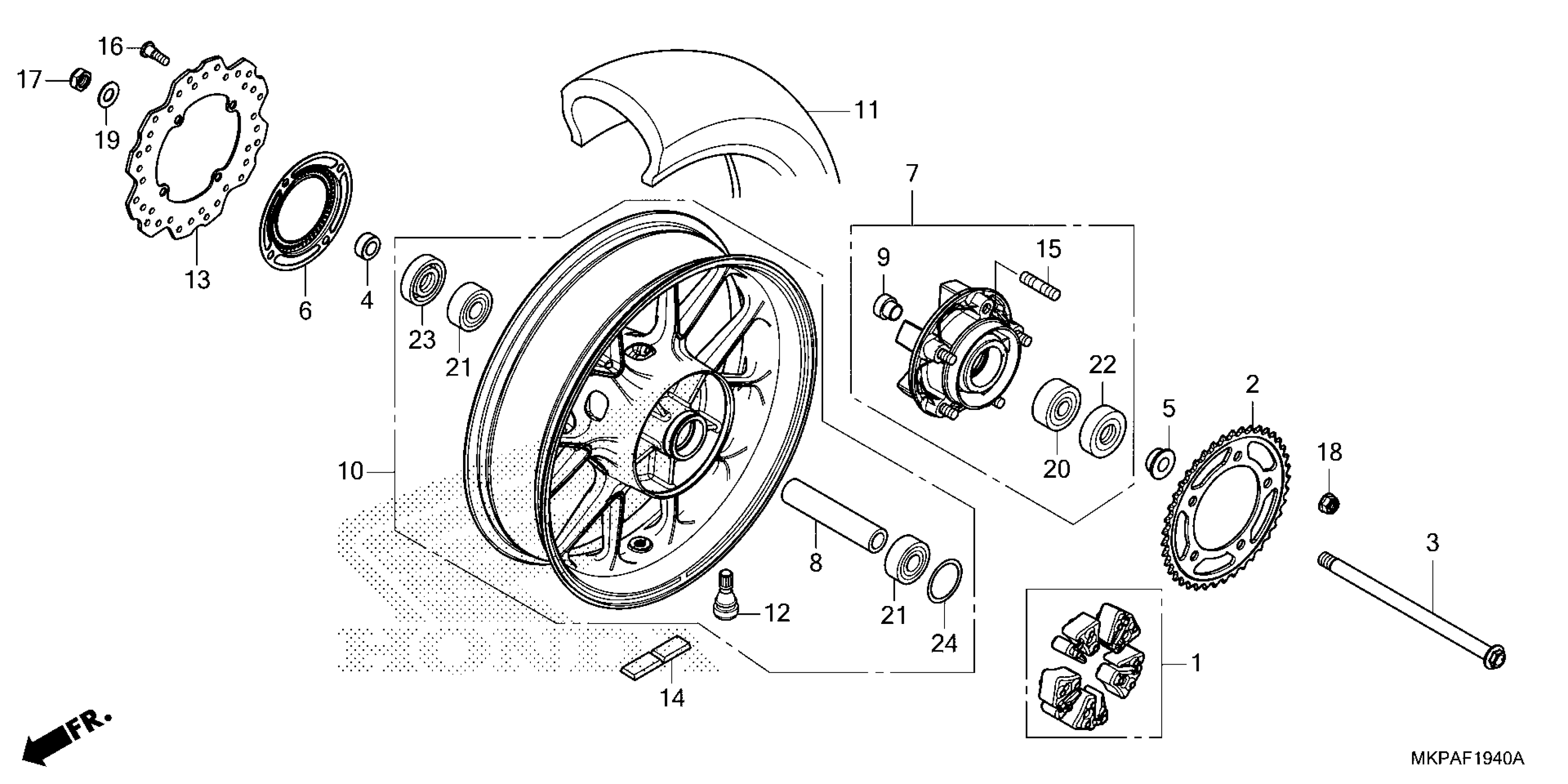

Honda CBR500RAAC (22) MOTORCYCLE, THA, VIN# MLHPC625-N5300001 TO MLHPC625-N5399999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$59.16

2

SPROCKET (41T)

41201-MKP-DN0

$33.96

3

AXLE, RR. WHEEL

42301-MKP-J00

$11.31

4

COLLAR, RR. BRAKE SIDE

42312-MGZ-J00

$13.61

5

COLLAR, L. RR. WHEEL SIDE

42313-MKP-J80

$14.93

6

RING, RR. PULSER

42515-MKN-D50

$49.28

7

FLANGE SUB-ASSY.

42615-MKP-DN0

$261.39

8

COLLAR, RR. AXLE DISTANCE

42620-MKP-J80

$11.82

9

COLLAR B, RR. AXLE DISTANCE

42625-K87-A00

$5.54

10

WHEEL SUB (TYPE3)

42650-MKP-DN0ZA

$390.39

10

WHEEL SUB (TYPE1)

42650-MKP-DN0ZC

$390.39

11

TIRE, RR. (160/60ZR17 M/C 69W) (MICHELIN)

42711-MKP-J01

$256.70

11

TIRE, RR. (160/60ZR17 M/C 69W) (MICHELIN) This part replaces 42711-MKP-J04.

42711-MKP-J01

$256.70

12

VALVE, RIM (IRC)

42753-GM9-743

$8.68

13

DISK, RR. BRAKE

43251-MKP-DN1

$97.40

14

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.24

14

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.86

14

WEIGHT, BALANCE (20G)

44723-MGH-H21

$4.18

15

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

16

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.97

17

NUT, U (16MM)

90305-GW2-711

$16.36

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.64

19

WASHER, PLAIN (16.4X32X2)

90501-K87-A00

$1.54

20

BEARING (6204UU)

91053-MKP-DN1

$14.37

21

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$38.32

22

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

22

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

23

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

23

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

24

O-RING (55X2)

91351-MGS-D30

$2.92
