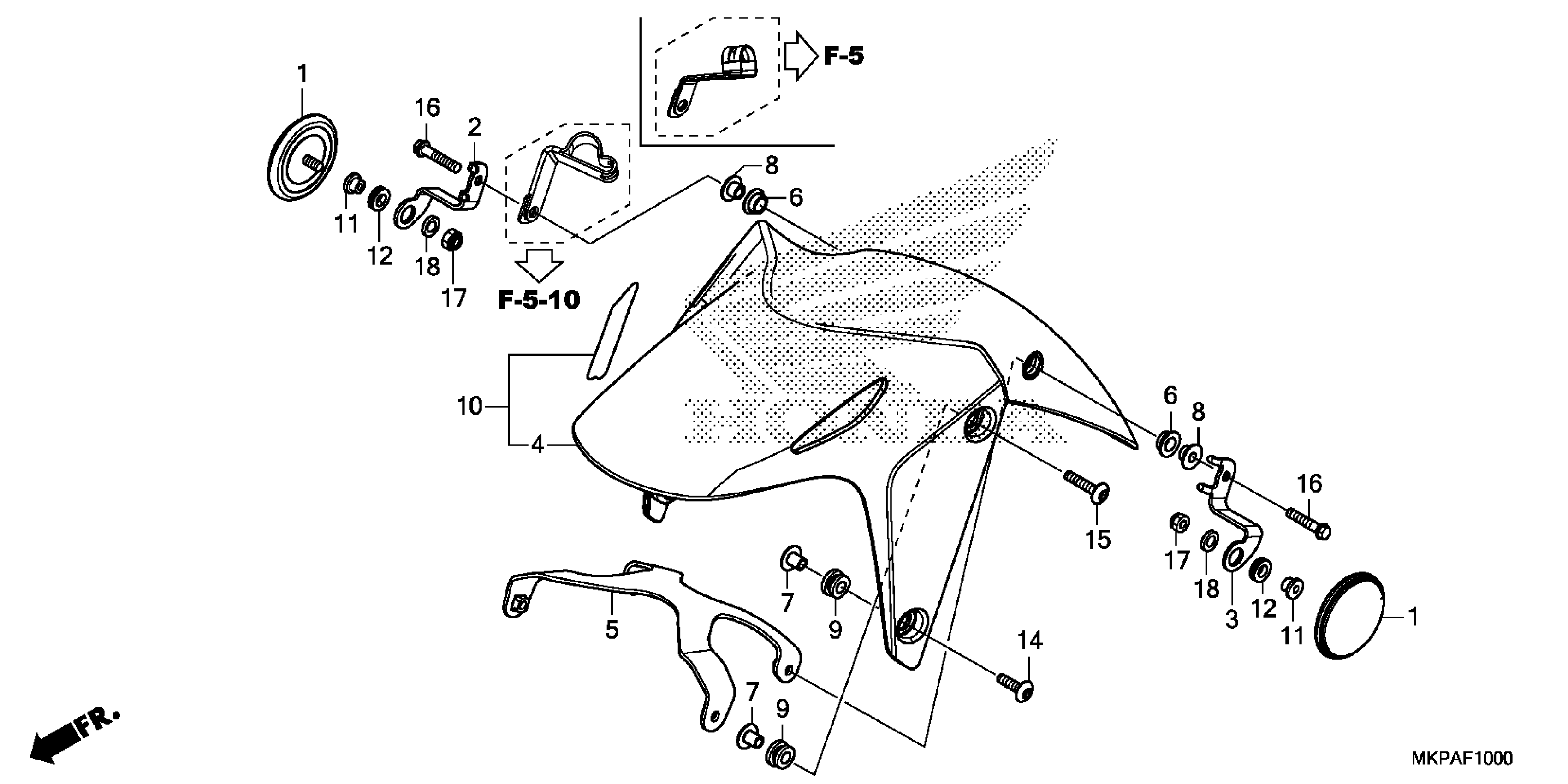

Honda CBR500RAAC (21) MOTORCYCLE, THA, VIN# MLHPC625-M5200001 TO MLHPC625-M5299999 FRONT FENDER (1) Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.33

STAY, R. FR. SIDE REFLECTOR

60114-MGZ-A00

Unavailable

STAY, L. FR. SIDE REFLECTOR

60115-MGZ-A00

$3.44

BRACE, FR. FENDER

61102-MGZ-J00

$15.03

RUBBER, FR. FENDER MOUNTING

61103-KPF-910

$1.28

COLLAR A, FR. FENDER

61103-KRY-900

Unavailable

COLLAR, FR. FENDER MOUNTING

61105-KPF-910

$1.15

RUBBER, FR. FENDER MOUNTING

61105-KRY-900

$0.94

FENDER SET, FR. (TYPE2) (WL)

61110-MKP-J00ZD

$56.15

FENDER SET, FR. (TYPE3) (WL)

61110-MKP-J00ZC

$58.06

COLLAR, SEAT SETTING

77103-MEE-000

$2.51

RUBBER, RR. COWL MOUNTING (FR.) (FOR FR.)

80123-MER-D00

$1.87

SCREW, PAN (6X22)

90130-KYJ-900

$0.76

SCREW, PAN (6X30)

90130-MGZ-J00

$0.85

BOLT, FLANGE (6X30)

90131-MGZ-J00

$0.76

NUT, U (6MM)

90301-782-000

$1.50

WASHER, PLAIN (6MM)

94101-06700

$0.87
