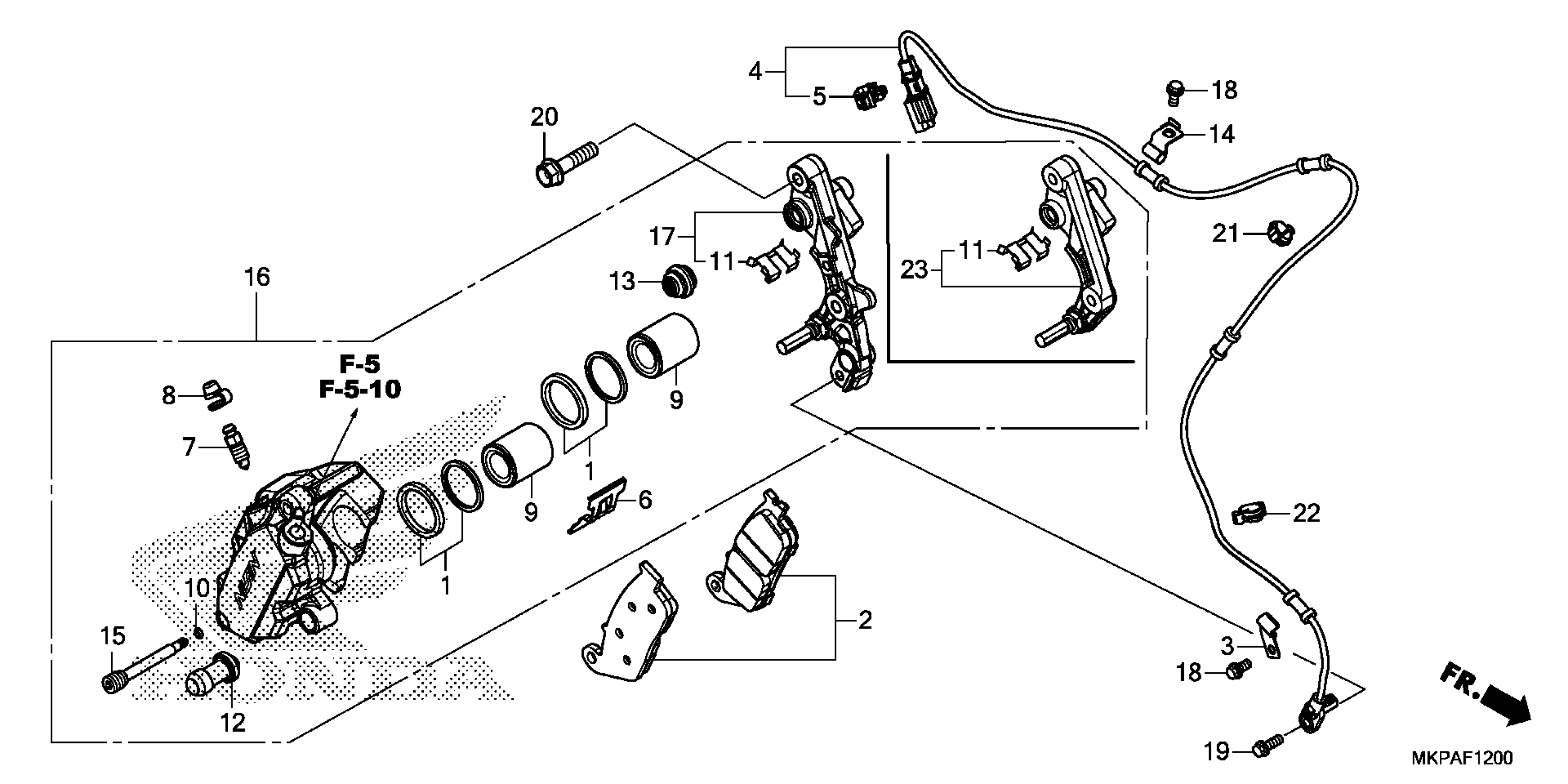

Honda CBR500RAAC (21) MOTORCYCLE, THA, VIN# MLHPC625-M5200001 TO MLHPC625-M5299999 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR.

06455-MGS-D32

$46.05

CLAMP, SENSOR WIRE

38517-MKA-D80

$0.97

SENSOR, FR. WHEEL SPEED

38520-MJW-J11

$31.96

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$2.69

SPRING, PAD

43108-MCT-006

$4.69

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (NISSIN)

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-MS9-611

$5.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CLAMP, SENSOR CORD

45159-MGZ-J00

$1.26

PIN, HANGER

45215-MAJ-G41

$6.15

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MKA-D81

$291.25

BRACKET SUB-ASSY., R. FR. (NISSIN)

45290-MKA-D81

$82.35

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

BOLT, FLANGE (6X16)

90116-MKA-D80

$1.99

BOLT, FLANGE (8X32)

90131-KZZ-900

$0.76

CLIP, CABLE (14MM)

90690-MCA-003

$1.63

CLIP, CABLE (10MM)

90690-MJE-D11

$2.04
