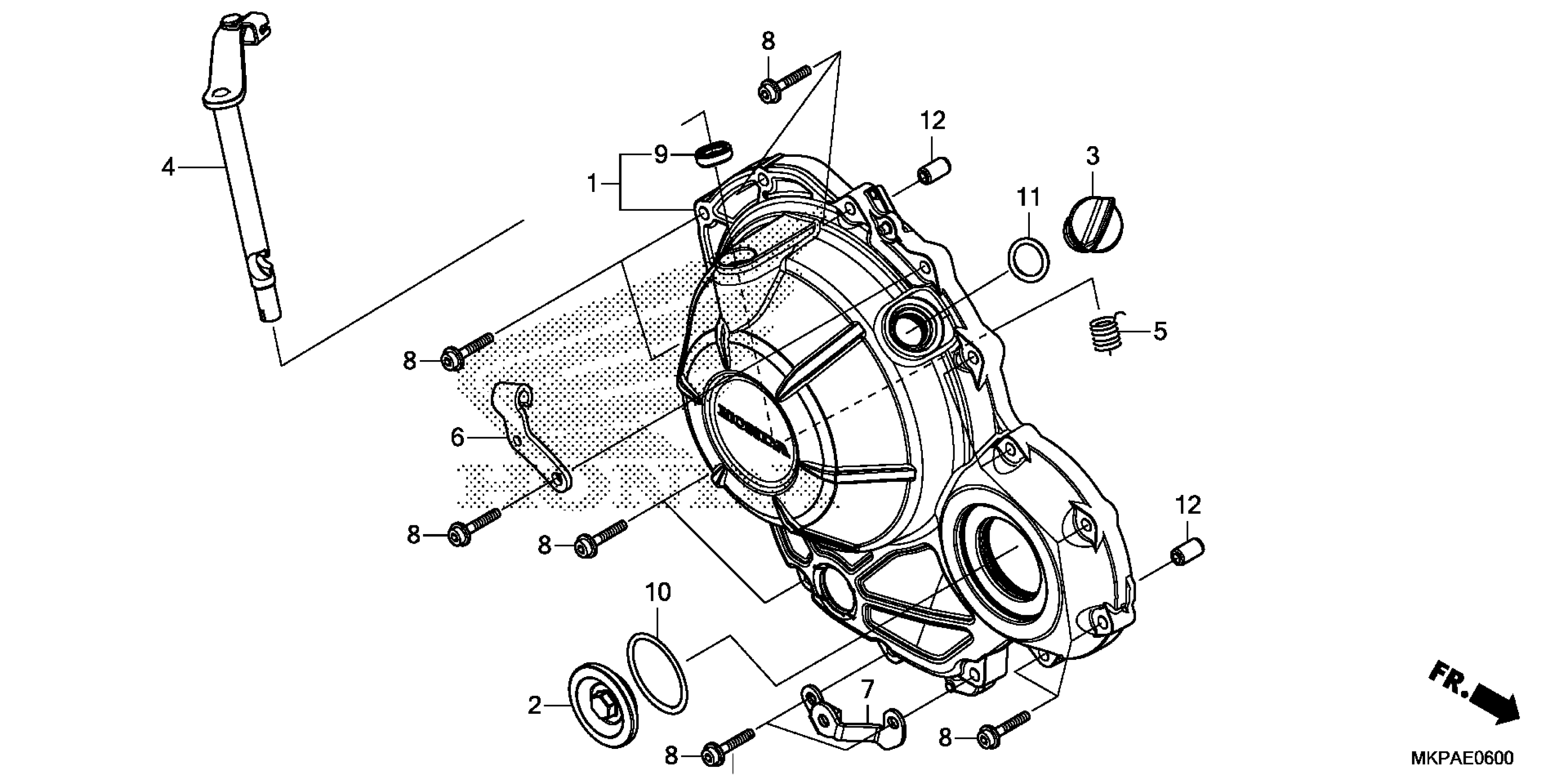

Honda CBR500RAAC (20) MOTORCYCLE, THA, VIN# MLHPC625-L5100001 TO MLHPC625-L5199999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MKP-D00

$77.62

CAP (45MM)

11332-MJW-J00

$13.17

CAP, OIL FILLER

15611-KA4-710

$13.22

LEVER, CLUTCH

22810-MKP-D00

$30.69

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.01

RECEIVER, CLUTCH CABLE

22821-MKP-D00

$5.09

STAY, R. RR. COWL (LOWER)

64316-MGZ-J00

$1.19

BOLT, FLANGE SOCKET (6X28)

90003-MGZ-J00

$0.60

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

O-RING (18X3)

91307-035-000

$2.75

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
