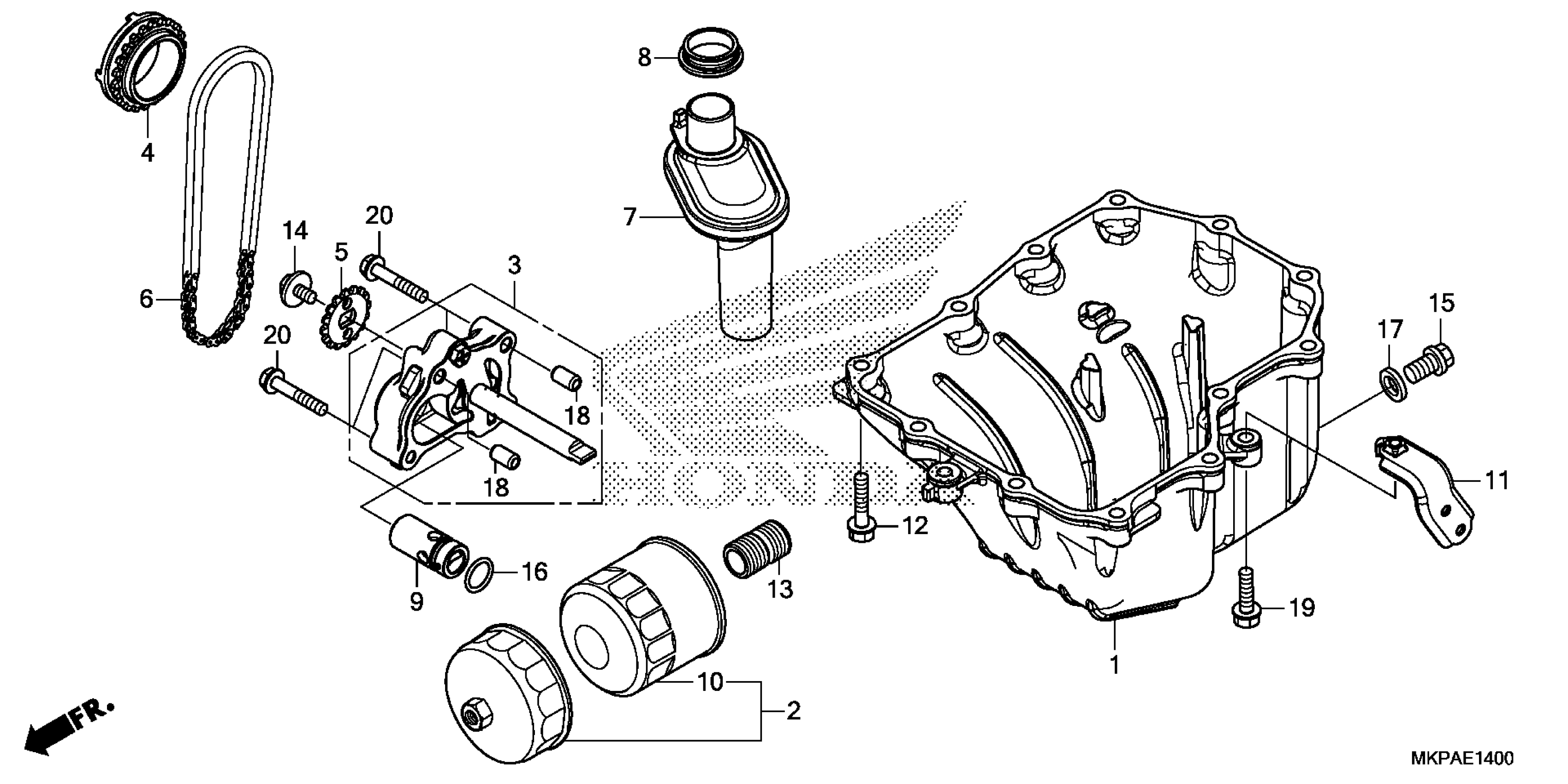

Honda CBR500RAAC (20) MOTORCYCLE, THA, VIN# MLHPC625-L5100001 TO MLHPC625-L5199999 OIL PAN@OIL PUMP Diagram

PAN, OIL

11210-MJW-J00

$68.30

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$18.15

FILTER SET, OIL | (Optional).

15010-MKR-305

$18.15

PUMP ASSY., OIL

15100-MGZ-J00

$84.03

SPROCKET, OIL PUMP DRIVE (22T)

15131-MKP-D01

$33.87

SPROCKET, OIL PUMP DRIVEN (16T)

15134-MGZ-J00

$12.74

CHAIN, OIL PUMP (DID 25HT2-56LE)

15141-MKP-D01

$12.59

STRAINER, OIL

15150-MGZ-J00

$12.16

GASKET, OIL STRAINER

15154-MAT-000

$5.87

VALVE ASSY., RELIEF

15220-MGZ-J00

$36.34

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.16

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$14.16

STAY, L. RR. COWL (LOWER)

64326-MGZ-J00

$4.87

BOLT, FLANGE (6X28)

90010-MGZ-J00

$0.44

BOSS, OIL FILTER

90019-MGZ-J00

$2.09

BOLT-WASHER (6X12)

90021-MGZ-J00

$3.79

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.03

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.03

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.52

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.52

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X35)

95701-06035-00

$1.88
