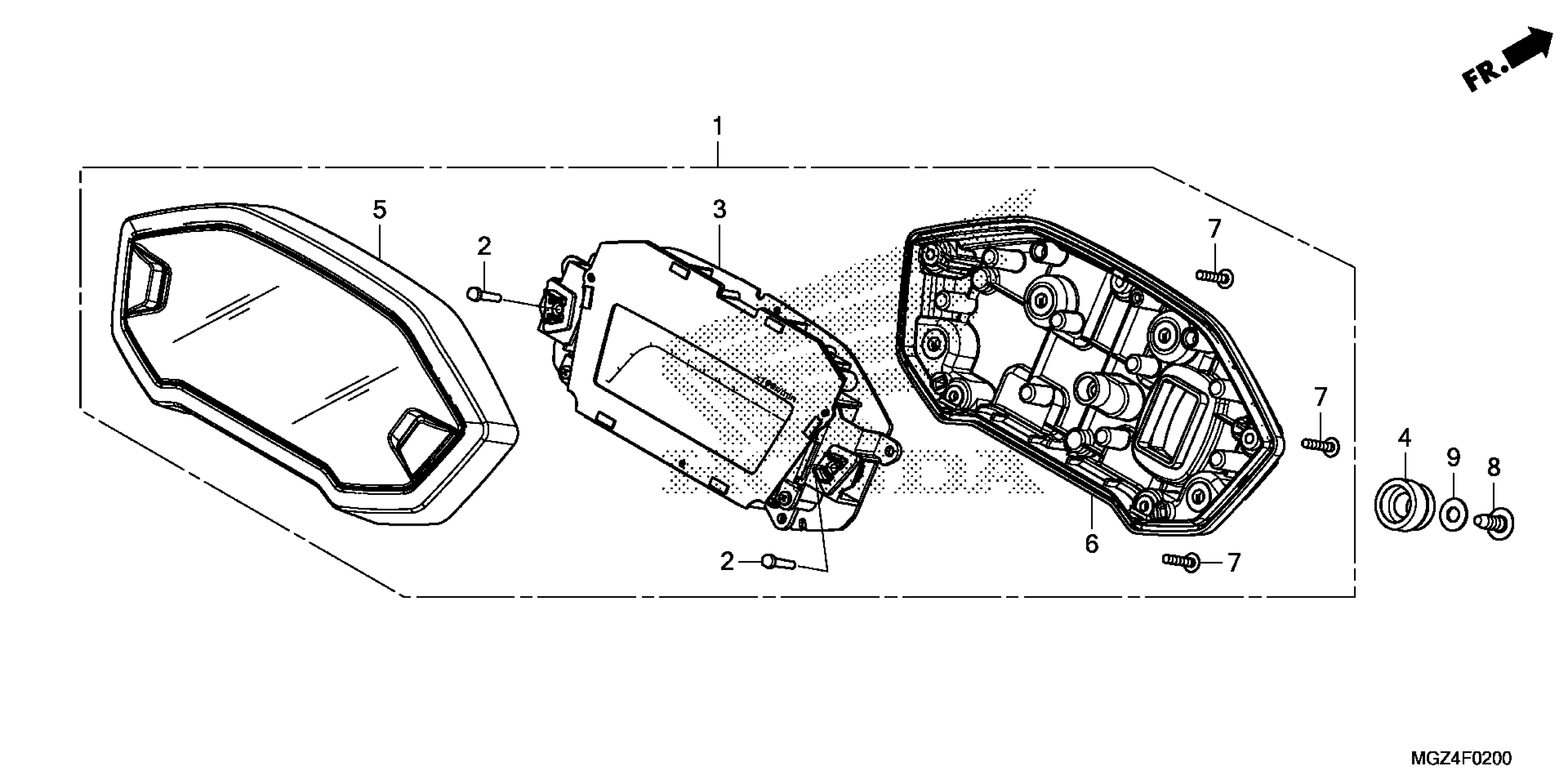

Honda CBR500RAA (14) MOTORCYCLE, THA, VIN# MLHPC445-E5100001 TO MLHPC445-E5199999 SPEEDOMETER Diagram

#

Description
Price

1

METER, COMBINATION This part replaces 37100-MGZ-309.

37100-MGZ-319

Unavailable

1

METER, COMBINATION

37100-MGZ-319

Unavailable

2

KEY, TOP

37104-MGZ-D00

$0.71

3

METER, LCD This part replaces 37130-MGZ-A11.

37130-MGZ-A12

$193.81

3

METER, LCD

37130-MGZ-A12

$193.81

4

RUBBER, METER SETTING

37215-KZZ-900

$1.31

5

CASE ASSY. (UPPER) (COO)

37610-MGZ-306

$30.24

6

CASE ASSY. (LOWER)

37620-MGZ-A01

$32.75

7

SCREW, TAPPING (3X16)

93903-22420

$0.91

8

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.84

9

WASHER, PLAIN (5MM)

94103-05700

$0.87
