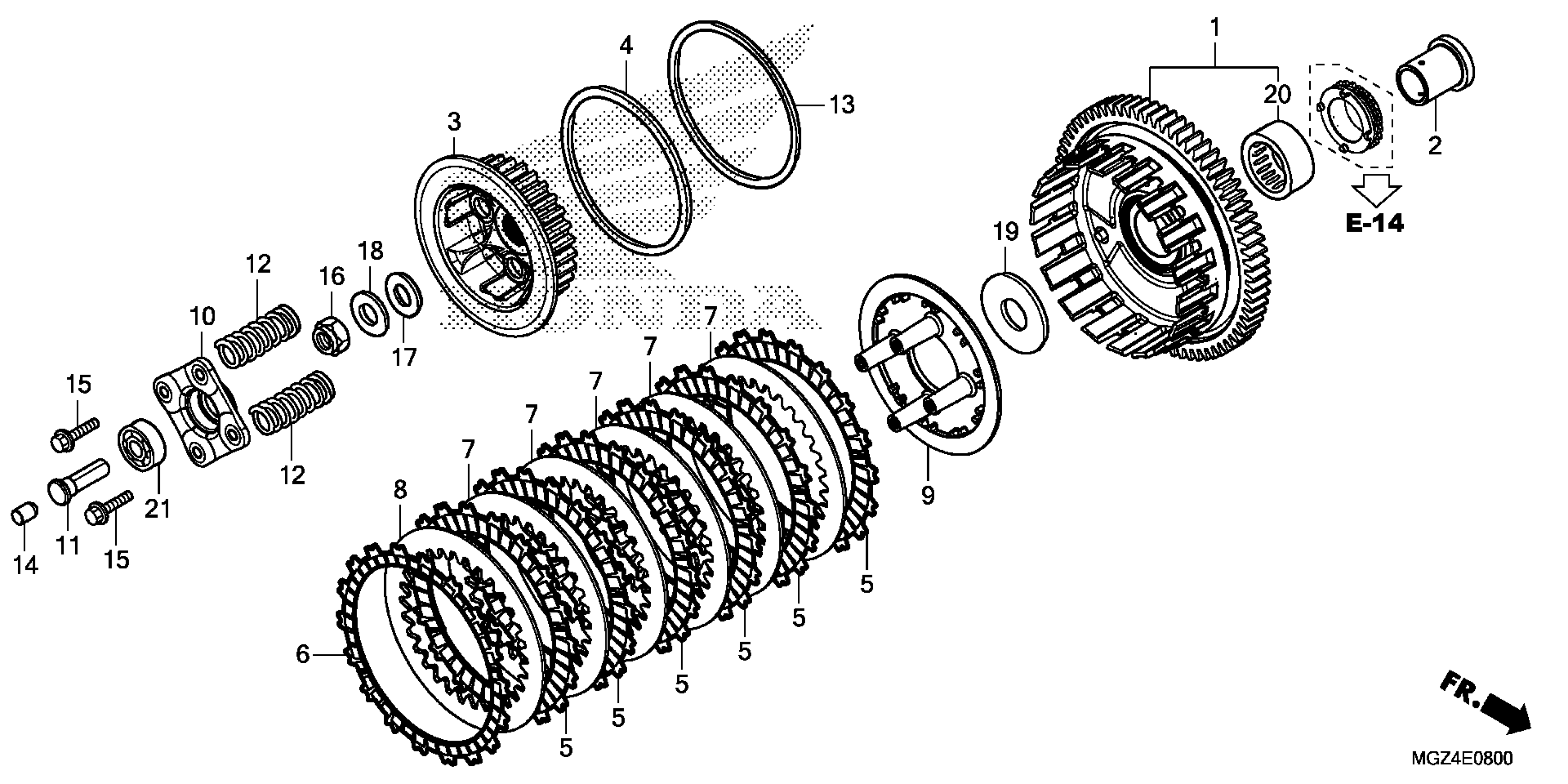

Honda CBR500RAA (14) MOTORCYCLE, THA, VIN# MLHPC445-E5100001 TO MLHPC445-E5199999 CLUTCH Diagram

CLUTCH OUTER (69T)

22100-MGZ-J01

$236.04

GUIDE, CLUTCH (OUTER)

22116-MGZ-J00

$7.96

CENTER, CLUTCH

22120-MGZ-J01

$35.61

SEAT, JUDDER SPRING

22125-KZZ-901

$15.01

DISK, CLUTCH FRICTION

22201-MGZ-J01

$15.09

DISK B, CLUTCH FRICTION

22202-KZZ-901

$16.93

PLATE, CLUTCH

22321-MGZ-J01

$6.04

PLATE B, CLUTCH

22322-MGZ-J01

$7.03

PLATE, CLUTCH PRESSURE

22350-MGZ-J01

$21.54

PLATE, CLUTCH LIFTER

22361-MGZ-J00

$15.25

ROD, CLUTCH CENTER

22366-MGZ-J00

$7.55

SPRING, CLUTCH

22401-MM9-000

$3.55

SPRING, JUDDER

22402-KZZ-902

$16.48

ROD, CLUTCH LIFTER

22847-MFF-D00

$6.13

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.80

NUT, LOCK (18MM)

90236-MGZ-J00

$2.80

WASHER (18MM)

90401-MZ8-B40

$2.30

WASHER, LOCK

90432-428-000

$7.05

WASHER, THRUST (22MM)

90452-MGZ-J01

$2.71

BEARING, NEEDLE (28X35X16) (NTN)

91021-MGZ-J01

$10.70

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
