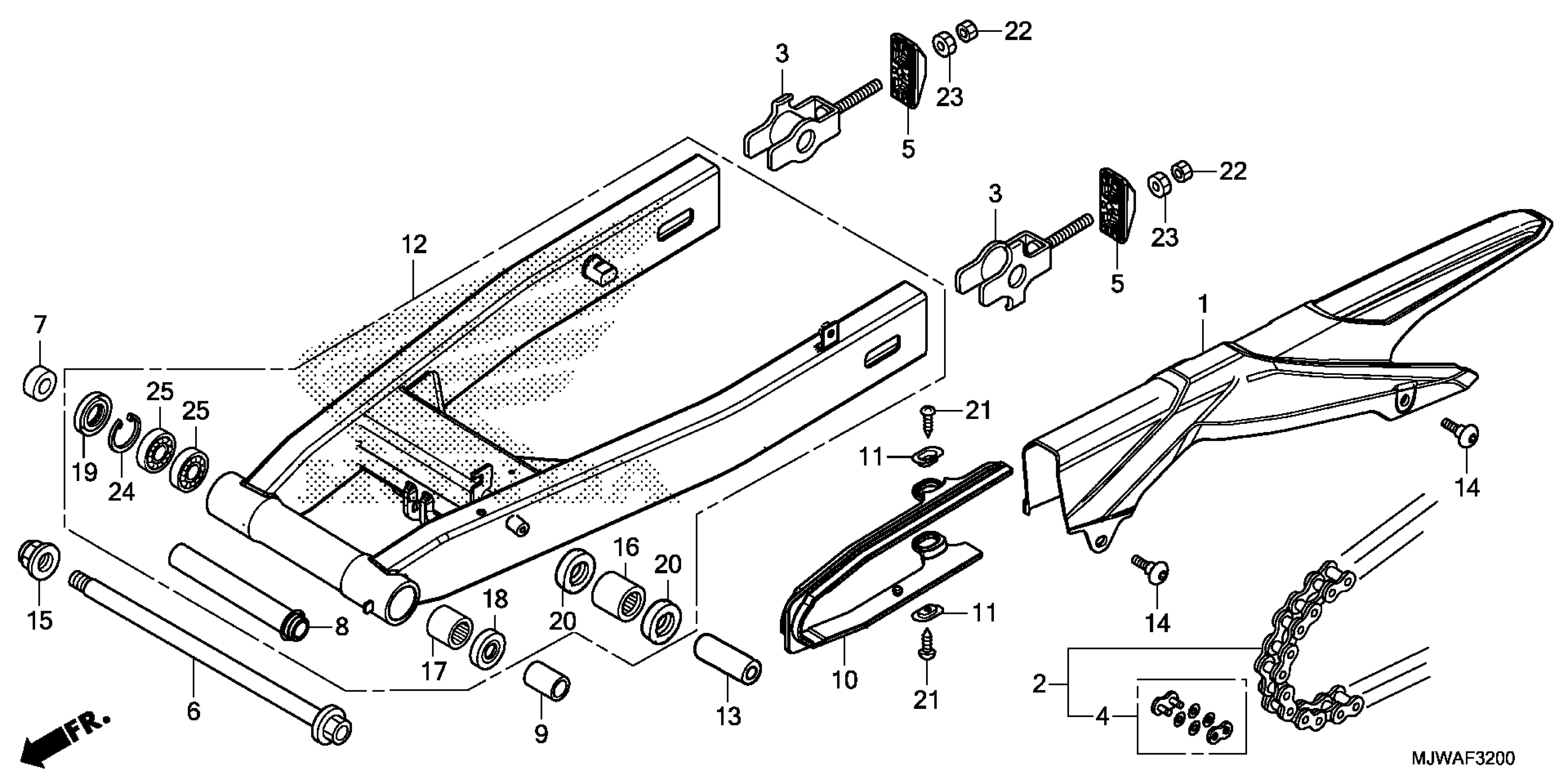

Honda CBR500RA2AC (18) MOTORCYCLE, THA, VIN# MLHPC440-J5500001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MJW-J00

$24.84

2

CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MGS-D31

$231.23

3

ADJUSTER, CHAIN

40543-MJW-J00

$13.26

4

MASTER LINK (DAIDO)

40545-MGS-D31

$13.43

5

CAP, SWINGARM END

40546-MGZ-J00

$15.50

6

BOLT, SWINGARM PIVOT

52101-MGZ-J00

$17.15

7

COLLAR B, RR. SWINGARM PIVOT

52105-MJ0-000

$5.62

8

COLLAR, CENTER PIVOT DISTANCE

52141-MGZ-J00

$19.20

9

COLLAR, L. PIVOT DISTANCE

52143-MGZ-J00

$16.52

10

SLIDER, CHAIN

52170-MGZ-J00

$18.90

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

12

SWINGARM SUB-ASSY., RR.

52200-MGZ-J00

$661.48

13

COLLAR, CUSHION CONNECTING ROD

52463-MGZ-J00

$5.33

14

SCREW, SPECIAL (6X14)

90115-MGZ-J00

$1.49

15

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$6.05

16

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

17

BEARING, NEEDLE (NTN)

91071-MT7-003

$24.23

18

DUST SEAL (25X33X4)

91202-MAL-601

$6.96

19

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

19

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

20

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

21

SCREW, TAPPING (5X12)

93901-25280

$1.49

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

NUT, HEX. (8MM)

94030-08000

$1.49

24

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

25

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
