Description

Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

2

LOCK SET This part replaces 35010-MJW-A02.

35010-MJW-A04

$214.81

2

LOCK SET This part replaces 35010-MJW-A03.

35010-MJW-A04

$214.81

3

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$151.24

4

BASE, CONTACT

35101-MJW-D11

$40.60

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

6

GUIDE, CABLE

35106-MJW-J00

$12.29

7

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

8

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

9

GUIDE, L. FR. WIRE

35910-MGZ-J00

$2.18

10

HANDLEBAR, R. (COO)

53100-MGZ-305

$50.45

11

WEIGHT, HANDLEBAR

53104-MGZ-J00

$9.65

12

WEIGHT B, HANDLEBAR

53105-MGZ-J00

$8.12

13

RUBBER, HANDLE WEIGHT (B)

53107-KM9-000

$3.73

14

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.90

15

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.47

16

HANDLEBAR, L. (COO)

53150-MGZ-305

$50.45

17

SCREW-WASHER (5X25)

53192-MFL-000

$1.71

18

CAP, STEERING NUT

53232-MJW-J00

$23.00

19

BRIDGE, FORK TOP

53300-MGZ-J00

$86.53

20

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

20

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.71

20

EMBLEM, PRODUCT (SHINKO)

86150-KTJ-C60

$3.69

21

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

22

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.68

23

BOLT, FLANGE (8X35)

90112-MGZ-J00

$0.99

24

SCREW, OVAL (6X50)

90191-KYJ-900

$0.91

25

NUT, STEERING STEM

90304-KGA-900

$2.91

26

WASHER, STEERING STEM

90503-KGA-900

$1.38

27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

28

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

29

BOLT, FLANGE (8X18)

95701-08018-00

$1.66

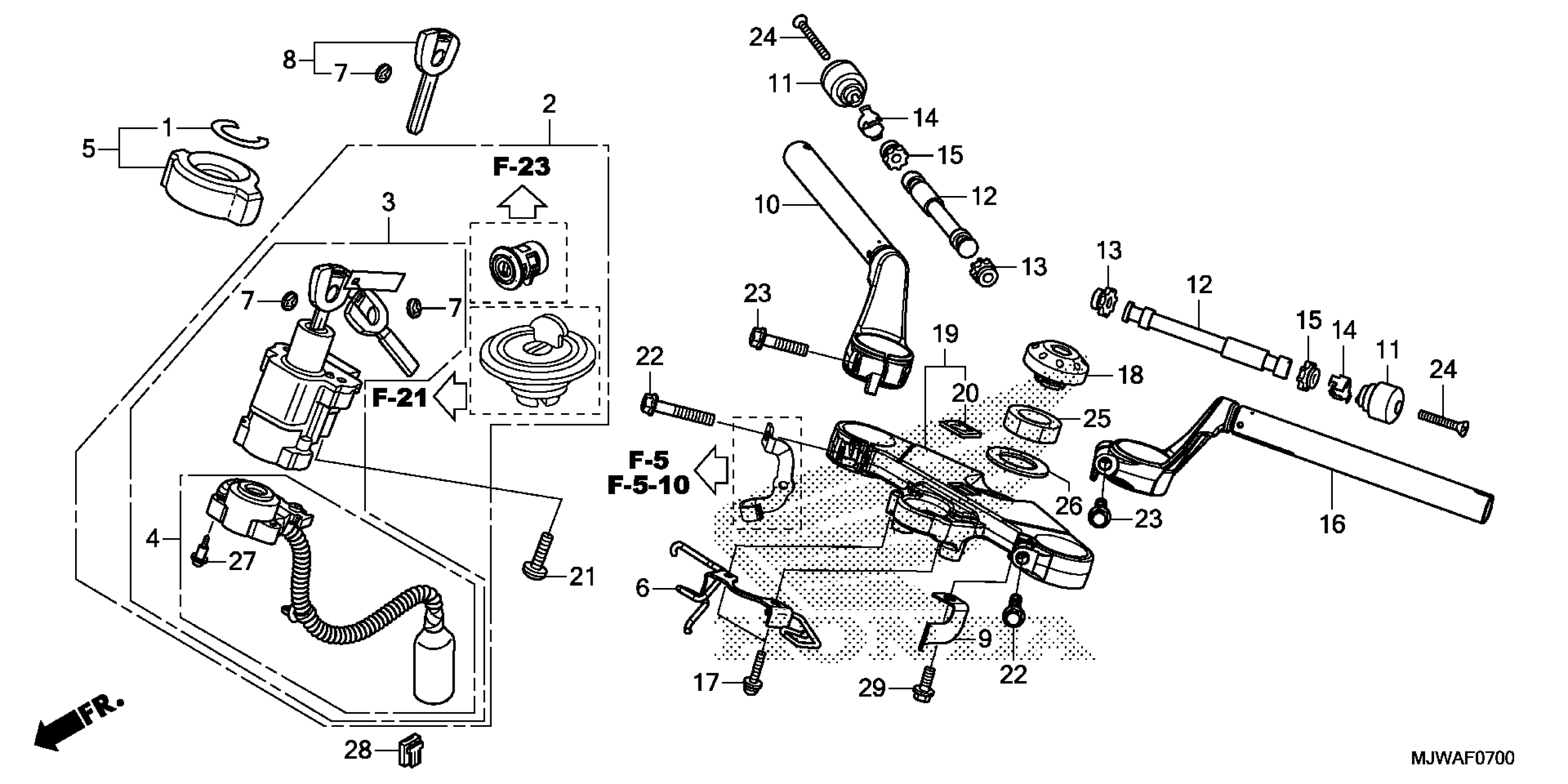

Honda CBR500RA2AC (18) MOTORCYCLE, THA, VIN# MLHPC440-J5500001 HANDLEBAR@TOP BRIDGE Diagram
